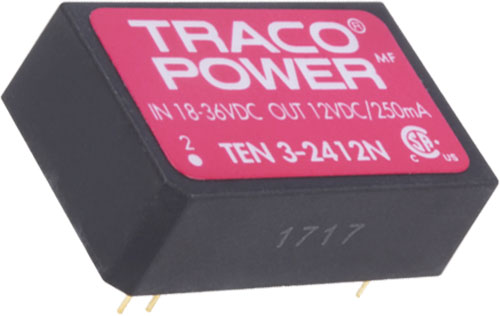

DC/DC converters, TEN...N series
| Manufacturer | TRACO POWER |
| Insulation volt. | 1500V DC |
| Mounting | THT |
| Symbol | Power | Uin | Iout | Uout2 | Iout2 | Efficiency |
|---|---|---|---|---|---|---|
| [W] | [V DC] | [mA] | [V DC] | [mA] | [%] | |
| TEN3-0510N | 3 | 4.5...9 | 750 | - | - | 77 |
| TEN3-0511N | 3 | 4.5...9 | 600 | - | - | 80 |
| TEN3-0512N | 3 | 4.5...9 | 250 | - | - | 82 |
| TEN3-0515N | 3 | 4.5...9 | 125 | - | - | 81 |
| TEN3-0521N | 3 | 4.5...9 | 250 | -5 | 250 | 80 |
| TEN3-0522N | 3 | 4.5...9 | 125 | -12 | 125 | 82 |
| TEN3-0523N | 3 | 4.5...9 | 100 | -15 | 100 | 82 |
| TEN3-1210N | 3 | 9...18 | 750 | - | - | 79 |
| TEN3-1211N | 3 | 9...18 | 600 | - | - | 81 |
| TEN3-1212N | 3 | 9...18 | 250 | - | - | 85 |
| TEN3-1213N | 3 | 9...18 | 200 | - | - | 85 |
| TEN3-1215N | 3 | 9...18 | 125 | - | - | 84 |
| TEN3-1221N | 3 | 9...18 | 250 | -5 | 250 | 80 |
| TEN3-1222N | 3 | 9...18 | 125 | -12 | 125 | 84 |
| TEN3-1223N | 3 | 9...18 | 100 | -15 | 100 | 84 |
| TEN3-2410N | 3 | 18...36 | 750 | - | - | 79 |
| TEN3-2411N | 3 | 18...36 | 600 | - | - | 81 |
| TEN3-2412N | 3 | 18...36 | 250 | - | - | 85 |
| TEN3-2413N | 3 | 18...36 | 200 | - | - | 85 |
| TEN3-2415N | 3 | 18...36 | 125 | - | - | 84 |
| TEN3-2421N | 3 | 18...36 | 250 | -5 | 250 | 80 |
| TEN3-2422N | 3 | 18...36 | 125 | -12 | 125 | 84 |
| TEN3-2423N | 3 | 18...36 | 100 | -15 | 100 | 84 |
| TEN3-4810N | 3 | 36...75 | 750 | - | - | 79 |
| TEN3-4811N | 3 | 36...75 | 600 | - | - | 81 |
| TEN3-4812N | 3 | 36...75 | 250 | - | - | 85 |
| TEN3-4813N | 3 | 36...75 | 200 | - | - | 85 |
| TEN3-4815N | 3 | 36...75 | 125 | - | - | 84 |
| TEN3-4821N | 3 | 36...75 | 250 | -5 | 250 | 80 |
| TEN3-4822N | 3 | 36...75 | 125 | -12 | 125 | 84 |
| TEN3-4823N | 3 | 36...75 | 100 | -15 | 100 | 84 |
| TEN6-1210N | 6 | 9...18 | 1200 | - | - | 75 |
| TEN6-1211N | 6 | 9...18 | 1200 | - | - | 78 |
| TEN6-1212N | 6 | 9...18 | 500 | - | - | 82 |
| TEN6-1213N | 6 | 9...18 | 400 | - | - | 82 |
| TEN6-1215N | 6 | 9...18 | 250 | - | - | 84 |
| TEN6-1221N | 6 | 9...18 | 500 | -5 | 500 | 78 |
| TEN6-1222N | 6 | 9...18 | 250 | -12 | 250 | 82 |
| TEN6-1223N | 6 | 9...18 | 200 | -15 | 200 | 82 |
| TEN6-2410N | 6 | 18...36 | 1200 | - | - | 77 |
| TEN6-2411N | 6 | 18...36 | 1200 | - | - | 80 |
| TEN6-2412N | 6 | 18...36 | 500 | - | - | 84 |
| TEN6-2413N | 6 | 18...36 | 400 | - | - | 84 |
| TEN6-2415N | 6 | 18...36 | 250 | - | - | 84 |
| TEN6-2421N | 6 | 18...36 | 500 | -5 | 500 | 80 |
| TEN6-2422N | 6 | 18...36 | 250 | -12 | 250 | 84 |
| TEN6-2423N | 6 | 18...36 | 200 | -15 | 200 | 84 |
| TEN6-4810N | 6 | 36...75 | 1200 | - | - | 77 |
| TEN6-4811N | 6 | 36...75 | 1200 | - | - | 80 |
| TEN6-4812N | 6 | 36...75 | 500 | - | - | 84 |
| TEN6-4813N | 6 | 36...75 | 400 | - | - | 84 |
| TEN6-4815N | 6 | 36...75 | 250 | - | - | 84 |
| TEN6-4821N | 6 | 36...75 | 500 | -5 | 500 | 80 |
| TEN6-4822N | 6 | 36...75 | 250 | -12 | 250 | 84 |
| TEN6-4823N | 6 | 36...75 | 200 | -15 | 200 | 84 |
| TEN40-1210N | 40 | 9...18 | 8000 | - | - | 89 |
| TEN40-1211N | 40 | 9...18 | 8000 | - | - | 89 |
| TEN40-1212N | 40 | 9...18 | 3330 | - | - | 89 |
| TEN40-1213N | 40 | 9...18 | 2670 | - | - | 90 |
| TEN40-1215N | 40 | 9...18 | 1670 | - | - | 91 |
| TEN40-1222N | 40 | 9...18 | 1670 | -12 | 1670 | 88 |
| TEN40-1223N | 40 | 9...18 | 1330 | -15 | 1330 | 88 |
| TEN40-2410N | 40 | 18...36 | 8000 | - | - | 90 |
| TEN40-2411N | 40 | 18...36 | 8000 | - | - | 91 |
| TEN40-2412N | 40 | 18...36 | 3330 | - | - | 91 |
| TEN40-2413N | 40 | 18...36 | 2670 | - | - | 91 |
| TEN40-2415N | 40 | 18...36 | 1670 | - | - | 91 |
| TEN40-2422N | 40 | 18...36 | 1670 | -12 | 1670 | 89 |
| TEN40-2423N | 40 | 18...36 | 1330 | -15 | 1330 | 89 |
| TEN40-4810N | 40 | 36...75 | 8000 | - | - | 90 |
| TEN40-4811N | 40 | 36...75 | 8000 | - | - | 91 |
| TEN40-4812N | 40 | 36...75 | 3330 | - | - | 92 |
| TEN40-4813N | 40 | 36...75 | 2670 | - | - | 92 |
| TEN40-4815N | 40 | 36...75 | 1670 | - | - | 91 |
| TEN40-4822N | 40 | 36...75 | 1670 | -12 | 1670 | 89 |
| TEN40-4823N | 40 | 36...75 | 1330 | -15 | 1330 | 89 |
| TEN60-1213N | 60 | 9...18 | 4000 | - | - | 91 |
| TEN60-1215N | 60 | 9...18 | 2500 | - | - | 91 |
| TEN60-1222N | 60 | 9...18 | 2500 | -12 | 2500 | 90 |
| TEN60-1223N | 60 | 9...18 | 2000 | -15 | 2000 | 90 |
| TEN60-1225N | 60 | 9...18 | 1250 | -24 | 1250 | 91 |
| TEN60-2411N | 60 | 18...36 | 12000 | - | - | 92 |
| TEN60-2412N | 60 | 18...36 | 5000 | - | - | 92 |
| TEN60-2413N | 60 | 18...36 | 4000 | - | - | 92 |
| TEN60-2415N | 60 | 18...36 | 2500 | - | - | 92 |
| TEN60-2422N | 60 | 18...36 | 2500 | -12 | 2500 | 90 |
| TEN60-2423N | 60 | 18...36 | 2000 | -15 | 2000 | 90 |
| TEN60-2425N | 60 | 18...36 | 1250 | -24 | 1250 | 91 |
| TEN60-4811N | 60 | 36...75 | 12000 | - | - | 92 |
| TEN60-4812N | 60 | 36...75 | 5000 | - | - | 92 |
| TEN60-4813N | 60 | 36...75 | 4000 | - | - | 92 |
| TEN60-4815N | 60 | 36...75 | 2500 | - | - | 92 |
| TEN60-4822N | 60 | 36...75 | 2500 | -12 | 2500 | 91 |
| TEN60-4823N | 60 | 36...75 | 2000 | -15 | 2000 | 91 |
| TEN60-4825N | 60 | 36...75 | 1250 | -24 | 1250 | 91 |
Case:
- 2"x1" (TEN40-xxxN, TEN60-xxxN)
- DIP24 (TEN3-xxxN, TEN6-xxxN)
Operating temperature:
- -40...80°C (TEN40-xxxN)
- -40...85°C (TEN3-xxxN, TEN6xxxN)
Body dim.:
- 31.8x20.3x10.2mm (TEN3-xxxN, TEN6-xxxN)
- 50.8x25.4x10.2mm (TEN40-xxxN, TEN60-xxxN)
Protection:
- anti-overload OPP (TEN6xxxN)
- anti-overvoltage OVP (TEN40-xxxN, TEN60-xxxN)
- short circuit protection SCP
Switch. freq.:
- 90kHz (TEN3-xxxN)
- 330kHz (TEN6-xxxN)
- 320kHz (TEN40-xxxN)
- 250kHz (TEN60-xxxN)
Manufacturer series:
- TEN 3N (TEN3-xxxN)
- TEN 6N (TEN6-xxxN)
- TEN 40N (TEN40-xxxN)
- TEN 60N (TEN60-xxxN)
Number of outputs:
- 1 (TEN3-051xN, TEN3-121xN, TEN3-241xN, TEN3-481xN, TEN6-121xN, TEN6-241xN, TEN6-481xN, TEN60-1213N, TEN60-1215N, TEN60-241xN, TEN60-481xN, TEN40-121xN, TEN40-241xN, TEN40-481xN)
- 2 (TEN3-052xN, TEN3-122xN, TEN3-242xN, TEN3-482xN, TEN6-122xN, TEN6-242xN, TEN6-482xN, TEN60-122xN, TEN60-242xN, TEN60-482xN, TEN40-1222N, TEN40-1223N, TEN40-2422N, TEN40-2423N, TEN40-4822N, TEN40-4823N)
Output voltage:
- 3.3V DC (TENxxx10N)
- 5V DC (TENxxx1N)
- 12V DC (TENxxx2N)
- 15V DC (TENxxx3N)
- 24V DC (TENxxx5N)
