DC/DC converters, THB series
| Manufacturer | TRACO POWER |
| Protection | short circuit protection SCP |
| Switch. freq. | 150kHz |
| Mounting | THT |
| Symbol | Power | Uin | Iout | Uout2 | Iout2 | Efficiency |
|---|---|---|---|---|---|---|
| [W] | [V DC] | [A] | [V DC] | [mA] | [%] | |
| THB3-0511 | 3 | 4.5...9 | 600m | - | - | 70 |
| THB3-0512 | 3 | 4.5...9 | 250m | - | - | 75 |
| THB3-0515 | 3 | 4.5...9 | 125m | - | - | 76 |
| THB3-0522 | 3 | 4.5...9 | 125m | -12 | 125 | 75 |
| THB3-0523 | 3 | 4.5...9 | 100m | -15 | 100 | 75 |
| THB3-1211 | 3 | 9...18 | 600m | - | - | 74 |
| THB3-1212 | 3 | 9...18 | 250m | - | - | 80 |
| THB3-1215 | 3 | 9...18 | 125m | - | - | 81 |
| THB3-1222 | 3 | 9...18 | 125m | -12 | 125 | 80 |
| THB3-1223 | 3 | 9...18 | 100m | -15 | 100 | 80 |
| THB3-2411 | 3 | 18...36 | 600m | - | - | 78 |
| THB3-2412 | 3 | 18...36 | 250m | - | - | 83 |
| THB3-2415 | 3 | 18...36 | 125m | - | - | 84 |
| THB3-2422 | 3 | 18...36 | 125m | -12 | 125 | 83 |
| THB3-2423 | 3 | 18...36 | 100m | -15 | 100 | 83 |
| THB3-4811 | 3 | 36...75 | 600m | - | - | 78 |
| THB3-4812 | 3 | 36...75 | 250m | - | - | 83 |
| THB3-4815 | 3 | 36...75 | 125m | - | - | 84 |
| THB3-4822 | 3 | 36...75 | 125m | -12 | 125 | 83 |
| THB3-4823 | 3 | 36...75 | 100m | -15 | 100 | 86 |
| THB6-1211 | 6 | 9...18 | 1 | - | - | 75 |
| THB6-1212 | 6 | 9...18 | 500m | - | - | 78 |
| THB6-1222 | 6 | 9...18 | 250m | -12 | 250 | 78 |
| THB6-1223 | 6 | 9...18 | 200m | -15 | 200 | 78 |
| THB6-2411 | 6 | 18...36 | 1 | - | - | 77 |
| THB6-2412 | 6 | 18...36 | 500m | - | - | 80 |
| THB6-2422 | 6 | 18...36 | 250m | -12 | 250 | 80 |
| THB6-2423 | 6 | 18...36 | 200m | -15 | 200 | 80 |
| THB6-4811 | 6 | 36...75 | 1 | - | - | 77 |
| THB6-4812 | 6 | 36...75 | 500m | - | - | 80 |
| THB6-4822 | 6 | 36...75 | 250m | -12 | 250 | 80 |
| THB6-4823 | 6 | 36...75 | 200m | -15 | 200 | 80 |
| THB10-1211 | 10 | 9...18 | 1.6 | - | - | 75 |
| THB10-1212 | 10 | 9...18 | 835m | - | - | 80 |
| THB10-1222 | 10 | 9...18 | 417m | -12 | 417 | 80 |
| THB10-1223 | 10 | 9...18 | 333m | -15 | 333 | 81 |
| THB10-2411 | 10 | 18...36 | 2 | - | - | 76 |
| THB10-2412 | 10 | 18...36 | 835m | - | - | 81 |
| THB10-2422 | 10 | 18...36 | 417m | -12 | 417 | 81 |
| THB10-2423 | 10 | 18...36 | 333m | -15 | 333 | 82 |
| THB10-4811 | 10 | 36...75 | 2 | - | - | 76 |
| THB10-4812 | 10 | 36...75 | 835m | - | - | 81 |
| THB10-4822 | 10 | 36...75 | 417m | -12 | 417 | 81 |
| THB10-4823 | 10 | 36...75 | 333m | -15 | 333 | 82 |
Manufacturer series:
- THB 3 (THB3-xxx)
- THB 6 (THB6-xxx)
- THB 10 (THB10-xxx)
Body dim.:

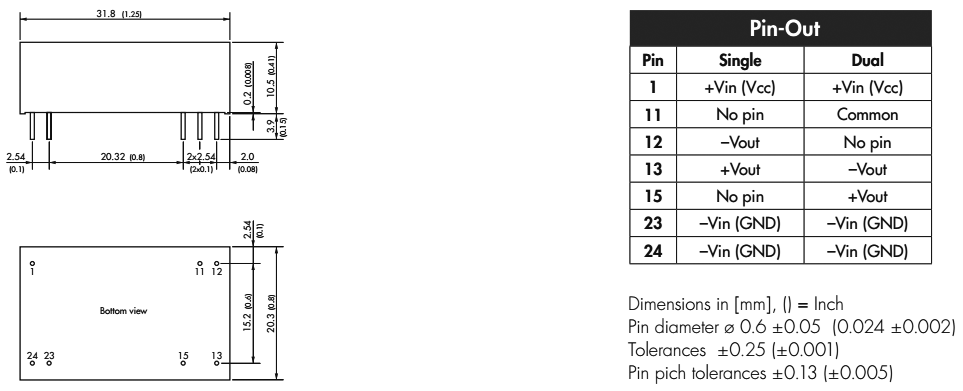

- 31.8x20.3x10.5mm (THB3-xxx)

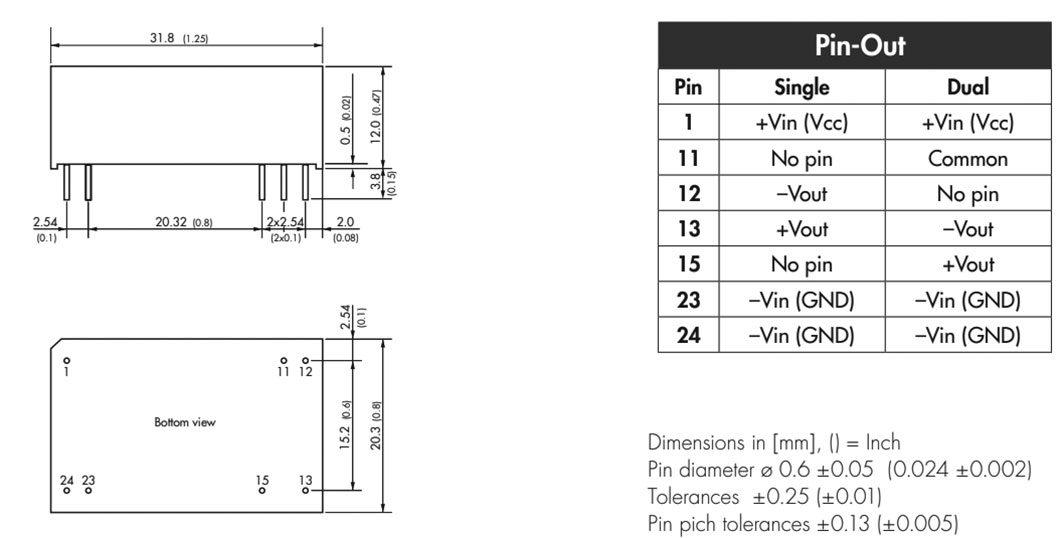

- 31.8x20.3x12mm (THB6-xxx)

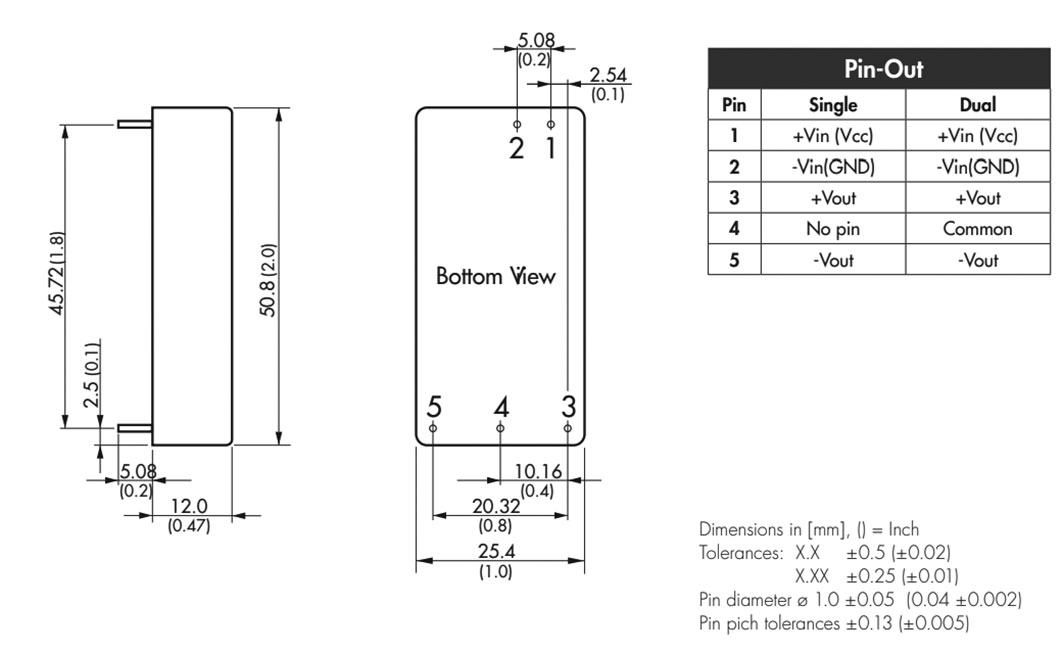

- 50.8x25.4x12mm (THB10-xxx)
Insulation voltage:
- 3kV (THB3-xxx, THB6-xxx)
- 4kV (THB10-xxx)
Case:
- DIP24 (THB3-xxx, THB6-xxx)
Operating temperature:
- -40...71°C (THB6-xxx)
- -40...75°C (THB10-xxx)
- -40...85°C (THB3-xxx)
Number of outputs:
- 1 (THB3-051x, THB3-121x, THB3-241x, THB3-481x, THB6-1211, THB6-1212, THB6-2411, THB6-2412, THB6-4811, THB6-4812, THB10-1211, THB10-1212, THB10-2411, THB10-2412, THB10-4811, THB10-4812)
- 2 (THB3-0522, THB3-0523, THB3-1222, THB3-1223, THB3-2422, THB3-2423, THB3-4822, THB3-4823, THB6-1222, THB6-1223, THB6-2422, THB6-2423, THB6-4822, THB6-4823, THB10-1222, THB10-1223, THB10-2422, THB10-2423, THB10-4822, THB10-4823)
Output voltage:
- 5V DC (THB3-xx11, THB6-xx11)
- 5.1V DC (THB10-xx11)
- 12V DC (THBxxx2)
- 15V DC (THBxxx23)
- 24V DC (THB3-xx15)
Dimensions:
- 2"x1" (THB10-xxx)
