DC/DC converters, THN...N series
| Manufacturer | TRACO POWER |
| Manufacturer series | THN 15N |
| Insulation voltage | 1600V DC |
| Protection | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP |
| Switching frequency | 270kHz |
| Operating temperature | -40...70°C |
| Body dimensions | 25.4x25.4x9.9mm |
| Mounting | THT |
| Dimensions | 1"x1" |
| Symbol | Power | Uin | Iout | Uout2 | Iout2 | Efficiency |
|---|---|---|---|---|---|---|
| [W] | [V DC] | [A] | [V DC] | [A] | [%] | |
| THN15-1210N | 15 | 9...18 | 4.5 | - | - | 88 |
| THN15-1211N | 15 | 9...18 | 3 | - | - | 90 |
| THN15-1212N | 15 | 9...18 | 1.3 | - | - | 89 |
| THN15-1213N | 15 | 9...18 | 1 | - | - | 90 |
| THN15-1215N | 15 | 9...18 | 625m | - | - | 91 |
| THN15-1221N | 15 | 9...18 | 1.5 | -5 | 1.5 | 86 |
| THN15-1222N | 15 | 9...18 | 625m | -12 | 625m | 89 |
| THN15-1225N | 15 | 9...18 | 315m | -24 | 315m | 90 |
| THN15-2410N | 15 | 18...36 | 4.5 | - | - | 88 |
| THN15-2411N | 15 | 18...36 | 3 | - | - | 90 |
| THN15-2413N | 15 | 18...36 | 1 | - | - | 90 |
| THN15-2415N | 15 | 18...36 | 625m | - | - | 91 |
| THN15-2421N | 15 | 18...36 | 1.5 | -5 | 1.5 | 86 |
| THN15-2422N | 15 | 18...36 | 625m | -12 | 625m | 90 |
| THN15-2423N | 15 | 18...36 | 500m | -15 | 500m | 90 |
| THN15-2425N | 15 | 18...36 | 315m | -24 | 315m | 90 |
| THN15-4810N | 15 | 36...75 | 4.5 | - | - | 87 |
| THN15-4811N | 15 | 36...75 | 3 | - | - | 89 |
| THN15-4812N | 15 | 36...75 | 1.3 | - | - | 89 |
| THN15-4813N | 15 | 36...75 | 1 | - | - | 89 |
| THN15-4821N | 15 | 36...75 | 1.5 | -5 | 1.5 | 85 |
| THN15-4822N | 15 | 36...75 | 625m | -12 | 625m | 89 |
| THN15-4823N | 15 | 36...75 | 500m | -15 | 500m | 89 |
| THN15-4825N | 15 | 36...75 | 315m | -24 | 315m | 89 |
Number of outputs:
- 1 (THN15-121xN, THN15-241xN, THN15-481xN)
- 2 (THN15-122xN, THN15-242xN, THN15-482xN)

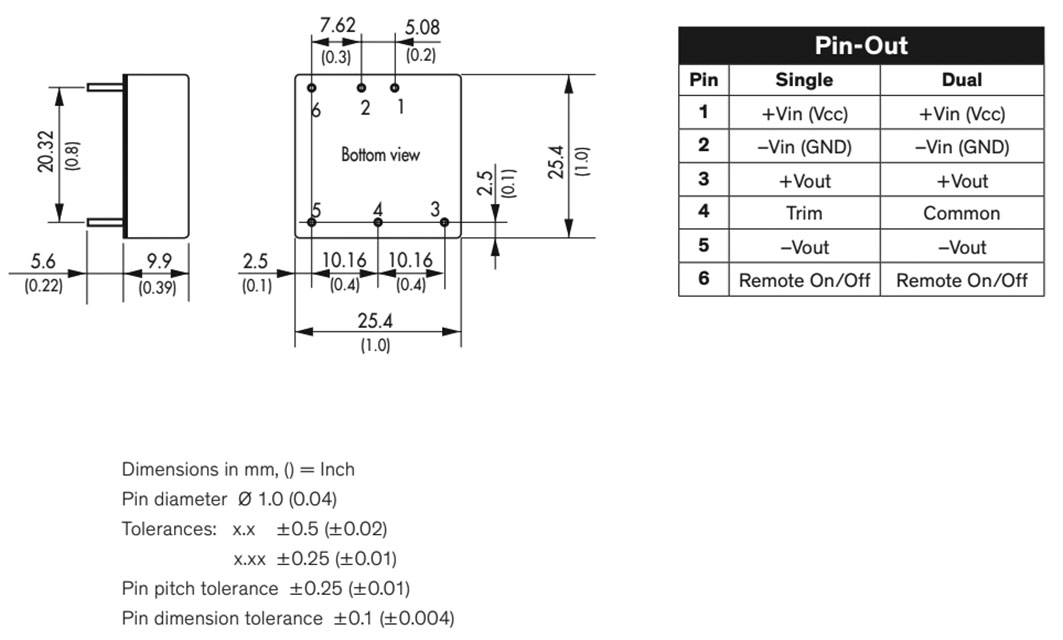

Dimensions:
Output voltage:
- 3.3V DC (THN15-xx10N)
- 5V DC (THN15-xxx1N)
- 12V DC (THN15-xxx2N)
- 15V DC (THN15-xxx3N)
- 24V DC (THN15-xxx5N)
