DC/DC converters, THN series
| Manufacturer | TRACO POWER |
| Type of converter | DC/DC |
| Case | 1"x1" |
| Mounting | THT |
| Symbol | Power | Uin | Number of outputs | Output voltage | Iout | Uout2 | Iout2 | Efficiency | Body dim. |
|---|---|---|---|---|---|---|---|---|---|
| [W] | [V DC] | [V DC] | [mA] | [V DC] | [A] | [%] | [mm] | ||
| THN15-1210 | 15 | 9...18 | 1 | 3.3 | 4000 | - | - | 84 | 25.4x25.4x9.9 |
| THN15-1211 | 15 | 9...18 | 5 | 3000 | - | - | 88 | 25.4x25.4x9.9 | |
| THN15-1212 | 15 | 9...18 | 1 | 12 | 1300 | - | - | 86 | 25.4x25.4x9.9 |
| THN15-1213 | 15 | 9...18 | 1 | 15 | 1000 | - | - | 88 | 25.4x25.4x9.9 |
| THN15-1215 | 15 | 9...18 | 1 | 24 | 625 | - | - | 90 | 25.4x25.4x9.9 |
| THN15-1221 | 15 | 9...18 | 2 | 5 | 1500 | -5 | 1.5 | 85 | 25.4x25.4x9.9 |
| THN15-1222 | 15 | 9...18 | 2 | 12 | 625 | -12 | 625m | 87 | 25.4x25.4x9.9 |
| THN15-1223 | 15 | 9...18 | 2 | 15 | 500 | -15 | 500m | 88 | 25.4x25.4x9.9 |
| THN15-1225 | 15 | 9...18 | 2 | 24 | 315 | -24 | 315m | 90 | 25.4x25.4x9.9 |
| THN15-2410 | 15 | 18...36 | 1 | 3.3 | 4000 | - | - | 86 | 25.4x25.4x9.9 |
| THN15-2411 | 15 | 18...36 | 1 | 5 | 3000 | - | - | 88 | 25.4x25.4x9.9 |
| THN15-2412 | 15 | 18...36 | 1 | 12 | 1300 | - | - | 87 | 25.4x25.4x9.9 |
| THN15-2413 | 15 | 18...36 | 1 | 15 | 1000 | - | - | 88 | 25.4x25.4x9.9 |
| THN15-2415 | 15 | 18...36 | 1 | 24 | 625 | - | - | 90 | 25.4x25.4x9.9 |
| THN15-2421 | 15 | 18...36 | 2 | 5 | 1500 | -5 | 1.5 | 85 | 25.4x25.4x9.9 |
| THN15-2422 | 15 | 18...36 | 2 | 12 | 625 | -12 | 625m | 88 | 25.4x25.4x9.9 |
| THN15-2423 | 15 | 18...36 | 2 | 15 | 500 | -15 | 500m | 88 | 25.4x25.4x9.9 |
| THN15-2425 | 15 | 18...36 | 2 | 24 | 315 | -24 | 315m | 90 | 25.4x25.4x9.9 |
| THN15-4810 | 15 | 36...75 | 1 | 3.3 | 4000 | - | - | 86 | 25.4x25.4x9.9 |
| THN15-4811 | 15 | 36...75 | 1 | 5 | 3000 | - | - | 88 | 25.4x25.4x9.9 |
| THN15-4812 | 15 | 36...75 | 1 | 12 | 1300 | - | - | 88 | 25.4x25.4x9.9 |
| THN15-4813 | 15 | 36...75 | 1 | 15 | 1000 | - | - | 88 | 25.4x25.4x9.9 |
| THN15-4815 | 15 | 36...75 | 1 | 24 | 625 | - | - | 91 | 25.4x25.4x9.9 |
| THN15-4821 | 15 | 36...75 | 2 | 5 | 1500 | -5 | 1.5 | 85 | 25.4x25.4x9.9 |
| THN15-4822 | 15 | 36...75 | 2 | 12 | 625 | -12 | 625m | 89 | 25.4x25.4x9.9 |
| THN15-4823 | 15 | 36...75 | 2 | 15 | 500 | -15 | 500m | 88 | 25.4x25.4x9.9 |
| THN15-4825 | 15 | 36...75 | 2 | 24 | 315 | -24 | 315m | 90 | 25.4x25.4x9.9 |
| THN20-1210 | 20 | 9...18 | 1 | 3.3 | 4500 | - | - | 86 | 25.4x25.4x9.9 |
| THN20-1211 | 20 | 9...18 | 1 | 5 | 4000 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-1212 | 20 | 9...18 | 1 | 12 | 1670 | - | - | 89 | 25.4x25.4x9.9 |
| THN20-1213 | 20 | 9...18 | 1 | 15 | 1330 | - | - | 89 | 25.4x25.4x9.9 |
| THN20-1223 | 20 | 9...18 | 2 | 15 | 667 | -15 | 667m | 89 | 25.4x25.4x9.9 |
| THN20-2410 | 20 | 18...36 | 1 | 3.3 | 4500 | - | - | 86 | 25.4x25.4x9.9 |
| THN20-2412 | 20 | 18...36 | 1 | 12 | 1670 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-2413 | 20 | 18...36 | 1 | 15 | 1330 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-2422 | 20 | 18...36 | 2 | 12 | 833 | -12 | 833m | 90 | 25.4x25.4x9.9 |
| THN20-2423 | 20 | 18...36 | 15 | 667 | -15 | 667m | 90 | 25.4x25.4x9.9 | |
| THN20-4810 | 20 | 36...75 | 1 | 3.3 | 4500 | - | - | 86 | 25.4x25.4x9.9 |
| THN20-4811 | 20 | 36...75 | 1 | 5 | 4000 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-4812 | 20 | 36...75 | 1 | 12 | 1670 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-4813 | 20 | 36...75 | 1 | 15 | 1330 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-4822 | 20 | 36...75 | 2 | 12 | 833 | -12 | 833m | 90 | 25.4x25.4x9.9 |
| THN20-4823 | 20 | 36...75 | 2 | 15 | 667 | -15 | 667m | 90 | 25.4x25.4x9.9 |
| THN30-1210 | 30 | 9...18 | 1 | 3.3 | 7000 | - | - | 86 | 25.4x25.4x9.9 |
| THN30-1211 | 30 | 9...18 | 1 | 5 | 6000 | - | - | 89 | 25.4x25.4x9.9 |
| THN30-1212 | 30 | 9...18 | 1 | 12 | 2500 | - | - | 89 | 25.4x25.4x9.9 |
| THN30-1213 | 30 | 9...18 | 1 | 15 | 2000 | - | - | 89 | 25.4x25.4x9.9 |
| THN30-1215 | 30 | 9...18 | 1 | 24 | 1250 | - | - | 89 | 25.4x25.4x9.9 |
| THN30-1222 | 30 | 9...18 | 2 | 12 | 1250 | -12 | 1.25 | 89 | 25.4x25.4x9.9 |
| THN30-2410 | 30 | 18...36 | 1 | 3.3 | 7000 | - | - | 87 | 25.4x25.4x9.9 |
| THN30-2411 | 30 | 18...36 | 1 | 5 | 6000 | - | - | 90 | 25.4x25.4x9.9 |
| THN30-2412 | 30 | 18...36 | 1 | 12 | 2500 | - | - | 91 | 25.4x25.4x9.9 |
| THN30-2413 | 30 | 18...36 | 1 | 15 | 2000 | - | - | 91 | 25.4x25.4x9.9 |
| THN30-2415 | 30 | 18...36 | 1 | 24 | 1250 | - | - | 91 | 25.4x25.4x9.9 |
| THN30-2422 | 30 | 18...36 | 2 | 12 | 1250 | -12 | 1.25 | 91 | 25.4x25.4x9.9 |
| THN30-2423 | 30 | 18...36 | 2 | 15 | 1000 | -15 | 1 | 91 | 25.4x25.4x9.9 |
| THN30-4810 | 30 | 36...75 | 1 | 3.3 | 7000 | - | - | 87 | 25.4x25.4x9.9 |
| THN30-4811 | 30 | 36...75 | 1 | 5 | 6000 | - | - | 87 | 25.4x25.4x9.9 |
| THN30-4812 | 30 | 36...75 | 1 | 12 | 2500 | - | - | 90 | 25.4x25.4x9.9 |
| THN30-4813 | 30 | 36...75 | 1 | 15 | 2000 | - | - | 91 | 25.4x25.4x9.9 |
| THN30-4815 | 30 | 36...75 | 1 | 24 | 1250 | - | - | 91 | 25.4x25.4x9.9 |
| THN30-4822 | 30 | 36...75 | 2 | 12 | 1250 | -12 | 1.25 | 91 | 25.4x25.4x9.9 |
| THN30-4823 | 30 | 36...75 | 2 | 15 | 1000 | -15 | 1 | 92 | 25.4x25.4x9.9 |
| THN20-2410WIR | 20 | 9...36 | 1 | 3.3 | 5500 | - | - | 88 | 25.4x25.4x9.9 |
| THN20-2411WIR | 20 | 9...36 | 1 | 5.1 | 4000 | - | - | 89 | 25.4x25.4x9.9 |
| THN20-2412WIR | 20 | 9...36 | 1 | 12 | 1670 | - | - | 89 | 25.4x25.4x9.9 |
| THN20-2413WIR | 20 | 9...36 | 1 | 15 | 1330 | - | - | 89 | 25.4x25.4x9.9 |
| THN20-2415WIR | 20 | 9...36 | 1 | 24 | 833 | - | - | 91 | 25.4x25.4x9.9 |
| THN20-2422WIR | 20 | 9...36 | 2 | 12 | 833 | -12 | 833m | 89 | 25.4x25.4x9.9 |
| THN20-2423WIR | 20 | 9...36 | 2 | 15 | 667 | -15 | 667m | 90 | 25.4x25.4x9.9 |
| THN20-2425WIR | 20 | 9...36 | 2 | 24 | 417 | -24 | 417m | 91 | 25.4x25.4x9.9 |
| THN20-4810WIR | 20 | 18...75 | 1 | 3.3 | 5500 | - | - | 89 | 25.4x25.4x9.9 |
| THN20-4811WIR | 20 | 18...75 | 1 | 5.1 | 4000 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-4812WIR | 20 | 18...75 | 1 | 12 | 1670 | - | - | 89 | 25.4x25.4x9.9 |
| THN20-4813WIR | 20 | 18...75 | 1 | 15 | 1330 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-4815WIR | 20 | 18...75 | 1 | 24 | 833 | - | - | 91 | 25.4x25.4x9.9 |
| THN20-4822WIR | 20 | 18...75 | 2 | 12 | 833 | -12 | 833m | 89 | 25.4x25.4x9.9 |
| THN20-4823WIR | 20 | 18...75 | 2 | 15 | 667 | -15 | 667m | 90 | 25.4x25.4x9.9 |
| THN20-4825WIR | 20 | 18...75 | 2 | 24 | 417 | -24 | 417m | 91 | 25.4x25.4x9.9 |
| THN20-7210WIR | 20 | 36...160 | 1 | 3.3 | 4000 | - | - | 88 | 25.4x25.4x9.9 |
| THN20-7211WIR | 20 | 36...160 | 1 | 5.1 | 1670 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-7212WIR | 20 | 36...160 | 1 | 12 | 1670 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-7213WIR | 20 | 36...160 | 1 | 15 | 1330 | - | - | 90 | 25.4x25.4x9.9 |
| THN20-7215WIR | 20 | 36...160 | 1 | 24 | 833 | - | - | 91 | 25.4x25.4x9.9 |
| THN20-7222WIR | 20 | 36...160 | 2 | 12 | 833 | -12 | 833m | 90 | 25.4x25.4x9.9 |
| THN20-7223WIR | 20 | 36...160 | 2 | 15 | 667 | -15 | 667m | 90 | 25.4x25.4x9.9 |
| THN20-7225WIR | 20 | 36...160 | 2 | 24 | 417 | -24 | 417m | 91 | 25.4x25.4x9.9 |
| THN30-2410WIR | 30 | 9...36 | 1 | 3.3 | 7000 | - | - | 88 | 25.4x25.4x9.9 |
| THN30-2411WIR | 30 | 9...36 | 1 | 5.1 | 6000 | - | - | 89 | 25.4x25.4x9.9 |
| THN30-2412WIR | 30 | 9...36 | 1 | 12 | 2500 | - | - | 89 | 25.4x25.4x9.9 |
| THN30-2413WIR | 30 | 9...36 | 1 | 15 | 2000 | - | - | 89 | 25.4x25.4x9.9 |
| THN30-2415WIR | 30 | 9...36 | 1 | 24 | 1250 | - | - | 90 | 25.4x25.4x9.9 |
| THN30-2422WIR | 30 | 9...36 | 2 | 12 | 1250 | -12 | 1250m | 89 | 25.4x25.4x9.9 |
| THN30-2423WIR | 30 | 9...36 | 2 | 15 | 1000 | -15 | 1000m | 91 | 25.4x25.4x9.9 |
| THN30-2425WIR | 30 | 9...36 | 2 | 24 | 625 | -24 | 625m | 91 | 25.4x25.4x9.9 |
| THN30-4810WIR | 30 | 18...75 | 1 | 3.3 | 7000 | - | - | 88 | 25.4x25.4x9.9 |
| THN30-4811WIR | 30 | 18...75 | 1 | 5.1 | 6000 | - | - | 90 | 25.4x25.4x9.9 |
| THN30-4812WIR | 30 | 18...75 | 1 | 12 | 2500 | - | - | 90 | 25.4x25.4x9.9 |
| THN30-4813WIR | 30 | 18...75 | 1 | 15 | 2000 | - | - | 91 | 25.4x25.4x9.9 |
| THN30-4815WIR | 30 | 18...75 | 1 | 24 | 1250 | - | - | 92 | 25.4x25.4x9.9 |
| THN30-4822WIR | 30 | 18...75 | 2 | 12 | 1250 | -12 | 1250m | 91 | 25.4x25.4x9.9 |
| THN30-4823WIR | 30 | 18...75 | 2 | 15 | 1000 | -15 | 1000m | 91 | 25.4x25.4x9.9 |
| THN30-4825WIR | 30 | 18...75 | 2 | 24 | 625 | -24 | 625m | 92 | 25.4x25.4x9.9 |
| THN30-7210WIR | 30 | 36...160 | 1 | 3.3 | 7000 | - | - | 88 | 25.4x25.4x9.9 |
| THN30-7211WIR | 30 | 36...160 | 1 | 5.1 | 6000 | - | - | 90 | 25.4x25.4x9.9 |
| THN30-7212WIR | 30 | 36...160 | 1 | 12 | 2500 | - | - | 90 | 25.4x25.4x9.9 |
| THN30-7213WIR | 30 | 36...160 | 1 | 15 | 2000 | - | - | 90 | 25.4x25.4x9.9 |
| THN30-7215WIR | 30 | 36...160 | 1 | 24 | 1250 | - | - | 91 | 25.4x25.4x9.9 |
| THN30-7222WIR | 30 | 36...160 | 2 | 12 | 1250 | -12 | 1250m | 90 | 25.4x25.4x9.9 |
| THN30-7223WIR | 30 | 36...160 | 2 | 15 | 1000 | -15 | 1000m | 90 | 25.4x25.4x9.9 |
| THN30-7225WIR | 30 | 36...160 | 2 | 24 | 625 | -24 | 625m | 91 | 25.4x25.4x9.9 |
Protection:
- anti-overload OPP
- anti-overvoltage OVP
- short circuit protection SCP
- voltage drop BOP (THN30-xxxWIR)
Insulation volt.:
- 1500V DC (THN15-xxx, THN20-12xx, THN20-2410, THN20-2412, THN20-2413, THN20-2422, THN20-2423, THN20-4810, THN20-4811, THN20-4812, THN20-4813, THN20-4822, THN20-4823, THN30-12xx, THN30-2410, THN30-2411, THN30-2412, THN30-2413, THN30-2415, THN30-2422, THN30-2423, THN30-4810, THN30-4811, THN30-4812, THN30-4813, THN30-4815, THN30-4822, THN30-4823)
- 3000V DC (THNxxxWIR)
fswitch:
- 400kHz (THN15-xxx)
- 330kHz (THN20-12xx, THN20-2410, THN20-2412, THN20-2412WIR, THN20-2413, THN20-2413WIR, THN20-2415WIR, THN20-242xxx, THN20-4810, THN20-4811, THN20-4812, THN20-4812WIR, THN20-4813, THN20-4813WIR, THN20-4815WIR, THN20-482xxx, THN30-12xx, THN30-2410, THN30-2411, THN30-2412, THN30-2412WIR, THN30-2413, THN30-2413WIR, THN30-2415, THN30-2415WIR, THN30-242xxx, THN30-4810, THN30-4811, THN30-4812, THN30-4812WIR, THN30-4813, THN30-4813WIR, THN30-4815, THN30-4815WIR, THN30-482xxx)
- 270kHz (THN20-2410WIR, THN20-2411WIR, THN20-4810WIR, THN20-4811WIR, THN30-2410WIR, THN30-2411WIR, THN30-4810WIR, THN30-4811WIR)
- 240kHz (THN20-7210WIR, THN20-7211WIR, THN30-7210WIR, THN30-7211WIR)
- 300kHz (THN20-7212WIR, THN20-7213WIR, THN20-7215WIR, THN20-722xWIR, THN30-7212WIR, THN30-7213WIR, THN30-7215WIR, THN30-722xWIR)
Temp.:
- -40...65°C (THN20-xxxWIR)
- -40...75°C (THN20-12xx, THN20-2410, THN20-2412, THN20-2413, THN20-2422, THN20-2423, THN20-4810, THN20-4811, THN20-4812, THN20-4813, THN20-4822, THN20-4823)
- -40...80°C (THN30-12xx, THN30-2410, THN30-2411, THN30-2412, THN30-2413, THN30-2415, THN30-2422, THN30-2423, THN30-4810, THN30-4811, THN30-4812, THN30-4813, THN30-4815, THN30-4822, THN30-4823)
- -40...85°C (THN15-xxx)
- -40...105°C (THN30-xxxWIR)
Manufacturer series:
- THN15 (THN15-xxx)
- THN20 (THN20-12xx, THN20-2410, THN20-2412, THN20-2413, THN20-2422, THN20-2423, THN20-4810, THN20-4811, THN20-4812, THN20-4813, THN20-4822, THN20-4823)
- THN30 (THN30-12xx, THN30-2410, THN30-2411, THN30-2412, THN30-2413, THN30-2415, THN30-2422, THN30-2423, THN30-4810, THN30-4811, THN30-4812, THN30-4813, THN30-4815, THN30-4822, THN30-4823)
- THN 20WIR (THN20-xxxWIR)
- THN 30WIR (THN30-xxxWIR)
Dimensions:

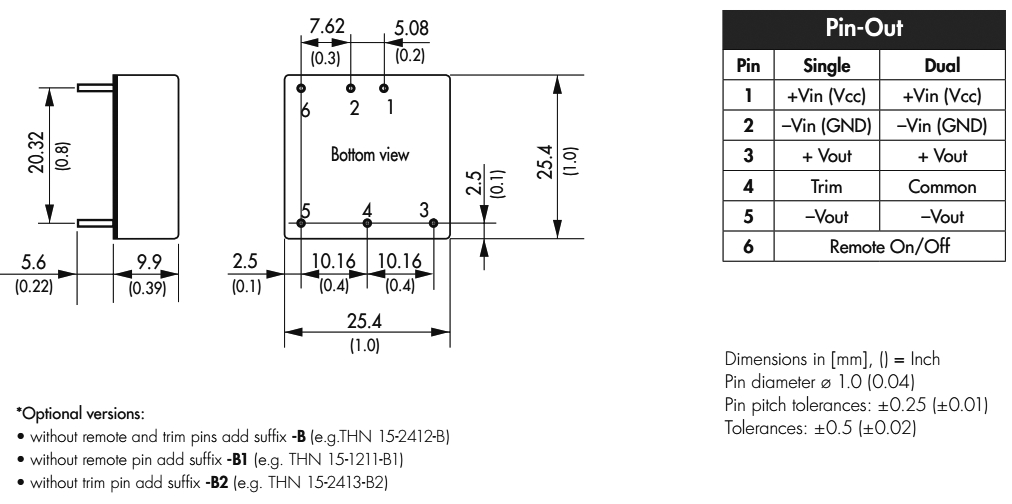

- Fig. 1. (THN15-xxx)

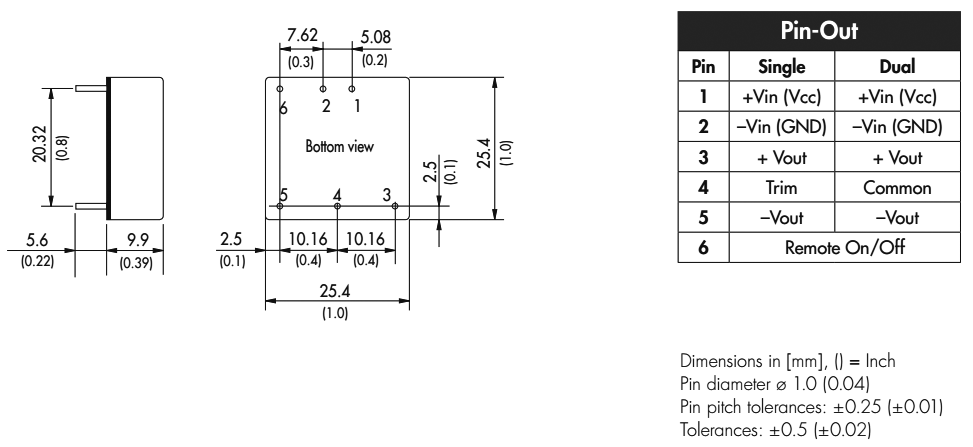

- Fig. 2. (THN20-12xx, THN20-2410, THN20-2412, THN20-2413, THN20-2422, THN20-2423, THN20-4810, THN20-4811, THN20-4812, THN20-4813, THN20-4822, THN20-4823)

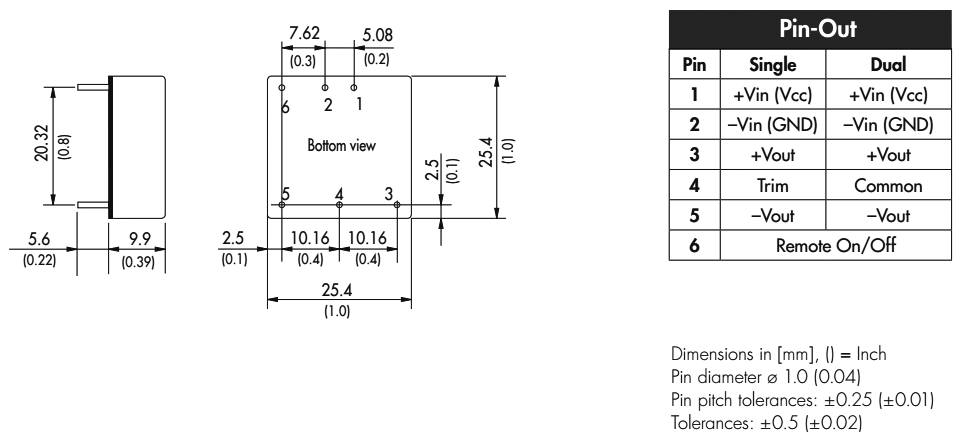

- Fig. 3. (THN30-12xx, THN30-2410, THN30-2411, THN30-2412, THN30-2413, THN30-2415, THN30-2422, THN30-2423, THN30-4810, THN30-4811, THN30-4812, THN30-4813, THN30-4815, THN30-4822, THN30-4823)

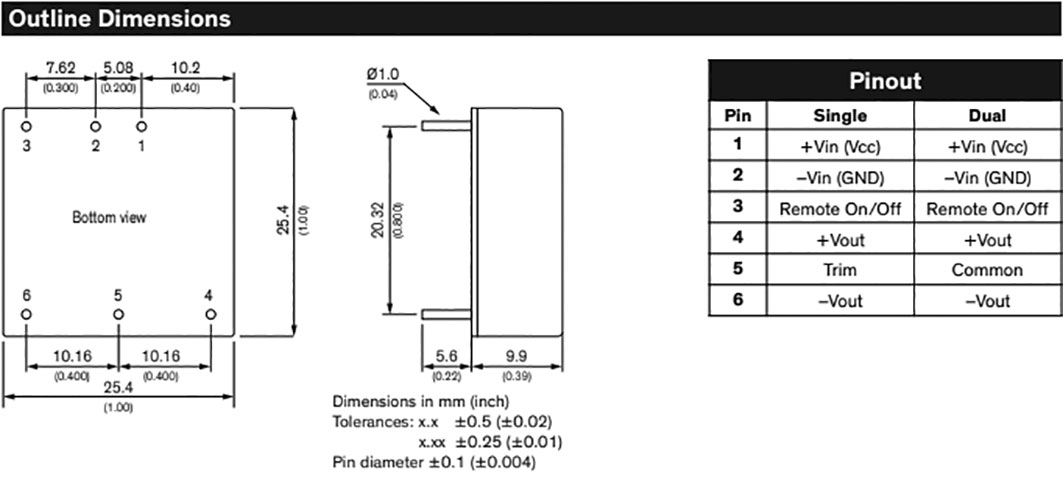

- Fig. 4. (THN20-xxxWIR)

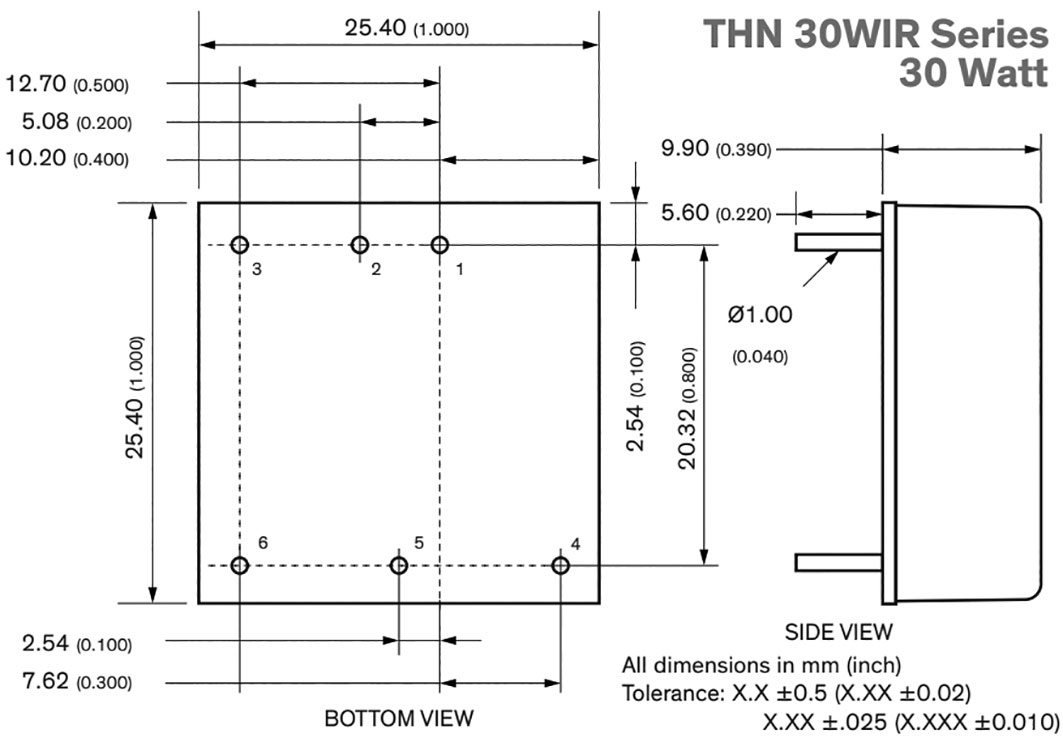

- Fig. 5. (THN30-xxxWIR)
