Development board for IQRF TECH RF transceivers
| Manufacturer | IQRF TECH |
| Development kit | RF |
| Symbol | Manufacturer's part number | Interface |
|---|---|---|
| DS-START-04 | DS-START-04 | GPIO; USB |
| DS-START-05 | DS-START-05 | GPIO; USB |
| TR-72GA | TR-72GA | GPIO |
| TR-72GAT | TR-72GAT | GPIO |
| TR-72GC | TR-72GC | - |
| TR-75GA | TR-75GA | - |
| TR-76G | TR-76G | - |
| TR-76GA | TR-76GA | - |
| IQD-GW04-02X | IQD-GW04-02A | RJ45; USB |
| IQD-GW04-03X | IQD-GW04-03A | RJ45; USB |
| IQD-REP04-01A | IQD-REP04-01A | |
| IQD-REP04-03A | IQD-REP04-03A | - |
| DS-DPA-03 | DS-DPA-03 | - |
| DS-IOT-02 | DS-IOT-02 | - |
| DS-NFC-01 | DS-NFC-01 | - |
| DDC-NFC-01 | DDC-NFC-01 | - |
| IQD-NFC-01-IQUIP | IQD-NFC-01-IQUIP | - |
| IQD-DB1M-02A | IQD-DB1M-02A | DALI; IEC 60929; IEC62386; NFC |
| IQD-LCZH02-03C | IQD-LCZH02-03C | DALI; IEC62386; NFC |
| IQD-LCZH02-04D | IQD-LCZH02-04D | DALI; IEC62386; NFC |
| IQD-RC05-01 | IQD-RC05-01 | - |
| IQD-RC05-01A | IQD-RC05-01A | - |
| Symbol | Connection | Kit contents | Antenna | Kind of module | Operating system | Dim. (a x b x c) | Rechargeable battery | Capacity |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mAh] | |||||||

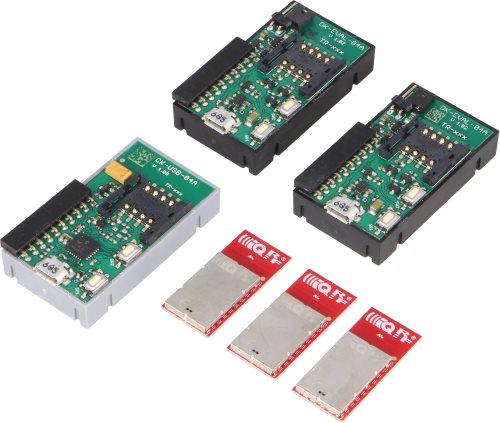

| DS-START-04 | pin strips, SIM, USB B micro | CK-USB-04A; DCTR-72DAT x3; DK-EVAL-04A x2; USB A - USB B micro cable; USB memory with drivers, documentation and sample source code | - | - | - | - | - | - |
| DS-START-05 | pin strips, SIM, USB B micro | CK-USB-04A; DK-EVAL-04A x2; USB A - USB B micro cable; TR-72GAT x3 | - | - | - | - | - | - |
| TR-72GA | - | PCB | - | - | - | - | - | |
| TR-72GAT | - | - | PCB | - | - | - | - | - |
| TR-72GC | - | - | u.FL | - | - | - | - | - |
| TR-75GA | - | - | PCB | - | - | - | - | - |
| TR-76G | - | - | RF PAD | - | - | - | - | - |
| TR-76GA | - | - | PCB | - | - | - | - | - |
| IQD-GW04-02X | DC socket, HDMI, RJ45 socket, SIM, USB, USB C | 5V DC power supply | SMA | LTE, Raspberry CM4 | Armbian | 90x100x39 | - | - |
| IQD-GW04-03X | DC socket, HDMI, RJ45 socket, SIM, USB, USB C | 5V DC power supply | SMA | Raspberry CM4 | Armbian | 90x100x39 | - | - |
| IQD-REP04-01A | mains socket | - | - | repeater | IQRF OS | 82x77.6x54.8 | Li-Ion | 300 |
| IQD-REP04-03A | Ceiling mounted box | - | - | repeater | IQRF OS | 122x93x56 | Li-Ion | 300 |
| DS-DPA-03 | - | CK-USB-04A x2; DK-EVAL-04A x4; USB micro x2 cable x2; TR-72GAT x6 | - | IQRF IQMESH | - | - | - | - |
| DS-IOT-02 | - | CK-USB-04A; DDC-RE-01; DDC-SE-01; DK-EVAL-04A x3; USB micro cable; KON-RASP-01; TR-72GAT x4 | - | IoT | - | - | - | - |
| DS-NFC-01 | - | antenna NFC; CK-USB-04A; DDC-NFC-01; DK-EVAL-04A; IQD-NFC-01; USB micro cable; ST25DV04K-IER6T3; TR-72GAT x2 | - | NFC | - | - | - | - |
| DDC-NFC-01 | - | antenna NFC; ST25DV04K-IER6T3 | - | - | - | 48x27x11 | - | - |
| IQD-NFC-01-IQUIP | USB micro | TR-76D | - | - | IQRF OS | 90x45x12 | Li-Ion | 240 |
| IQD-DB1M-02A | AC 230V | - | - | IQRF lightning controller | IQRF OS | 88x38x22 | - | - |
| IQD-LCZH02-03C | 24 VDC | - | - | IQRF IQMESH, NFC | IQRF OS | 79.4x52.5 | - | - |
| IQD-LCZH02-04D | 24 VDC | - | - | IQRF IQMESH, NFC | IQRF OS | 79.4x52.5 | - | - |
| IQD-RC05-01 | - | TR-76GA | - | NFC | - | 72x43x15.5 | CR2450 | 550 |
| IQD-RC05-01A | - | TR-76GA | - | IQRF IQMESH, NFC | - | 72x43x15.5 | CR2450 | 550 |
