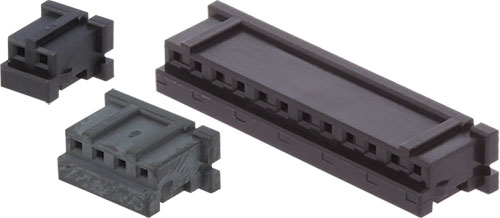

DF3 connectors, pitch 2mm, HIROSE
| Manufacturer | HIROSE |
| Type of connector | wire-wire/PCB |
| Contacts pitch | 2mm |
| Manufacturer series | SignalBee |
| Symbol | Kind | Mechanical mounting | Connector | Type | Spatial orientation | Pin configuration | Number of pins | Electrical mounting | Contact plating | Kind of package | Quantity in set/package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| [pcs.] | |||||||||||
| DF3-2P-2DS-01 | male | on PCBs | socket | - | angled 90° | 1x2 | 2 | THT | gold-plated | - | - |
| DF3-2P-2DSA-01 | male | on PCBs | socket | - | straight | 1x2 | 2 | THT | gold-plated | - | - |
| DF3-2S-2DSA-25 | female | on PCBs | socket | - | straight | 1x2 | 2 | THT | tinned | - | - |
| DF3-2S-2DSA-55 | female | on PCBs | socket | - | straight | 1x2 | 2 | THT | gold-plated | - | - |
| DF3-3S-2DSA-25 | female | on PCBs | socket | - | straight | 1x3 | 3 | THT | tinned | - | - |
| DF3-4P-2DSA-01 | male | on PCBs | socket | - | straight | 1x4 | 4 | THT | gold-plated | - | - |
| DF3-4S-2DSA-25 | female | on PCBs | socket | - | straight | 1x4 | 4 | THT | tinned | - | - |
| DF3-4S-2DSA-55 | female | on PCBs | socket | - | straight | 1x4 | 4 | THT | gold-plated | - | - |
| DF3-6P-2DS-01 | male | on PCBs | socket | - | angled 90° | 1x6 | 6 | THT | gold-plated | - | - |
| DF3-6P-2DSA-01 | male | on PCBs | socket | - | straight | 1x6 | 6 | THT | gold-plated | - | - |
| DF3-6S-2DSA-25 | female | on PCBs | socket | - | straight | 1x6 | 6 | THT | tinned | - | - |
| DF3A-2P-2DS | male | on PCBs | socket | - | angled 90° | 1x2 | 2 | THT | tinned | - | - |
| DF3A-2P-2DSA | male | on PCBs | socket | - | straight | 1x2 | 2 | THT | tinned | - | - |
| DF3A-3P-2DS | male | on PCBs | socket | - | angled 90° | 1x3 | 3 | THT | tinned | - | - |
| DF3A-3P-2DSA | male | on PCBs | socket | - | straight | 1x3 | 3 | THT | tinned | - | - |
| DF3A-4P-2DS | male | on PCBs | socket | - | angled 90° | 1x4 | 4 | THT | tinned | - | - |
| DF3A-4P-2DSA | male | on PCBs | socket | - | straight | 1x4 | 4 | THT | tinned | - | - |
| DF3A-5P-2DSA | male | on PCBs | socket | - | straight | 1x5 | 5 | THT | tinned | - | - |
| DF3A-6P-2DS | male | on PCBs | socket | - | angled 90° | 1x6 | 6 | THT | tinned | - | - |
| DF3A-6P-2DSA | male | on PCBs | socket | - | straight | 1x6 | 6 | THT | tinned | - | - |
| DF3EA-2P-2H-21/C | male | on PCBs | socket | - | horizontal | 1x2 | 2 | SMT | tinned | cut from reel | 1000 |
| DF3EA-2P-2V-21/C | male | on PCBs | socket | - | vertical | 1x2 | 2 | SMT | tinned | cut from reel | 1000 |
| DF3EA-4P-2H-21/C | male | on PCBs | socket | - | horizontal | 1x4 | 4 | SMT | tinned | cut from reel | 1000 |
| DF3EA-4P-2H-51/C | male | on PCBs | socket | - | horizontal | 1x4 | 4 | SMT | gold-plated | cut from reel | 1000 |
| DF3EA-4P-2V-21/C | male | on PCBs | socket | - | vertical | 1x4 | 4 | SMT | tinned | cut from reel | 1000 |
| DF3EA-6P-2H-21/C | male | on PCBs | socket | - | horizontal | 1x6 | 6 | SMT | tinned | cut from reel | 1000 |
| DF3EA-6P-2H-51/C | male | on PCBs | socket | - | horizontal | 1x6 | 6 | SMT | gold-plated | cut from reel | 1000 |
| DF3-10S-2C | female | for cable | plug | w/o contacts | straight | 1x10 | 10 | - | - | - | - |
| DF3-11S-2C | female | for cable | plug | w/o contacts | straight | 1x11 | 11 | - | - | - | - |
| DF3-12S-2C | female | for cable | plug | w/o contacts | straight | 1x12 | 12 | - | - | - | - |
| DF3-13S-2C | female | for cable | plug | w/o contacts | straight | 1x13 | 13 | - | - | - | - |
| DF3-14S-2C | female | for cable | plug | w/o contacts | straight | 1x14 | 14 | - | - | - | - |
| DF3-15S-2C | female | for cable | plug | w/o contacts | straight | 1x15 | 15 | - | - | - | - |
| DF3-2S-2C | female | for cable | plug | w/o contacts | straight | 1x2 | 2 | - | - | - | - |
| DF3-3S-2C | female | for cable | plug | w/o contacts | straight | 1x3 | 3 | - | - | - | - |
| DF3-4S-2C | female | for cable | plug | w/o contacts | straight | 1x4 | 4 | - | - | - | - |
| DF3-5S-2C | female | for cable | plug | w/o contacts | straight | 1x5 | 5 | - | - | - | - |
| DF3-6S-2C | female | for cable | plug | w/o contacts | straight | 1x6 | 6 | - | - | - | - |
| DF3-7S-2C | female | for cable | plug | w/o contacts | straight | 1x7 | 7 | - | - | - | - |
| DF3-8S-2C | female | for cable | plug | w/o contacts | straight | 1x8 | 8 | - | - | - | - |
| DF3-9S-2C | female | for cable | plug | w/o contacts | straight | 1x9 | 9 | - | - | - | - |
| DF3-2EP-2C | male | for cable | plug | w/o contacts | straight | 1x2 | 2 | - | - | - | - |
| DF3-3EP-2C | male | for cable | plug | w/o contacts | straight | 1x3 | 3 | - | - | - | - |
