Digilent - PC based oscilloscopes

Manufacturer

Symbol	410-338	471-018	240-123	410-384	471-031	410-349	410-373	410-378	410-263	471-041	471-040	410-413	410-394-1	410-394	410-417	410-415	471-060	410-418	411-002
Converter resolution [bit]	-	14	14	14	14	-	-	-	-	14	14	-	14	14	14	14	14	-	8
Sampling
- 1,5Gsps																			x
- 100Msps (in real time)		x	x	x	x					x	x		x	x
- 125Msps															x	x	x
Max. input voltage [V]
- 25		x	x	x	x					x	x		x	x		x	x
- 40																			x
Number of channels
- 2		x	x	x	x					x			x		x
- 4											x			x					x
U_out [V DC]
- 1.2...3.3	x
- 5		x	x	x	x					x	x		x	x	x
Manufacturer's part number	DIGITAL DISCOVERY	ANALOG DISCOVERY 2 LABVIEW BUNDLE	ANALOG DISCOVERY 2 PRO BUNDLE	ANALOG DISCOVERY STUDIO	ANALOG DISCOVERY STUDIO WITH BNC PROBES	410-349	OPENSCOPE	OPENSCOPE	BNC ADAPTER BOARD	ADP3250 WITH BNC PROBES	ADP3450 WITH BNC PROBES	410-413	ADP3250	ADP3450	ADP2230	ANALOG DISCOVERY 3	ANALOG DISCOVERY 3 PRO BUNDLE	410-418	ADP5470
I_out [mA]	100	700	700	700	700	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Type of oscilloscope:

PC connected oscilloscope (410-338, 410-384, 410-394-1, 410-394, 410-417, 410-415, 411-002, 471-0xx, 240-123)

Features:

16 digital channels (471-041, 471-040, 410-394-1, 410-394, 410-417)
16 digital and 2 analogue channels (410-415, 471-060)
24 digital channels (410-338)
34 digital channels (411-002)
protocols analyse: I2C, I2S, CAN, SPI, UART, Parallel (410-338)
digital signals analyzer (410-338)
supplied from USB port (410-338)

Interface:

Ethernet (471-041, 471-040, 410-394-1, 410-394)
USB (471-041, 471-040, 410-394-1, 410-394)
USB 2.0 Hi-Speed (411-002)
USB C (410-417, 410-415, 471-060)

Related items:

410-321 (410-413)

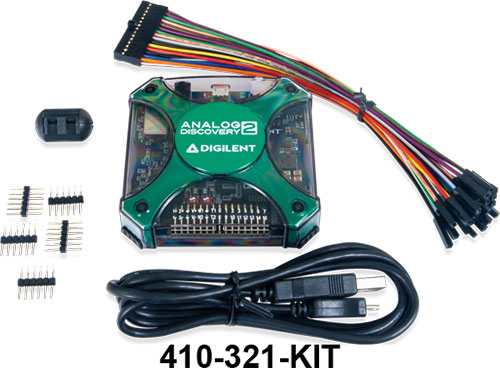

410-321-KIT (410-263, 410-418)
410-415 (410-418)

Application:

NPN, PNP, FET, type P and N transistors (410-413)

Application:

Analog Discovery (410-373, 410-378, 410-415, 411-002, 471-060)
Analog Discovery+ (410-418)
Digital Discovery (410-349)

Test accessories:

adapter (410-349, 410-263)
prototype board (410-373)
module (410-378, 410-413)
audio adapter (410-418)

Equipment:

24 logic probes (410-349)
Digilent adapter (410-349)

Kit contents:

30-pin Flywire labels (410-417, 410-415, 471-060)
4x oscilloscope probe (411-002)
adapter (411-002)
2x20 Logic Analyzer MTE Cable (411-002)
USB A - USB B cable (411-002)
USB C cable (410-417, 410-415, 471-060)
mini-grabber test clips (471-060)
BNC probes pair (471-060)
BNC adapter board (471-060)
screwdriver (411-002)
power supply (410-417, 410-415, 471-060)
probe kit (411-002)
male connector 6pin x5 (410-417, 410-415, 471-060)

Length:

54.9mm (410-373)

Width:

42.9mm (410-373)

Dimensions:

60x55x20mm (410-378)
234x194x381mm (471-041, 471-040, 410-394-1, 410-394)
134.2x144x37.9mm (410-417)
304.8x203.2x94mm (411-002)

Band:

30MHz (471-018, 471-031, 471-060, 240-123, 410-384, 410-415)
50MHz (410-417)
55MHz (471-041, 471-040, 410-394-1, 410-394)
350MHz (411-002)

Additional functions:

impedance analyzer (471-041, 471-040, 410-394-1, 410-394, 410-417, 411-002)
logical analyser (410-415, 411-002, 471-060)
network analyzer (471-041, 471-040, 410-394-1, 410-394, 411-002)
spectrum analyzer (471-041, 471-040, 410-394-1, 410-417, 411-002)
arbitrary waveform generator (471-0xx, 240-123, 410-384, 410-394-1, 410-394, 410-417, 410-415, 411-002)
function generator (411-002)
multimeter (411-002)
data logger (471-041, 471-040, 410-394-1, 410-394, 410-417, 411-002)
voltmeter (471-041, 471-040, 410-394-1, 410-394, 410-417)
power supply (411-002)

Induct. measur. range:

10µH...1000mH (410-378)

Frequency measuring range:

1...15MHz (410-378)

Capacitance measuring range:

50pF...500µF (410-378)

Input coupling:

AC, DC (471-041, 471-040, 410-394-1, 410-394, 410-417, 411-002)

Input sensitivity:

200µV/div...4V/div (411-002)
500µV/div...5V/div (471-041, 471-040, 410-394-1)

Trigger modes:

automatic (411-002)
normal (411-002)
single (411-002)
forced (411-002)

Input impedance:

1MΩ/15pF (471-041, 471-040, 410-394-1, 411-002)
1MΩ/24pF (471-018, 471-031, 240-123, 410-384, 410-417)

Memory record length:

16kpts/ch (471-018, 240-123)
32kpts/ch (471-041, 471-040, 410-394-1, 410-394)
1Mpts/ch (411-002)

Kind of module:

impedance analyzer (410-378)
transistor tester (410-413)

Connection:

BNC (411-002)
Jack 3.5mm socket (410-418)
