DIN rail mounting encased transformers, PTM series
| Type of transformer | mains |
| Mounting | for DIN rail mounting |
| Insulation class | B |
| Thermal class | Ta40B |
| IP rating | IP21 |
| Leads | terminal block |
| Conform to the norm | PN EN 61558-2-4 PN EN 61558-2-6 |

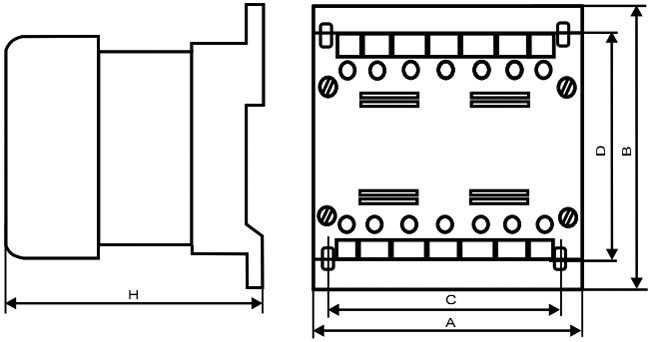

| Dimensions | Fig. 1. |
| Symbol | Power | Primary voltage | Usec. 1 | Body dimensions | A | B | C | D | H |
|---|---|---|---|---|---|---|---|---|---|
| [VA] | [V AC] | [V] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| PTM100/230/12V | 100 | 230 | 12 | 90x106x106 | 90 | 106 | 68.5 | 90 | 106 |
| PTM100/230/24V | 100 | 230 | 24 | 90x106x106 | 90 | 106 | 68.5 | 90 | 106 |
| PTM100/230/110V | 100 | 230 | 110 | 90x106x106 | 90 | 106 | 68.5 | 90 | 106 |
| PTM100/400/12V | 100 | 400 | 12 | 90x106x106 | 90 | 106 | 68.5 | 90 | 106 |
| PTM100/400/24V | 100 | 400 | 24 | 90x106x106 | 90 | 106 | 68.5 | 90 | 106 |
| PTM100/400/230V | 100 | 400 | 230 | 90x106x106 | 90 | 106 | 68.5 | 90 | 106 |
| PTM120/230/12V | 120 | 230 | 12 | 90x106x116 | 90 | 106 | 68.5 | 90 | 116 |
| PTM120/230/24V | 120 | 230 | 24 | 90x106x116 | 90 | 106 | 68.5 | 90 | 116 |
| PTM120/230/110V | 120 | 230 | 110 | 90x106x116 | 90 | 106 | 68.5 | 90 | 116 |
| PTM120/230/230V | 120 | 230 | 230 | 90x106x116 | 90 | 106 | 68.5 | 90 | 116 |
| PTM120/400/12V | 120 | 400 | 12 | 90x106x116 | 90 | 106 | 68.5 | 90 | 116 |
| PTM120/400/24V | 120 | 400 | 24 | 90x106x116 | 90 | 106 | 68.5 | 90 | 116 |
| PTM120/400/230V | 120 | 400 | 230 | 90x106x116 | 90 | 106 | 68.5 | 90 | 116 |
| PTM250/230/12V | 250 | 230 | 12 | 126x136x117 | 126 | 136 | 96 | 121 | 117 |
| PTM250/230/24V | 250 | 230 | 24 | 126x136x117 | 126 | 136 | 96 | 121 | 117 |
| PTM250/230/110V | 250 | 230 | 110 | 126x136x117 | 126 | 136 | 96 | 121 | 117 |
| PTM250/230/230V | 250 | 230 | 230 | 126x136x117 | 126 | 136 | 96 | 121 | 117 |
| PTM250/400/12V | 250 | 400 | 12 | 126x136x117 | 126 | 136 | 96 | 121 | 117 |
| PTM250/400/230V | 250 | 400 | 230 | 126x136x117 | 126 | 136 | 96 | 121 | 117 |
| PTM320/230/12V | 320 | 230 | 12 | 126x136x127 | 126 | 136 | 96 | 121 | 127 |
| PTM320/230/24V | 320 | 230 | 24 | 126x136x127 | 126 | 136 | 96 | 121 | 127 |
| PTM320/230/110V | 320 | 230 | 110 | 126x136x127 | 126 | 136 | 96 | 121 | 127 |
| PTM320/230/230V | 320 | 230 | 230 | 126x136x127 | 126 | 136 | 96 | 121 | 127 |
| PTM320/400/12V | 320 | 400 | 12 | 126x136x127 | 126 | 136 | 96 | 121 | 127 |
| PTM320/400/24V | 320 | 400 | 24 | 126x136x127 | 126 | 136 | 96 | 121 | 127 |
| PTM320/400/230V | 320 | 400 | 230 | 126x136x127 | 126 | 136 | 96 | 121 | 127 |
