DIP-Switches, DS series

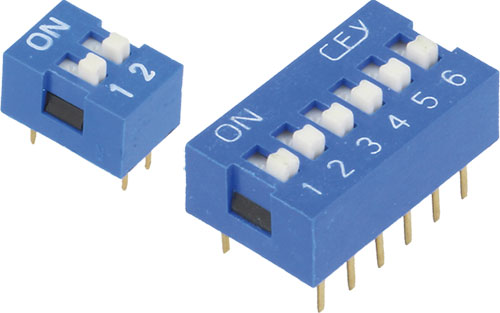

DIP-Switches, DS series, DS-02, DS-03, DS-04, DS-05, DS-06, DS-08, DS-09, DS-10, DS-12 |EN|

Manufacturer	NINIGI
Type of switch	DIP-SWITCH
Mounting	THT
Switching method*	ON-OFF
Terminal pitch	2.54mm
Row pitch	7.62mm
Max. contact resistance:	100mΩ
Operating temperature	-25...80°C
Positions	2
Features	raised actuator
DC contacts rating @R**	0.05A / 12V DC

* the position in bracket indicates momentary position.
** at resistive load

Symbol	Poles number	Overall len.
		[mm]
DS-02	2	6.54
DS-03	3	9.08
DS-04	4	11.62
DS-05	5	14.16
DS-06	6	16.7
DS-08	8	21.78
DS-09	9	24.32
DS-10	10	26.86
DS-12	12	31.94
