DIP-Switches, EAH series

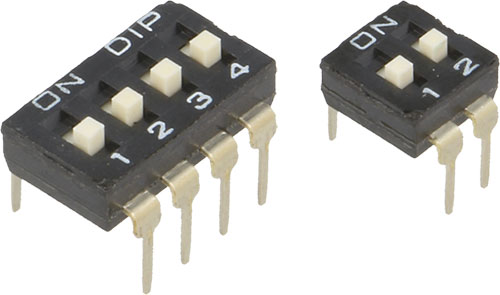

DIP-Switches, EAH series, EAH102E, EAH104E, EAH106E, EAH108E |EN|

Manufacturer	DIPTRONICS
Type of switch	DIP-SWITCH
Mounting	THT
Switching method*	ON-OFF
Terminal pitch	2.54mm
Row pitch	7.62mm
Flammability rating	UL94V-0
Mechanical durability	2000 cycles
Test voltage	500V
Min. insulation resistance	1000MΩ
Max. contact resistance:	50mΩ
Contact plating	gold-plated
Operating temperature	-25...70°C
Positions	2
Features	raised actuator
DC contacts rating @R**	0.1A / 24V DC

* the position in bracket indicates momentary position.
** at resistive load

Symbol	Poles number	Overall len.	Body dim.
		[mm]	[mm]
EAH102E	2	6.02	6.02x6.2x3.6
EAH104E	4	11.1	11.1x6.2x3.6
EAH106E	6	16.18	16.18x6.2x3.6
EAH108E	8	21.26	21.26x6.2x3.6
