DIP-Switches, NHD series

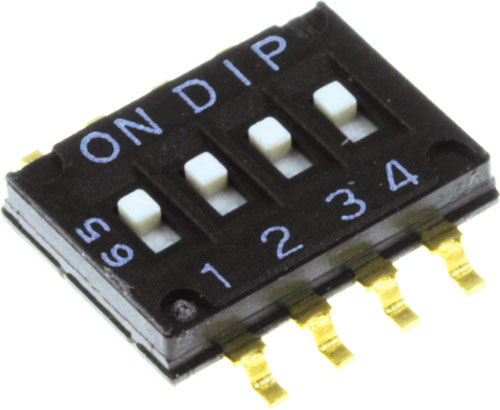

DIP-Switches, NHD series, NHDS04, NHDFS04, NHDS08 |EN|

Manufacturer	CANAL ELECTRONIC
Type of switch	DIP-SWITCH
Mounting	SMT
Switching method*	ON-OFF
Terminal pitch	1.27mm
Flammability rating	UL94V-0
Mechanical durability	1000 cycles
Min. insulation resistance	100MΩ
Max. contact resistance:	50mΩ
Contact material	copper
Contact plating	gold-plated
Body material	thermoplastic
Actuator material	thermoplastic material PPA
Operating temperature	-20...85°C
Positions	2
Features	flat actuator
DC contacts rating @R**	0.1A / 50V DC

* the position in bracket indicates momentary position.
** at resistive load

Symbol: (NHDS04, NHDS08)
Row pitch	6.15mm
Symbol: (NHDFS04)
Row pitch	7.62mm

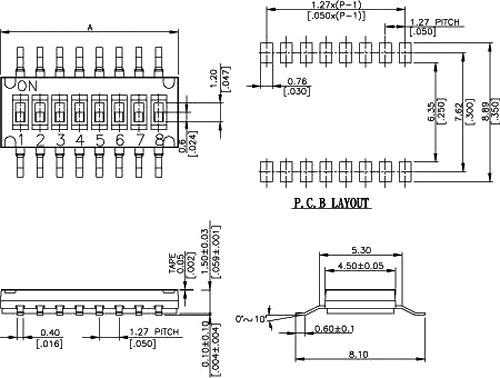

Symbol	Body dimensions	Dimensions	Poles number	Overall len.
	[mm]			[mm]
NHDS04	6.38x4.5x1.4	Fig. 1.	4	6.38
NHDFS04	6.38x4.5x1.4	Fig. 2.	4	6.38
NHDS08	11.39x4.5x1.4	Fig. 2.	8	11.39
