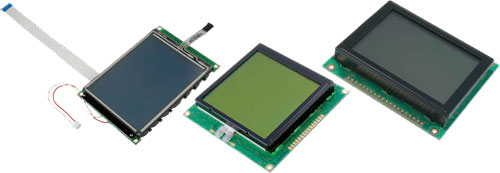

Display: LCD; graphical; RAYSTAR OPTRONICS
| Manufacturer | RAYSTAR OPTRONICS |
| Kind of display | graphical |
| Display | LCD |
| Illumination | LED |
| Touchpad | none |
Tape ph:
Usup:
- 2.7...5.5V DC (RG160160A-TIY-V, RG320240A-FHW-V, RG320240A-GHW-V)
- 3...3.6V DC (RG12864B1-BIW-V, RX24064A1-FHW)
- 3...5.5V DC (RG128128B1-BIW-X, RG128128B1-FHW-X, RG160128A-xxW-V, RG240128A-xxW-V, RG240128B-BIW-V, RG240128B-GHW-V, RG240128B-YHY-M, RG24064A-xxW-V)
- 4.5...5.5V DC (RG12864A-xxx, RG12864B-xxx, RG12864C-xxW-V, RG12864F-FHW-M, RG12864F-FHW-V, RG12864K-BIW-VBG, RG16080B1-FHW-V, RG16080D-FHW-V, RG19264A-FHW-X, RG20232A-BIW-V, RG320240A1-BIW-V, RG320240A1-FHW-V, RG320240B-xxW-V)
- 5V DC (RG160128A1-YHY-X, RG160160A-YHY-X, RG320240A-BIW-V, RG320240A-BIW-V-0)
| Symbol | Window dimensions | Resolution | Display technology | Kind of controller | Backgr. colour | Backlight colour |
|---|---|---|---|---|---|---|
| [mm] | ||||||
| RG128128B1-BIW-X | 50x49 | 128x128 | STN Negative | RA6963 | blue | white |
| RG128128B1-FHW-X | 50x49 | 128x128 | FSTN Positive | - | - | white |
| RG12864A2-FHW-VBA | 72x40 | 128x128 | FSTN Positive | ST7920 | - | white |
| RG12864A-BIG-V | 72x40 | 128x64 | STN Negative | NT7107T2, NT7108T2 | blue | - |
| RG12864A-BIW-V | 72x40 | 128x64 | STN Negative | NT7107 + NT7108 / NT7107T2 + NT7108T2 | blue | white |
| RG12864A-BIY-V | 72x40 | 128x64 | STN Negative | NT7107 + NT7108 / NT7107T2 + NT7108T2 | blue | yellow-green |
| RG12864A-FHC-V | 72x40 | 128x64 | FSTN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | grey | RGB |
| RG12864A-FHG-V | 72x40 | 128x64 | FSTN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | - | green |
| RG12864A-FHY-V | 72x40 | 128x64 | FSTN Positive | NT7108T2 | - | yellow |
| RG12864A-GHC-V | 72x40 | 128x64 | STN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | grey | RGB |
| RG12864A-GHY-V | 72x40 | 128x64 | STN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | grey | yellow-green |
| RG12864A-TIG-V | 72x40 | 128x64 | FSTN Negative | NT7107 + NT7108 / NT7107T2 + NT7108T2 | - | green |
| RG12864A-TIY-V | 72x40 | 128x64 | FSTN Negative | NT7107T2, NT7108T2 | - | yellow-green |
| RG12864A-YHG-V | 72x40 | 128x64 | STN Positive | NT7107T2, NT7108T2 | green | yellow |
| RG12864A-YHY-X | 72x40 | 128x64 | STN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | yellow-green | yellow-green |
| RG12864B1-BIW-V | 58.8x31.4 | 128x64 | STN Negative | NT7107 + NT7108 / NT7107T2 + NT7108T2 | blue | white |
| RG12864B-BIW-V | 58.8x31.4 | 128x64 | STN Negative | NT7107 + NT7108 / NT7107T2 + NT7108T2 | blue | white |
| RG12864B-FHW-V | 58.8x31.4 | 128x64 | FSTN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | - | white |
| RG12864B-FHW-X | 58.8x31.4 | 128x64 | FSTN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | - | white |
| RG12864B-GHW-V | 58.8x31.4 | 128x64 | STN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | grey | white |
| RG12864B-TIW-V | 58.8x31.4 | 128x64 | FSTN Negative | NT7107 + NT7108 / NT7107T2 + NT7108T2 | - | white |
| RG12864B-YHW-V | 58.8x31.4 | 128x64 | STN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | yellow-green | white |
| RG12864C-BIW-V | 62x44 | 128x64 | STN Negative | NT7107 + NT7108 / NT7107T2 + NT7108T2 | blue | white |
| RG12864C-FHW-V | 62x44 | 128x64 | FSTN Positive | NT7107T2, NT7108T2 | - | white |
| RG12864C-GHW-V | 62x44 | 128x64 | STN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | grey | white |
| RG12864C-TIW-V | 62x44 | 128x64 | FSTN Negative | NT7108T2 | - | white |
| RG12864C-YHW-V | 62x44 | 128x64 | STN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | yellow-green | white |
| RG12864F-FHW-M | 72x40 | 128x64 | FSTN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | - | white |
| RG12864F-FHW-V | 72x40 | 128x64 | FSTN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | - | white |
| RG12864K-BIW-VBG | 72x40 | 128x64 | STN Negative | ST7920 | blue | white |
| RG160128A1-YHY-X | 101x82 | 160x128 | STN Positive | RA6963 | yellow-green | yellow-green |
| RG160128A-BIW-V | 101x82 | 160x128 | STN Negative | RA6963 | blue | white |
| RG160128A-FHW-V | 101x82 | 160x128 | FSTN Positive | RA6963 | - | white |
| RG160128A-GHW-V | 101x82 | 160x128 | STN Positive | RA6963 | grey | white |
| RG160128A-TIW-V | 101x82 | 160x128 | FSTN Negative | RA6963 | - | white |
| RG160128A-YHW-V | 101x82 | 160x128 | STN Positive | RA6963 | yellow-green | white |
| RG160160A-TIY-V | 62x62 | 160x160 | FSTN Negative | - | - | yellow |
| RG160160A-YHY-X | 62x62 | 160x160 | STN Positive | - | yellow-green | yellow-green |
| RG16080B1-FHW-V | 72x40 | 160x80 | FSTN Positive | RA6963 | - | white |
| RG16080D-FHW-V | 72x40 | 160x80 | FSTN Positive | RA6963 | - | white |
| RG19264A-FHW-X | 102x39 | 192x64 | FSTN Positive | NT7107 + NT7108 / NT7107T2 + NT7108T2 | - | white |
| RG20232A-BIW-V | 123x23 | 202x32 | STN Negative | SBN1661G | blue | white |
| RG240128A-BIW-V | 128x74 | 240x128 | STN Negative | RA6963 | blue | white |
| RG240128A-FHW-V | 128x74 | 240x128 | FSTN Positive | RA6963 | - | white |
| RG240128A-TIW-V | 128x74 | 240x128 | FSTN Negative | RA6963 | - | white |
| RG240128B-BIW-V | 114x64 | 240x128 | STN Negative | RA6963 | blue | white |
| RG240128B-FHW-V | 114x64 | 240x128 | FSTN Positive | RA6963 | - | white |
| RG240128B-FHY-M | 114x64 | 240x128 | FSTN Positive | RA6963 | - | yellow |
| RG240128B-GHW-V | 114x64 | 240x128 | STN Positive | RA6963 | grey | white |
| RG240128B-TIW-V | 114x64 | 240x128 | FSTN Negative | RA6963 | - | white |
| RG240128B-YHY-M | 114x64 | 240x128 | STN Positive | RA6963 | yellow-green | yellow-green |
| RG24064A-BIW-V | 133x39 | 240x64 | STN Negative | RA6963 | blue | white |
| RG24064A-FHW-V | 133x39 | 240x64 | FSTN Positive | RA6963 | - | white |
| RG24064A-GHW-V | 133x39 | 240x64 | STN Positive | RA6963 | grey | white |
| RG24064A-TIW-V | 133x39 | 240x64 | FSTN Negative | RA6963 | - | white |
| RG24064A-YHW-V | 133x39 | 240x64 | STN Positive | RA6963 | yellow-green | white |
| RG320240A1-BIW-V | 122x92 | 320x240 | STN Negative | RA8835 | blue | white |
| RG320240A1-BIW-V-2 | 122x92 | 320x240 | STN Negative | RA8835 | blue | white |
| RG320240A1-FHW-V | 122x92 | 320x240 | FSTN Positive | RA8835 | - | white |
| RG320240A1-GHW-V | 122x92 | 320x240 | STN Positive | RA8835 | grey | white |
| RG320240A1-TIW-V | 122x92 | 320x240 | FSTN Negative | RA8835 | - | white |
| RG320240A-BIW-V | 122x92 | 320x240 | STN Negative | - | blue | white |
| RG320240A-BIW-V-0 | 122x92 | 320x240 | STN Negative | - | blue | white |
| RG320240A-FHW-V | 122x92 | 320x240 | FSTN Positive | - | - | white |
| RG320240A-GHW-V | 122x92 | 320x240 | STN Positive | - | grey | white |
| RG320240A-TIW-V | 122x92 | 320x240 | FSTN Negative | - | - | white |
| RG320240B-BIW-V | 120.14x92.14 | 320x240 | STN Negative | RA8835 | blue | white |
| RG320240B-FHW-V | 120.14x92.14 | 320x240 | FSTN Positive | RA8835 | - | white |
| RG320240B-GHW-V | 120.14x92.14 | 320x240 | STN Positive | RA8835 | grey | white |
| RG320240B-TIW-V | 120.14x92.14 | 320x240 | FSTN Negative | RA8835 | - | white |
| RG320240C3-TIW-V-0 | - | 320x240 | FSTN Negative | - | black | white |
| RX24064A1-FHW | 130.2x37.6 | 240x64 | FSTN Positive | ST7565P | - | white |
| Symbol | Dimensions | Number of pins | Layout | Contacts ph |
|---|---|---|---|---|
| [mm] | [mm] | |||
| RG128128B1-BIW-X | 65.5x70x10.2 | 20 | 1x20 | - |
| RG128128B1-FHW-X | 65.5x70x14 | - | - | - |
| RG12864A2-FHW-VBA | 93x70x13.6 | 18 | 1x18 | 2.54 |
| RG12864A-BIG-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-BIW-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-BIY-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-FHC-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-FHG-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-FHY-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-GHC-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-GHY-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-TIG-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-TIY-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-YHG-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864A-YHY-X | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG12864B1-BIW-V | 75x52.7x8.9 | 20 | 1x20 | 2.54 |
| RG12864B-BIW-V | 75x52.7x8.9 | 20 | 1x20 | 2.54 |
| RG12864B-FHW-V | 75x52.7x8.9 | 20 | 1x20 | 2.54 |
| RG12864B-FHW-X | 75x52.7x8.9 | 20 | 1x20 | 2.54 |
| RG12864B-GHW-V | 75x52.7x8.9 | 20 | 1x20 | 2.54 |
| RG12864B-TIW-V | 75x52.7x8.9 | 20 | 1x20 | 2.54 |
| RG12864B-YHW-V | 75x52.7x8.9 | 20 | 1x20 | 2.54 |
| RG12864C-BIW-V | 78x70x14.3 | 20 | 1x20 | 2.54 |
| RG12864C-FHW-V | 78x70x14.3 | 20 | 1x20 | 2.54 |
| RG12864C-GHW-V | 78x70x14.3 | 20 | 1x20 | 2.54 |
| RG12864C-TIW-V | 78x70x14.3 | 20 | 1x20 | 2.54 |
| RG12864C-YHW-V | 78x70x14.3 | 20 | 1x20 | 2.54 |
| RG12864F-FHW-M | 95.5x50.2x13.6 | 20 | 2x10 | 2.54 |
| RG12864F-FHW-V | 95.5x50.2x13.6 | 20 | 2x10 | 2.54 |
| RG12864K-BIW-VBG | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG160128A1-YHY-X | 129x102 | 20 | 2x10 | - |
| RG160128A-BIW-V | 129x102x16.5 | 20 | 2x10 | 2.54 |
| RG160128A-FHW-V | 129x102x16.5 | 20 | 2x10 | 2.54 |
| RG160128A-GHW-V | 129x102x16.5 | 20 | 2x10 | 2.54 |
| RG160128A-TIW-V | 129x102x16.5 | 20 | 2x10 | 2.54 |
| RG160128A-YHW-V | 129x102x16.5 | 20 | 2x10 | 2.54 |
| RG160160A-TIY-V | 89x85x14.5 | 15 | 1x15 | 2.54 |
| RG160160A-YHY-X | 89x85x14.5 | 15 | 1x15 | 2.54 |
| RG16080B1-FHW-V | 100x54x14.6 | 20 | 1x20 | 2.54 |
| RG16080D-FHW-V | 93x70x13.6 | 20 | 1x20 | 2.54 |
| RG19264A-FHW-X | 120x62x12.9 | 21 | 1x21 | 2.54 |
| RG20232A-BIW-V | 146x43x13.7 | 20 | 1x20 | 2.54 |
| RG240128A-BIW-V | 170x93.4x12.4 | 20 | 2x10 | 2.54 |
| RG240128A-FHW-V | 170x93.4x12.4 | 20 | 2x10 | 2.54 |
| RG240128A-TIW-V | 170x93.4x12.4 | 20 | 2x10 | 2.54 |
| RG240128B-BIW-V | 144x104x14.3 | 20 | 1x20 | 2.54 |
| RG240128B-FHW-V | 144x104x14.3 | 20 | 1x20 | 2.54 |
| RG240128B-FHY-M | 144x104x14.3 | 20 | 1x20 | 2.54 |
| RG240128B-GHW-V | 144x104x14.3 | 20 | 1x20 | 2.54 |
| RG240128B-TIW-V | 144x104x14.3 | 20 | 1x20 | 2.54 |
| RG240128B-YHY-M | 144x104x14.3 | 20 | 1x20 | 2.54 |
| RG24064A-BIW-V | 180x65x12.3 | 20 | 2x10 | 2.54 |
| RG24064A-FHW-V | 180x65x12.3 | 20 | 2x10 | 2.54 |
| RG24064A-GHW-V | 180x65x12.3 | 20 | 2x10 | 2.54 |
| RG24064A-TIW-V | 180x65x12.3 | 20 | 2x10 | 2.54 |
| RG24064A-YHW-V | 180x65x12.3 | 20 | 2x10 | 2.54 |
| RG320240A1-BIW-V | 160x109x13 | 20 | 1x20 | - |
| RG320240A1-BIW-V-2 | 160x109x13 | 20 | 1x20 | - |
| RG320240A1-FHW-V | 160x109x13 | 20 | 1x20 | - |
| RG320240A1-GHW-V | 166.8x109x13 | 20 | 1x20 | - |
| RG320240A1-TIW-V | 166x109x13 | 20 | 1x20 | - |
| RG320240A-BIW-V | 166x109x13 | 14 | 1x14 | - |
| RG320240A-BIW-V-0 | 166x109x13 | 14 | 1x14 | - |
| RG320240A-FHW-V | 166x109x13 | 14 | 1x14 | - |
| RG320240A-GHW-V | 166x109x13 | 14 | 1x14 | - |
| RG320240A-TIW-V | 166x109x13 | 14 | 1x14 | - |
| RG320240B-BIW-V | 148.02x120.24x15.6 | 20 | 2x10 | 2.54 |
| RG320240B-FHW-V | 148.02x120.24x15.6 | 20 | 2x10 | 2.54 |
| RG320240B-GHW-V | 148.02x120.24x15.6 | 20 | 2x10 | 2.54 |
| RG320240B-TIW-V | 148.02x120.24x15.6 | 20 | 2x10 | 2.54 |
| RX24064A1-FHW | 142.5x51.7x14.9 | 36 | - | - |
