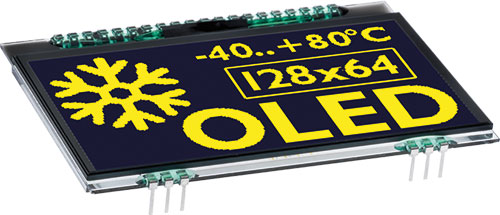

Display: OLED; graphical; DISPLAY VISIONS
| Manufacturer | DISPLAY VISIONS |
| Type of display | OLED |
| Kind of display | graphical |
Related items:
- EAFL-20P (EAOLEDL128-6xxA)
- EATOUCH128-2 (EAOLEDL128-6xxA)
- EAWF100-04S (EAOLEDL128-6xxA)
| Symbol | Window dimensions | Resolution | Controller | Colour | Screen size | Interface | No. of pins |
|---|---|---|---|---|---|---|---|
| [mm] | ["] | ||||||
| EAOLEDM204-GGA | 16.967x47.094 | 4x20 | SSD1311 | yellow | 2 | I2C; SPI | 14 |
| EAOLEDM204-LWA | 16.967x47.094 | 4x20 | SSD1311 | white | 2 | I2C; SPI | 14 |
| EAW064048-XALG | 13.42x10.06 | 64x48 | SSD1306B | yellow | 0.66 | 8bit; I2C; SPI | 28 |
| EAW096016-XALW | 21.104x3.504 | 96x16 | SSD1306B | white | 1.18 | I2C | 14 |
| EAW096016-XBLW | 21.104x3.504 | 96x16 | SSD1306B | white | 0.84 | 3-wire; 4-wire; I2C; SPI | 19 |
| EAOLEDS102-6GGA | 22.375x33.02 | 102x64 | SSD1306B | yellow | 1.7 | I2C; SPI | 20 |
| EAOLEDS102-6LGA | 36x25 | 102x64 | SSD1311 | yellow | 1.7 | I2C; SPI | 28 |
| EAOLEDS102-6LWA | 22.375x33.02 | 102x64 | SSD1306B | white | 1.7 | I2C; SPI | 20 |
| PLUGS102-6GTC | 25x36 | 102x64 | - | - | 1.7 | I2C; RS232; SPI; USB | 26 |
| PLUGS102-6GTCZ | 25x36 | 102x64 | - | - | 1.7 | I2C; RS232; SPI; USB | 26 |
| EAOLEDL128-6GGA | 64x37 | 128x64 | SSD1309 | yellow | 2.9 | I2C; SPI | - |
| EAOLEDL128-6LGA | 64x37 | 128x64 | SSD1309 | green | 2.9 | I2C; SPI | - |
| EAOLEDL128-6LWA | 64x37 | 128x64 | SSD1309 | white | 2.9 | I2C; SPI | - |
| EAOLEDM128-6GGA | 27.815x47.975 | 128x64 | SSD1306 | yellow | 2.3 | I2C; SPI | 26 |
| EAOLEDM128-6LGA | - | 128x64 | - | yellow | 2.3 | - | - |
| EAOLEDM128-6LWA | 27.815x47.975 | 128x64 | SSD1306 | white | 2.3 | I2C; SPI | 26 |
| EAW128064-XALG | 55.01x27.49 | 128x64 | SSD1309Z | yellow | 2.42 | 8bit; I2C; SPI | 31 |
| PLUGL128-6GTC | 32.94x60.78 | 128x64 | - | - | 2.9 | I2C; RS232; SPI; USB | 26 |
| PLUGL128-6GTCZ | 32.94x60.78 | 128x64 | - | - | 2.9 | I2C; RS232; SPI; USB | 26 |
| EAW128128-XALG | 26.86x26.83 | 128x128 | SSD1327ZB | yellow | 1.5 | 8bit; I2C; SPI | 24 |
| EAW128128-XRLB | 30x30 | 128x128 | SSD1327ZB | blue | 1.2 | 8bit; I2C; SPI | 24 |
| EAW128128-XRLG | 30x30 | 128x128 | SSD1327ZB | yellow | 1.2 | 8bit; I2C; SPI | 24 |
| EAW128128-XRLW | 30x30 | 128x128 | SSD1327ZB | white | 1.2 | 8bit; I2C; SPI | 24 |
| EAW256064-XALG | 76.778x19.178 | 256x64 | SSD1322 | yellow | 3.12 | 8bit; I2C; SPI | 30 |
| EAW256064-XGLG | 135.65x33.89 | 256x64 | SSD1322 | yellow | 5.5 | 8bit; I2C; SPI | 30 |
| Symbol | Tape ph | Contacts ph | Dim. |
|---|---|---|---|
| [mm] | [mm] | [mm] | |
| EAOLEDM204-GGA | - | 2.54 | 61x26x3.3 |
| EAOLEDM204-LWA | - | 2.54 | 61x26x2.1 |
| EAW064048-XALG | 0.65 | - | 18.46x18.1x1.3 |
| EAW096016-XALW | 0.62 | - | 29.1x9.2x1.3 |
| EAW096016-XBLW | 0.3 | - | 29.1x9x1.3 |
| EAOLEDS102-6GGA | - | 2.54 | 39x38x3.3 |
| EAOLEDS102-6LGA | - | 2.54 | 39x37.8x1 |
| EAOLEDS102-6LWA | - | 2.54 | 39x38x2.1 |
| PLUGS102-6GTC | 0.5 | 2.54 | 55x54x15 |
| PLUGS102-6GTCZ | 0.5 | 2.54 | 55x54x21 |
| EAOLEDL128-6GGA | - | 2.54 | 68x51 |
| EAOLEDL128-6LGA | - | 2.54 | 68x51 |
| EAOLEDL128-6LWA | - | 2.54 | 68x51 |
| EAOLEDM128-6GGA | - | 2.54 | 55x43x3.3 |
| EAOLEDM128-6LWA | - | 2.54 | 55x43x2.1 |
| EAW128064-XALG | 0.5 | - | 60.5x37x2.15 |
| PLUGL128-6GTC | 0.5 | 2.54 | 82x67x15 |
| PLUGL128-6GTCZ | 0.5 | 2.54 | 82x67x21 |
| EAW128128-XALG | 0.5 | - | 33.8x36.5x2.05 |
| EAW128128-XRLB | 0.5 | - | 36.98x41.23x2.05 |
| EAW128128-XRLG | 0.5 | - | 36.98x41.23x2.05 |
| EAW128128-XRLW | 0.5 | - | 36.98x41.23x2.05 |
| EAW256064-XALG | 0.5 | - | 88x27.8x2.05 |
| EAW256064-XGLG | 0.5 | - | 146x45x2.05 |
| Symbol | Usup | Contrast | Luminosity | Features | Touchpad |
|---|---|---|---|---|---|
| [V DC] | [cd/m2] | ||||
| EAOLEDM204-GGA | 2.4...3.6/4.4...5.5 | 2000:1 | 130 | protective glass | none |
| EAOLEDM204-LWA | 2.4...3.6/4.4...5.5 | 2000:1 | 90 | - | none |
| EAW064048-XALG | 2.8...3.3 | 2000:1 | 120...150 | - | none |
| EAW096016-XALW | 2.8...3.3 | 2000:1 | 100...120 | - | none |
| EAW096016-XBLW | 2.8...3.3 | 2000:1 | 100...120 | - | none |
| EAOLEDS102-6GGA | 1.8...3.3 | 2000:1 | 90...100 | protective glass | none |
| EAOLEDS102-6LGA | 1.8...3.3 | 2000:1 | 90...100 | - | none |
| EAOLEDS102-6LWA | 1.8...3.3 | 2000:1 | 90...100 | - | none |
| PLUGS102-6GTC | 3.1...5.25 | - | - | - | capacitive |
| PLUGS102-6GTCZ | 3.1...5.25 | - | - | - | capacitive |
| EAOLEDL128-6GGA | 1.8...3.3 | - | - | protective glass | none |
| EAOLEDL128-6LGA | 1.8...3.3 | - | - | - | none |
| EAOLEDL128-6LWA | 1.8...3.3 | - | - | - | none |
| EAOLEDM128-6GGA | 1.8...3.3 | 2000:1 | 90...100 | protective glass | none |
| EAOLEDM128-6LGA | - | - | - | - | none |
| EAOLEDM128-6LWA | 1.8...3.3 | 2000:1 | 90...100 | - | none |
| EAW128064-XALG | 2.8...3.3 | 2000:1 | 70...90 | - | none |
| PLUGL128-6GTC | 3.1...5.25 | - | - | - | capacitive |
| PLUGL128-6GTCZ | 3.1...5.25 | - | - | - | capacitive |
| EAW128128-XALG | 2.8...3.3 | 2000:1 | 60...80 | - | none |
| EAW128128-XRLB | 2.8...3.3 | 2000:1 | 60...80 | - | none |
| EAW128128-XRLG | 2.8...3.3 | 2000:1 | 60...80 | - | none |
| EAW128128-XRLW | 2.8...3.3 | 2000:1 | 60...80 | - | none |
| EAW256064-XALG | 2.8...3.3 | 2000:1 | 100...120 | - | none |
| EAW256064-XGLG | 2.8...3.3 | 2000:1 | 60...80 | - | none |
