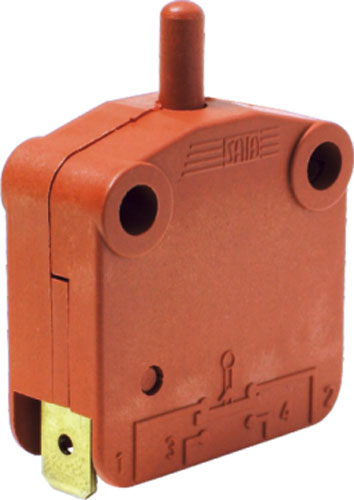

Door switches, XP series
| Manufacturer | SAIA-BURGESS |
| Type of switch | door |
| AC load rating @R* | 16A / 400V AC |
| Operating Force | 3N |
| Features | with pin |
* at resistive load
| Body dimensions | 30x12x32mm |
| Mechanical durability | 10000000 cycles |
| Operating temperature | -20...85°C |
| IP rating | IP40 |
| Output configuration | Fig. 1. |
| Positions | 2 |
| Key stroke | 3mm |
| Contact plating | silver plated |
| Contact material | bronze |
| Leads | connectors |
| Leads dimensions | 6.3x0.8mm |
| Symbol |
Contacts layout |
Switch. method* |
| XP2Z11 |
SPST-NO + SPST-NC |
ON-(ON) |
| XP52Z11 |
SPST-NO |
OFF-(ON) |
* the position in bracket indicates momentary position.
