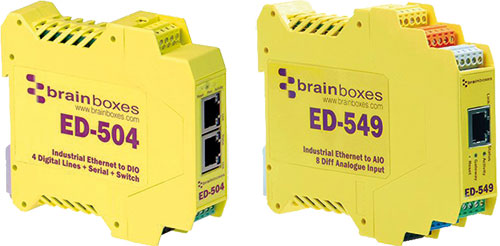

ED; BRAINBOXES
| Manufacturer | BRAINBOXES |
| Mounting | for DIN rail mounting |
| Enclosure material | plastic |
| Usup | 5...30V DC |
| Operating temp. | -30...80°C |
| IP rating | IP20 |
| Related items | PW-600, PW-650 |
| Number of ports | 1 |
| Type of automation module | Modbus gateway |
| Symbol | Inputs | Kind of IN1 | Outputs | Kind of OUT1 |
|---|---|---|---|---|
| ED-516 | 16 | counter, NPN, PNP | - | - |
| ED-527 | - | - | 16 | OC |
| ED-538 | 8 | counter, NPN, PNP | 4 | SPST-NO |
| ED-549 | 8 | analogue | - | - |
| ED-560 | - | - | 4 | analogue |
| ED-582 | 1 | RTD | - | - |
| ED-588 | 8 | counter, NPN, PNP | 8 | OC |
| ED-593 | 8 | thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T | - | - |
| Symbol | Connection | Interface | Width | Ht. | Dp. |
|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | |||
| ED-516 | NuDAM/ADAM x1, RJ45 x1 | Ethernet | 22.6 | 102 | 128 |
| ED-527 | NuDAM/ADAM x1, RJ45 x1 | Ethernet | 22.6 | 102 | 128 |
| ED-538 | NuDAM/ADAM x1, RJ45 x1 | Ethernet | 22.6 | 102 | 128 |
| ED-549 | NuDAM/ADAM x1, RJ45 x1 | Ethernet; RS485 | 22.6 | 102 | 128 |
| ED-560 | NuDAM/ADAM x1, RJ45 x1 | Ethernet; RS485 | 23 | 99 | 114 |
| ED-582 | NuDAM/ADAM x1, RJ45 x1 | Ethernet | 23 | 102 | 129 |
| ED-588 | NuDAM/ADAM x1, RJ45 x1 | Ethernet | 22.6 | 102 | 128 |
| ED-593 | NuDAM/ADAM x1, RJ45 x1 | Ethernet | 23 | 102 | 129 |
