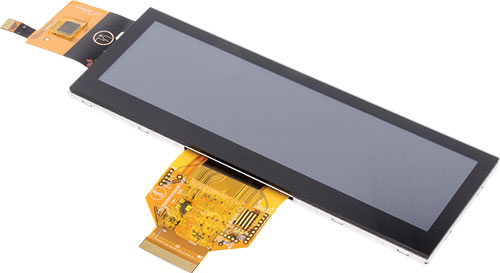

ELECTRONIC ASSEMBLY TFT graphic displays
| Manufacturer | DISPLAY VISIONS |
| Type of display | TFT |
| Illumination | LED |
Features:
- smart (EAEDIPTFTxxx)
Touchpad:
- none (EAW800X-50AILW, EAW1280X-101ALW, EATFT070-84ANN, EATFT057-32CNN, EATFT057-32ATS, EATFT052-41ANN, EATFT050-84BTS, EATFT050-84ANN, EATFT043-42ANN, EATFT040-77AINN, EATFT035-34AINN, EATFT035-32BTS, EATFT035-32ANN, EATFT02xxxNN, EATFT009-81AINN, EARAPICOTFT009, EAR480X-43ALW, EAR1024X-70BLW, EAEDIPTFTxx-A)
- capacitive (EATFT070-84ATS, EATFT052-41ATS, EATFT043-42BITC, EATFT043-42ATS, EATFT040-77AITC, EATFT035-34AITC, EATFT035-32ATS, EATFT028-23AITC, EATFT020-23AITC, EARAPICOTFT009TC, EAR1024X-70BLWTS, EAEDIPTFT70-ATC, EAEDIPTFT43-ATS, EAEDIPTFT43-ATC)
- resistance (EAxxxTP)
| Symbol | Kind of display | Backlight colour | Usup | Layout | Tape pitch | Number of pins | Interface | Manufacturer series | Screen size | Luminosity | Contrast | Resolution | Dimensions | Window dimensions | Related items | Application - series/manufacturer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V DC] | [mm] | ["] | [cd/m2] | [mm] | [mm] | |||||||||||
| EAW800X-50AILW | graphical | - | 3...3.6 | 1x40 | 0.5 | 40 | - | - | 5 | 850...1000 | 1000:1 | 800x480 | 124x78.5x9.1 | 64.8x108 | - | - |
| EAW1280X-101ALW | graphical | - | 2.7...3.3 | 1x6 | - | 6 | LVDS | - | 10.1 | 1000...1100 | 800:1 | 1280x800 | 235x161x13.1 | 138.1x219.46 | - | - |
| EATFT070-84ATS | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 7 | 250...350 | 500:1 | 800x480 | 165x100x5.8 | 154.08x85.92 | - | - |
| EATFT070-84ATP | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 7 | 240...320 | 500:1 | 800x480 | 165x100x5.8 | 154.08x85.92 | - | - |
| EATFT070-84ANN | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 7 | 350...460 | 500:1 | 800x480 | 165x100x5.8 | 154.08x85.92 | - | - |
| EATFT057-32CNN | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | - | 5.7 | 900 | - | 320x240 | 141.12x101.55x6.05 | 115.2x86.4 | - | - |
| EATFT057-32ATS | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 5.7 | 320...400 | 250:1 | 320x240 | 141.1x101.6x6.5 | 115.2x86.4 | - | - |
| EATFT057-32ATP | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 5.7 | 280...350 | 250:1 | 320x240 | 141.1x101.6x6.5 | 115.2x86.4 | - | - |
| EATFT052-41ATS | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 5.2 | 600...700 | 500:1 | 480x128 | 140.4x49.9x3 | 127.152x33.9072 | - | - |
| EATFT052-41ANN | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 5.2 | 800...850 | 500:1 | 480x128 | 140.4x49.9x3 | 127.152x33.9072 | - | - |
| EATFT050-84BTS | graphical | - | 3...3.6 | 1x10 | 0.5 | 10 | I2C | - | 5 | 650...750 | 500:1 | 800x480 | 120.7x75.8x4.475 | 108x64.8 | - | - |
| EATFT050-84ATP | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 5 | 550...650 | 500:1 | 800x480 | 120.7x75.8x2.8 | 108x64.8 | - | - |
| EATFT050-84ANN | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 5 | 800...950 | 500:1 | 800x480 | 120.7x75.8x2.8 | 108x64.8 | - | - |
| EATFT043-42BITC | graphical | - | 3...3.6 | 1x40 | 0.5 | 40 | I2C; SPI | - | 4.3 | 700...800 | 800:1 | 480x272 | 114x84x4.77 | 95.04x53.86 | - | - |
| EATFT043-42ATS | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 4.3 | 320...400 | 500:1 | 480x272 | 105.5x67.2x3 | 95.04x53.86 | - | - |
| EATFT043-42ATP | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 4.3 | 280...350 | 500:1 | 480x272 | 105.5x67.2x3 | 95.04x53.86 | - | - |
| EATFT043-42ANN | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 4.3 | 400...500 | 500:1 | 480x272 | 105.5x67.2x3 | 95.04x53.86 | - | - |
| EATFT040-77AITC | graphical | - | 3...3.6 | 1x40 | 0.5 | 40 | 18bit RGB; SPI | - | 3.95 | 700 | 1000:1 | 720x720 | 90.1x90.1x3.84 | 71.93x71.93 | - | - |
| EATFT040-77AINN | graphical | - | 3...3.6 | 1x40 | 0.5 | 40 | 18bit RGB; SPI | - | 3.95 | 700 | 1000:1 | 720x720 | 90.1x90.1x3.84 | 71.93x71.93 | - | - |
| EATFT035-34AITC | graphical | - | 2.5...3.3 | 1x39 | 0.3 | 39 | I2C; SPI | - | 3.5 | 510...1200 | 700:1 | 480x320 | 65x100x4.4 | 73.44x48.96 | - | - |
| EATFT035-34AINN | graphical | - | 2.5...3.3 | 1x39 | 0.3 | 39 | SPI | 3.5 | 800...1400 | 700:1 | 480x320 | 54.7x82.9x2.2 | 73.44x48.96 | - | - | |
| EATFT035-32BTS | graphical | - | - | - | - | - | - | - | 3.5 | - | - | - | - | - | - | - |
| EATFT035-32ATS | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 3.5 | 280...340 | 350:1 | 320x240 | 76.9x63.9x3.26 | 70.08x52.56 | - | - |
| EATFT035-32ATP | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 3.5 | 250...300 | 350:1 | 320x240 | 76.9x63.9x3.26 | 70.08x52.56 | - | - |
| EATFT035-32ANN | graphical | white | 3...3.6 | 1x40 | 0.5 | 40 | 24bit RGB | same pinout | 3.5 | 350...420 | 350:1 | 320x240 | 76.9x63.9x3.26 | 70.08x52.56 | - | - |
| EATFT028-23AITC | graphical | - | 2.4...3.3 | 1x39 | 0.3 | 39 | I2C; SPI | - | 2.8 | 900...1000 | 800:1 | 320x240 | 58x84x4.3 | 57.6x43.2 | - | - |
| EATFT028-23AINN | graphical | - | 2.4...3.3 | 1x39 | 0.3 | 39 | SPI | - | 2.8 | 900...1000 | 800:1 | 320x240 | 48x68x2.2 | 57.6x43.2 | - | - |
| EATFT024-23ATNN | graphical | - | 3 | - | - | - | 16bit; 8080; 8bit; RGB; SPI | - | 2.4 | 270 | - | 240x320 | 42.72x84.26x3.05 | 36.72x48.96 | - | - |
| EATFT020-23AITC | graphical | - | 2.5...3.6 | 1x39 | 0.3 | 39 | I2C; SPI | - | 2 | 520...640 | 800:1 | 320x240 | 43x65x4.2 | 40.8x30.6 | - | - |
| EATFT020-23AINN | graphical | - | 2.5...3.6 | 1x39 | 0.3 | 39 | SPI | - | 2 | 800 | 800:1 | 320x240 | 36x52x2.2 | 40.8x30.6 | - | - |
| EATFT009-81AINN | graphical, matrix IPS | white | 3...3.6 | 1x13 | 0.8 | 13 | SPI | - | 0.96 | 400...500 | 800:1 | 160x80 | 13.5x27.95x1.54 | 10.8x21.696 | - | - |
| EARAPICOTFT009TC | graphical | - | 3.3 | 2x13 | - | 26 | SPI | - | 0.96 | - | - | 160x80 | 51x21x2.8 | 22.3x11.4 | RPI-PICO | Raspberry Pi |
| EARAPICOTFT009 | graphical | - | 3.3 | 2x13 | - | 26 | SPI | - | 0.96 | - | - | 160x80 | 51x21x2.8 | 22.3x11.4 | RPI-PICO | Raspberry Pi |
| EAR480X-43ALW | graphical | - | 3...3.6 | 1x40 | 0.5 | 40 | I2C | - | 4.3 | 900...1000 | 800:1 | 480x272 | 105x67.1x2.65 | 95.04x53.86 | - | - |
| EAR1024X-70BLWTS | graphical | - | 3...3.6 | 1x40 | 0.5 | 40 | I2C; LVDS | - | 7 | 1000 | 800:1 | 1024x600 | 164.9x100x7.6 | 85.92x154.21 | - | - |
| EAR1024X-70BLW | graphical | - | 3...3.6 | 1x40 | 0.5 | 40 | LVDS | - | 7 | 1000 | 800:1 | 1024x600 | 164.9x100x5.7 | 85.92x154.21 | - | - |
| EAEDIPTFT70-BTP | graphical | white | 4.9...5.1 | 2x24 | - | 48 | I2C; RS232; SPI | - | 7 | 400 | - | 800x480 | 170x112x16.2 | 155x94 | - | - |
| EAEDIPTFT70-ATP | graphical | white | 5 | 2x24 | - | 48 | I2C; RS232; SPI | - | 7 | - | - | 800x480 | 170x112 | 155x94 | - | - |
| EAEDIPTFT70-ATC | graphical | white | 5 | 2x24 | - | 48 | I2C; RS232; SPI | - | 7 | - | - | 800x480 | 170x112 | 155x94 | - | - |
| EAEDIPTFT70-A | graphical | white | 5 | 2x24 | - | 48 | I2C; RS232; SPI | - | 7 | - | - | 800x480 | 170x112 | 155x94 | - | - |
| EAEDIPTFT57-ATP | graphical | white | 5 | 2x24 | - | 48 | I2C; RS232; SPI | - | 5.7 | - | - | 640x480 | 146.4x107.2 | 117x88.2 | - | - |
| EAEDIPTFT57-A | graphical | white | 5 | 2x24 | - | 48 | I2C; RS232; SPI | - | 5.7 | - | - | 640x480 | 146.4x107.2 | 117x88.2 | - | - |
| EAEDIPTFT43-ATS | graphical | white | 5 | 2x20 | - | 40 | I2C; RS232; SPI | - | - | - | - | 480x272 | 106.8x71 | 98.7x57.5 | - | - |
| EAEDIPTFT43-ATP | graphical | white | 5 | 2x20 | - | 40 | I2C; RS232; SPI | - | 4.3 | - | - | 480x272 | 106.8x71 | 98.7x57.5 | - | - |
| EAEDIPTFT43-ATC | graphical | white | 5 | 2x20 | - | 40 | I2C; RS232; SPI | - | 4.3 | - | - | 480x272 | 106.8x71 | 98.7x57.5 | - | - |
| EAEDIPTFT32-ATP | graphical | white | 3.3...5 | 2x20 | - | 40 | I2C; RS232; SPI | - | 3.2 | - | - | 320x240 | 82x60.5 | 68x52 | - | - |
| EAEDIPTFT32-A | graphical | white | 3.3...5 | 2x20 | - | 40 | I2C; RS232; SPI | - | 3.2 | - | - | 320x240 | 82x60.5 | 68x52 | - | - |
