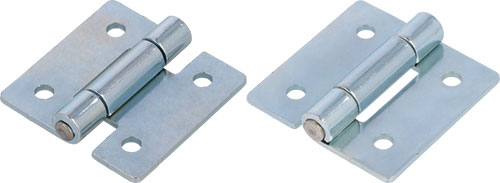

ELESA+GANTER hinges
| Manufacturer | ELESA+GANTER |
| Mounting element | hinge |
| Pin material | stainless steel |
| Mat. | stainless steel |
| Symbol | Width | Ht. | Ømount. hole | Holes pitch | Ver. |
|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | ||
| GN136-ST-30-45-B | 30 | 45 | 3.2 | 18/16.5 | with bore for countersunk screws |
| GN136-ST-40-40-B | 40 | 40 | 4.2 | 25/25 | with bore for countersunk screws |
| GN136-ST-40-40-C | 40 | 40 | 4.2 | 25/25 | with bore for countersunk screws |
| GN136-ST-50-50-B | 50 | 50 | 5.2 | 30/30 | with bore for countersunk screws |
| GN136-ST-50-50-C | 50 | 50 | 5.2 | 30/30 | with bore for countersunk screws |
| GN136-ST-60-60-B | 60 | 60 | 5.2 | 36/36 | with bore for countersunk screws |
| GN136-ST-60-60-C | 60 | 60 | 5.2 | 36/36 | with bore for countersunk screws |
| GN136NI100-50-A | 100 | 50 | - | - | for welding |
| GN136NI100-50-B | 100 | 50 | - | 80/30 | with bore for countersunk screws |
| GN136NI100-50-C | 100 | 50 | - | 80/30 | with bore for countersunk screws |
| GN136NI120-60-A | 120 | 60 | - | - | for welding |
| GN136NI120-60-B | 120 | 60 | - | 96/36 | with bore for countersunk screws |
| GN136NI120-60-C | 120 | 60 | - | 96/36 | with bore for countersunk screws |
| GN136NI30-30-A | 30 | 30 | - | - | for welding |
| GN136NI30-30-B | 30 | 30 | - | 18/18 | with bore for countersunk screws |
| GN136NI30-30-C | 30 | 30 | - | 18/18 | with bore for countersunk screws |
| GN136NI30-45-A | 30 | 45 | - | - | for welding |
| GN136NI30-45-B | 30 | 45 | - | - | with bore for countersunk screws |
| GN136NI30-45-C | 30 | 45 | - | - | with bore for countersunk screws |
| GN136NI40-40-A | 40 | 40 | - | - | for welding |
| GN136NI40-40-B | 40 | 40 | - | - | with bore for countersunk screws |
| GN136NI40-40-C | 40 | 40 | - | - | with bore for countersunk screws |
| GN136NI40-60-A | 40 | 60 | - | - | for welding |
| GN136NI40-60-B | 40 | 60 | - | - | with bore for countersunk screws |
| GN136NI40-60-C | 40 | 60 | - | - | with bore for countersunk screws |
| GN136NI45-30-A | 45 | 30 | - | - | for welding |
| GN136NI45-30-B | 45 | 30 | - | - | with bore for countersunk screws |
| GN136NI45-30-C | 45 | 30 | - | - | with bore for countersunk screws |
| GN136NI50-50-A | 50 | 50 | - | - | for welding |
| GN136NI50-50-B | 50 | 50 | - | - | with bore for countersunk screws |
| GN136NI50-50-C | 50 | 50 | - | - | with bore for countersunk screws |
| GN136NI50-75-B | 50 | 75 | - | - | assembly pass through hole |
| GN136NI50-75-C | 50 | 75 | - | - | with bore for countersunk screws |
| GN136NI60-30-A | 60 | 30 | - | - | for welding |
| GN136NI60-30-B | 60 | 30 | - | - | assembly pass through hole |
| GN136NI60-30-C | 60 | 30 | - | - | with bore for countersunk screws |
| GN136NI60-40-A | 60 | 40 | - | - | for welding |
| GN136NI60-40-B | 60 | 40 | - | - | assembly pass through hole |
| GN136NI60-40-C | 60 | 40 | - | - | with bore for countersunk screws |
| GN136NI60-60-A | 60 | 60 | - | - | for welding |
| GN136NI60-60-B | 60 | 60 | - | - | assembly pass through hole |
| GN136NI60-60-C | 60 | 60 | - | - | with bore for countersunk screws |
| GN136NI60-90-A | 60 | 90 | - | - | for welding |
| GN136NI60-90-B | 60 | 90 | - | - | assembly pass through hole |
| GN136NI60-90-C | 60 | 90 | - | - | with bore for countersunk screws |
| GN136NI75-50-A | 75 | 50 | - | - | for welding |
| GN136NI75-50-B | 75 | 50 | - | - | assembly pass through hole |
| GN136NI75-50-C | 75 | 50 | - | - | with bore for countersunk screws |
| GN136NI80-40-A | 80 | 40 | - | - | for welding |
| GN136NI80-40-B | 80 | 40 | - | - | assembly pass through hole |
| GN136NI80-40-C | 80 | 40 | - | - | with bore for countersunk screws |
| GN136NI90-60-A | 90 | 60 | - | - | for welding |
| GN136NI90-60-C | 90 | 60 | - | - | with bore for countersunk screws |
