Enclosure: multipurpose

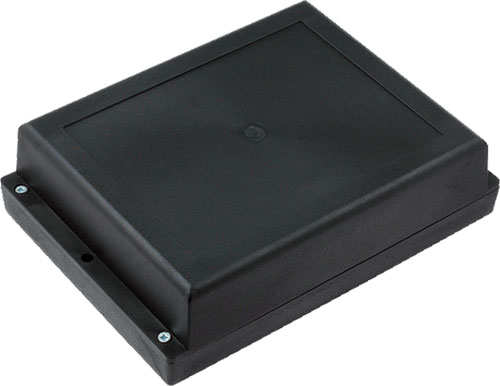

Enclosure: multipurpose, Z-46, Z-46/J, Z46-ABS, Z-46H, Z-46H/J, Z-46H-ABS, Z-46JH-ABS |EN|

Type of enclosure	multipurpose
Version	with fixing lugs
Dimensions	Fig. 1.

Symbol	Body col.	X	Y	Z
		[mm]	[mm]	[mm]
Z-46	black	144	198	53
Z-46/J	grey	144	198	53
Z46-ABS	black	144	198	53
Z-46H	black	144	198	53
Z-46H/J	grey	144	198	53
Z-46H-ABS	black	144	198	53
Z-46JH-ABS	grey	144	198	53
Z46S-ABS	black	144	198	53
Z-46A	black	144	198	73
Z46A-ABS	black	144	198	73
Z-46A/J	grey	144	198	73
Z-46AH	black	144	198	73
Z-46AH-ABS	black	144	198	73
Z-46AJH-ABS	grey	144	198	73
Z46AJS-ABS	grey	144	198	73

Enclosure material:

ABS (Z46xxx-ABS, Z-46xxH-ABS)
polystyrene (Z-46, Z-46/J, Z-46H, Z-46H/J, Z-46A, Z-46A/J, Z-46AH)

IP rating:

IP65 (Z-46Hxxx, Z-46JH-ABS, Z-46AH, Z-46AH-ABS, Z-46AJH-ABS)
IP67 (Z46S-ABS, Z46AJS-ABS)

Kit contents:

gasket (Z-46Hxxx, Z-46JH-ABS, Z-46AH, Z-46AH-ABS, Z-46AJH-ABS)

Mechanical impact resistance:

IK07 (Z-46H-ABS, Z-46JH-ABS, Z-46Axxx, Z46S-ABS, Z46A-ABS, Z46AJS-ABS)

Caution!:

without gasket (Z-46, Z-46/J, Z-46A, Z-46A/J, Z46-ABS, Z46A-ABS)
