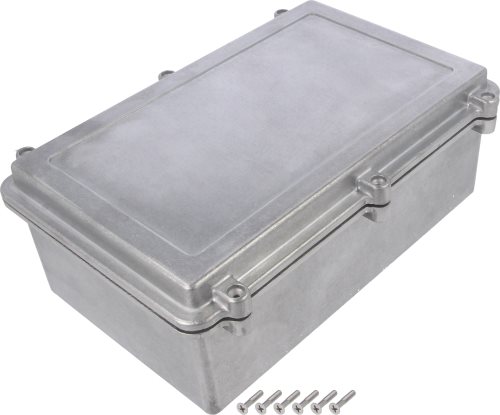

Enclosure: shielding; GAINTA

Manufacturer	GAINTA
Type of enclosure	shielding
Application	designed for electronic circuits sensitive to electromagnetic interferences
Dimensions	Fig. 1.
IP rating	IP67
Enclosure material	aluminium
Description	EMI/RFI shielding, interior of each enclosure with an RFI/EMI copper conductive coating

Symbol	Body col.	X	Y	Z
		[mm]	[mm]	[mm]
HQ001EMS	natural	96	96	45
HQ001EMSBK	black	96	96	45
HQ001EMSLG	light grey	96	96	45
HQ003EMS	natural	96	96	67
HQ003EMSBK	black	96	96	67
HQ003EMSLG	light grey	96	96	67
HQ005EMS	natural	96	192	45
HQ005EMSBK	black	96	192	45
HQ005EMSLG	light grey	96	192	45
HQ007EMS	natural	96	192	67
HQ007EMSBK	black	96	192	67
HQ007EMSLG	light grey	96	192	67
HQ009EMS	natural	173	274	66
HQ009EMSBK	black	173	274	66
HQ009EMSLG	light grey	173	274	66
HQ011EMS	natural	173	274	100
HQ011EMSBK	black	173	274	100
HQ011EMSLG	light grey	173	274	100
HQ013EMS	natural	100	150	50
HQ013EMSBK	black	100	150	50
HQ013EMSLG	light grey	100	150	50
HQ015EMS	natural	100	150	75
HQ015EMSBK	black	100	150	75
HQ015EMSLG	light grey	100	150	75
HQ017EMS	natural	150	200	50
HQ017EMSBK	black	150	200	50
HQ017EMSLG	light grey	150	200	50
HQ019EMS	natural	150	200	75
HQ019EMSBK	black	150	200	75
HQ019EMSLG	light grey	150	200	75
