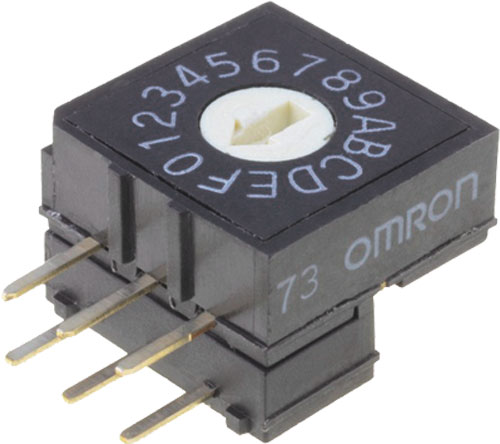

Encoding switch; THT; OMRON Electronic Components
| Manufacturer | OMRON Electronic Components |
| Type of switch | encoding switch |
| Mounting | THT |
| DC contacts rating @R* | 0.025A / 24V DC |
| Max. contact resistance: | 200mΩ |
| Min. insulation resistance | 100MΩ |
| Terminal pitch | 2.54mm |
| Operating temperature | -25...80°C |
* at resistive load
| Symbol | Kind of encoding switch | Positions | Features | Body dim. | Leads | Contacts layout | Manufacturer series |
|---|---|---|---|---|---|---|---|
| [mm] | |||||||

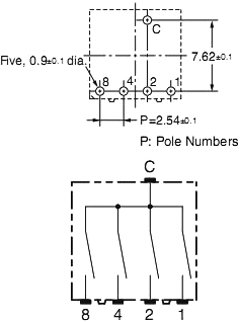

| A6R-101RF | DEC/BCD | 10 | without knob | 9.9x9.8x4.5 | for PCB, straight | Fig. 1. | A6R |
| A6R-101RS | DEC/BCD | 10 | with knob | 9.9x9.8x4.5 | for PCB, straight | Fig. 1. | A6R |

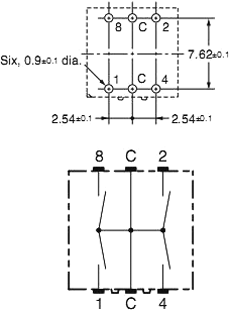

| A6R-102RF | DEC/BCD | 10 | without knob | 9.9x9.8x4.5 | for PCB, straight | Fig. 2. | A6R |
| A6R-102RS | DEC/BCD | 10 | with knob | 9.9x9.8x4.5 | for PCB, straight | Fig. 2. | A6R |
| A6R-161RF | HEX/BCD | 16 | without knob | 9.9x9.8x4.5 | for PCB, straight | Fig. 1. | A6R |
| A6R-161RS | HEX/BCD | 16 | with knob | 9.9x9.8x4.5 | for PCB, straight | Fig. 1. | A6R |
| A6R-162RF | HEX/BCD | 16 | without knob | 9.9x9.8x4.5 | for PCB, straight | Fig. 2. | A6R |
| A6R-162RS | HEX/BCD | 16 | with knob | 9.9x9.8x4.5 | for PCB, straight | Fig. 2. | A6R |
| A6RV-101RF | DEC/BCD | 10 | without knob | 9.9x9.8x4.5 | for PCB, angled | Fig. 3. | A6RV |
| A6RV-101RS | DEC/BCD | 10 | with knob | 9.9x9.8x4.5 | for PCB, angled | Fig. 3. | A6RV |

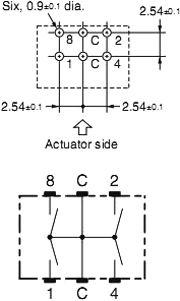

| A6RV-102RF | DEC/BCD | 10 | without knob | 9.9x9.8x4.5 | for PCB, angled | Fig. 4. | A6RV |
| A6RV-102RS | DEC/BCD | 10 | with knob | 9.9x9.8x4.5 | for PCB, angled | Fig. 4. | A6RV |
| A6RV-161RF | HEX/BCD | 16 | without knob | 9.9x9.8x4.5 | for PCB, angled | Fig. 3. | A6RV |
| A6RV-161RS | HEX/BCD | 16 | with knob | 9.9x9.8x4.5 | for PCB, angled | Fig. 3. | A6RV |
| A6RV-162RF | HEX/BCD | 16 | without knob | 9.9x9.8x4.5 | for PCB, angled | Fig. 4. | A6RV |
| A6RV-162RS | HEX/BCD | 16 | with knob | 9.9x9.8x4.5 | for PCB, angled | Fig. 4. | A6RV |
