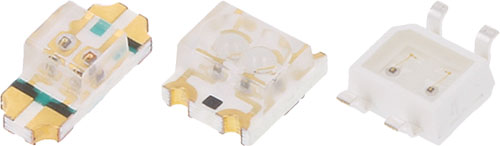

EVERLIGHT multicolour SMD LED's
| Manufacturer | EVERLIGHT |
| Mounting | SMD |
| Type of diode | LED |
| Symbol | Variant | Case | Case - inch | Colour | Viewing angle | Power | Current | Operating voltage |
|---|---|---|---|---|---|---|---|---|
| [°] | [mW] | [mA] | [V DC] | |||||
| 11-22/R6G6C-A01/2T | bicolour | - | 1210 | red/yellow-green | 60 | 60/60 | 20 | 1.7...2.4/1.7...2.4 |
| 11-22/R8G6C-A30 | bicolour | PLCC4 | - | red/yellow-green | 60 | 60/60 | 20 | 1.7...2.4/1.7...2.4 |
| 15-22SURSYGC/S530 | bicolour | - | - | red/yellow-green | 140 | 60 | 20 | 2...2.4 |
| 18-225/R6G6C-A01 | bicolour | - | - | red/yellow-green | 120 | 60/60 | 20 | 1.7...2.4/1.7...2.4 |
| 19-22/R6G6C-A01 | bicolour | - | - | red/yellow-green | 130 | 60/60 | 20 | 1.7...2.4/1.7...2.4 |
| 19-223/Y2G6C-A01 | bicolour | - | - | yellow/yellow green | 130 | 60/60 | 20 | 1.7...2.4/1.7...2.4 |
| 23-22BUSRSYGC/S530 | bicolour | - | 1205 | red/yellow-green | 130 | 60/60 | - | 1.7...2.4/1.7...2.4 |
| 12-22/R7G6C-A10/2C | bicolour, angular | - | 1208 | red/yellow-green | 120 | 60/60 | 20 | 1.7...2.4/1.7...2.4 |
| 12-22SURSYGC/S530 | bicolour, angular | - | - | red/yellow-green | 120 | 60 | 20 | 1.7...2.4 |
| 93-22/G6R7C-B01/2A | bicolour, reverse mount | - | 1109 | red/yellow-green | 130 | 60/60 | 5 | 1.6...2.2/1.6...2.2 |
| 22-23C/R6GHBHW-C01 | angular, tricolour | - | - | RGB | 130 | 60/95/95 | 5 | 1.7...2/2.7...3.2/2.7...3.1 |
| 12-23C/R6GHBHC-A01 | tricolour | - | 1206 | RGB | 100 | - | 25 | - |
| 19-237/R6GHBHC-A04 | tricolour | - | - | RGB | 120 | 60/95/95 | 5 | 1.7...2.2/2.6...3/2.6...3 |
| 19-237A/BHR6GHC-A0 | tricolour | - | - | RGB | 120 | 60/95/95 | 20 | 1.7...2.4/2.7...3.8/2.7...3.8 |
| 19-237A/R6GHBHCB01 | tricolour | - | - | RGB | 120 | 60/95/95 | 10 | 1.7...2.4/2.7...3.7/2.7...3.7 |
| 19-337/R6GHBHC-A01 | tricolour | - | - | RGB | 120 | 60/95 | 20 | 1.7...2.4/2.7...3.8 |
| 19-337/S2GHBHC-A01 | tricolour | - | - | orange/green/blue | 120 | 60/95/95 | 20 | 1.7...2.4/2.7...3.7/2.7...3.7 |
| 19-337C/RSBHGHCA88 | tricolour | - | - | RGB | 120 | - | 20 | 1.7...2.4/2.6...3.2/2.6...3.2 |
| 23-23B/R6GHBHC-A01 | tricolour | - | - | RGB | 130 | 60/95 | 20 | 1.7...2.4/2.7...3.7 |
| 67-23/R6GHBHC-B05 | tricolour | PLCC4 | - | RGB | 120 | 120/110/110 | 20 | 2...2.4/3.4...3.95/3.4...3.95 |
| Symbol | Red lumin. | Green lumin. | Blue lumin. | Yellow lumin. | Orange lumin. | Common | Wavelength |
|---|---|---|---|---|---|---|---|
| [mcd] | [mcd] | [mcd] | [mcd] | [mcd] | [nm] | ||
| 11-22/R6G6C-A01/2T | 140...225 | 45...72 | - | - | - | - | 573, 624 |
| 11-22/R8G6C-A30 | 180...450 | 72...180 | - | - | - | - | 573, 639 |
| 15-22SURSYGC/S530 | 35...54 | 24...34 | - | - | - | - | 573, 624 |
| 18-225/R6G6C-A01 | 45...112 | 28.5...72 | - | - | - | - | 567.5...575.5, 617...625 |
| 19-22/R6G6C-A01 | 45...112 | 45...72 | - | - | - | - | 567.5...575.5, 617.5...633.5 |
| 19-223/Y2G6C-A01 | - | 28.5...57 | - | 36...72 | - | - | 567.5...575.5, 585.5...594.5 |
| 23-22BUSRSYGC/S530 | 40...60 | 16...24 | - | - | - | - | 573, 631 |
| 12-22/R7G6C-A10/2C | 45...90 | 45...90 | - | - | - | - | 568...575, 625...637 |
| 12-22SURSYGC/S530 | 36...54 | 21...28 | - | - | - | anode | 573, 624 |
| 93-22/G6R7C-B01/2A | 28...57 | 18...36 | - | - | - | - | 570.5...574.5, 621...628 |
| 22-23C/R6GHBHW-C01 | 14.5...36 | 35...110 | 10...24.5 | - | - | anode | 466.5...478.5, 523...540, 613...625 |
| 12-23C/R6GHBHC-A01 | 63...90 | 125...180 | 32...50 | - | - | - | 470, 525, 624 |
| 19-237/R6GHBHC-A04 | 18...57 | 28.5...112 | 11.5...28.5 | - | - | anode | 465...475, 520...530, 613...627 |
| 19-237A/BHR6GHC-A0 | 72...285 | 112...285 | 28.5...112 | - | - | - | 465...475, 518...528, 614...628 |
| 19-237A/R6GHBHCB01 | 28.5...72 | 90...225 | 22.5...57 | - | - | anode | 465...475, 520...535, 617...627 |
| 19-337/R6GHBHC-A01 | 72...225 | 140...285 | 36...90 | - | - | - | 465...475, 518...528, 614...628 |
| 19-337/S2GHBHC-A01 | - | 140...360 | 28.5...90 | - | 72...180 | - | 465...475, 520...530, 599...609 |
| 19-337C/RSBHGHCA88 | 450...715 | 900...1800 | 180...360 | - | - | - | 465...475, 525...535, 620...630 |
| 23-23B/R6GHBHC-A01 | 72...100 | 140...200 | 45...65 | - | - | anode | 470, 525, 624 |
| 67-23/R6GHBHC-B05 | 112...285 | 180...715 | 72...180 | - | - | anode | 465...475, 520...530, 621...631 |
