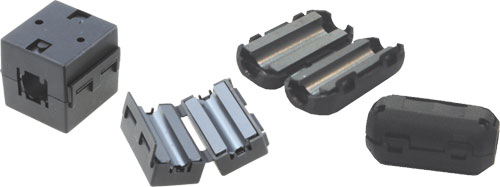

Ferrite: two-piece; FERROCORE
| Type of ferrite | two-piece |
| Application | on round cable |
| Core material | Ni-Zn ferromagnetic |
| Enclosure material | polyamide |
| Design | plastic sheath |
| Features | reduce electromagnetic interference |
| Symbol | Imp. @ 25MHz | Imp. @ 100MHz | Max. wire diam. |
|---|---|---|---|
| [Ω] | [Ω] | [mm] | |
| FLF-501B | 70 | 120 | 5 |
| FLF-65B | 120 | 200 | 6.5 |
| FLF-100B | 80 | 130 | 10 |
| FLF-130B | 105 | 170 | 13 |
| FLF-502 | 60 | 100 | 5 |
| FLF-702 | 70 | 130 | 7 |
| FLF-902 | 80 | 130 | 9 |
| FLF-60B | 60 | 80 | 6 |
| FLF-102B | 144 | 240 | 9.5 |
| FLF-120B | 50 | 100 | 11.5 |
| FLF-190B | 90 | 160 | 19 |
| FCT-0933 | 105 | 190 | 9.5 |
| FLF-1302B-B8 | 125 | 230 | 13 |
| Symbol | Dimensions | A | B | C | D | E |
|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | ||
| FLF-501B | Fig. 1. | 15 | 14 | 5.2 | 23 | - |
| FLF-65B | Fig. 1. | 20.5 | 20 | 6.5 | 33 | - |
| FLF-100B | Fig. 1. | 25.5 | 23.5 | 10 | 33 | - |
| FLF-130B | Fig. 1. | 32.5 | 30 | 13 | 33 | - |
| FLF-502 | Fig. 2. | 13 | 11.8 | 5 | 25.5 | 2.5 |
| FLF-702 | Fig. 2. | 17 | 15 | 7 | 30 | 2.5 |
| FLF-902 | Fig. 2. | 19.5 | 18 | 9 | 35 | 5.5 |
| FLF-60B | Fig. 3. | 18.5 | 14 | 6 | 15.5 | - |
| FLF-102B | Fig. 2. | 21.5 | 20 | 10 | 35 | - |
| FLF-120B | Fig. 4. | 28 | 32 | 11.5 | 18 | 24 |
| FLF-190B | Fig. 1. | 29.5 | 29.4 | 19.4 | 42 | - |
| FCT-0933 | Fig. 2. | 22.5 | 22.5 | 9.5 | 43 | - |
| FLF-1302B-B8 | Fig. 5. | 31.5 | - | - | - | - |
