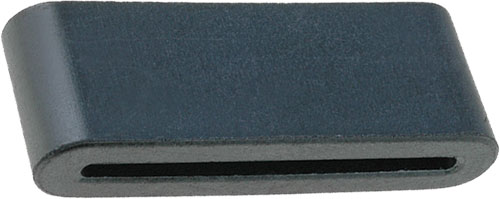

Ferrites for cable

Core material

ferromagnetic A5

Symbol	Dimensions	Imp. @ 25MHz	Imp. @ 100MHz
		[Ω]	[Ω]
RFS1-14-15-A5	Fig. 1.	27	77
RFS1-15-12-A5	Fig. 1.	23	58
RFS1-15-15-A5	Fig. 1.	24	59
RFS1-15-7-2-A5	Fig. 1.	14	41
RFS1-15-7-A5	Fig. 1.	17	45
RFS1-17-15-A5	Fig. 1.	48	126
RFS1-20-25-A5	Fig. 1.	100	180
RFS1-6-8-A5	Fig. 1.	28	60
RFS2-11-10-A5	Fig. 2.	45	164
RFS2-11-12-A5	Fig. 2.	38	62
RFS2-11-20-A5	Fig. 2.	61	123
RFS2-13-15-A5	Fig. 2.	36	97
RFS2-14-13-A5	Fig. 2.	46	96
RFS2-14-7-A5	Fig. 2.	21	47
RFS2-15-12-A5	Fig. 2.	35	70
RFS2-16-12-A5	Fig. 2.	27	87
RFS2-17-20-A5	Fig. 3.	43	114
RFS2-18-10-A5	Fig. 2.	31	71
RFS2-18-15-A5	Fig. 2.	44	91
RFS2-18-18-A5	Fig. 2.	55	127
RFS2-21-10-A5	Fig. 2.	26	57
RFS2-21-12-A5	Fig. 2.	30	66
RFS2-21-15-A5	Fig. 2.	36	78
RFS2-21-20-A5	Fig. 2.	58	149
RFS2-21-8-A5	Fig. 2.	21	53
RFS2-22-12-A5	Fig. 3.	19	56
RFS2-22-25-A5	Fig. 3.	59	146
RFS2-22-9-A5	Fig. 3.	29	88
RFS2-2-30-A5	Fig. 3.	120	191
RFS2-24-36-A5	Fig. 2.	92	192
RFS2-26-15-A5	Fig. 2.	31	100
RFS2-27-12-A5	Fig. 2.	28	69
RFS2-27-8-A5	Fig. 2.	23	58
RFS2-34-12-2-A5	Fig. 2.	25	66
RFS2-34-12-A5	Fig. 2.	25	66
RFS2-35-12-A5	Fig. 2.	23	62
RFS2-40-12-A5	Fig. 3.	25	75
RFS2-43-12-A5	Fig. 3.	28	92
RFS2-5-8-A5	Fig. 3.	19	41
RFS2-8-12-A5	Fig. 2.	28	63
RFS2-9-12-2-A5	Fig. 2.	37	69
RFS2-9-12-A5	Fig. 2.	41	73
RFS2-9-15-A5	Fig. 2.	50	90
RFS2-9-8-A5	Fig. 2.	29	72
RFS3-27-10-A5	Fig. 4.	39	89
RFS3-4-9-A5	Fig. 4.	32	59
RFS3-6-7-A5	Fig. 4.	25	65
RFS4-21-16-A5	Fig. 5.	76	188

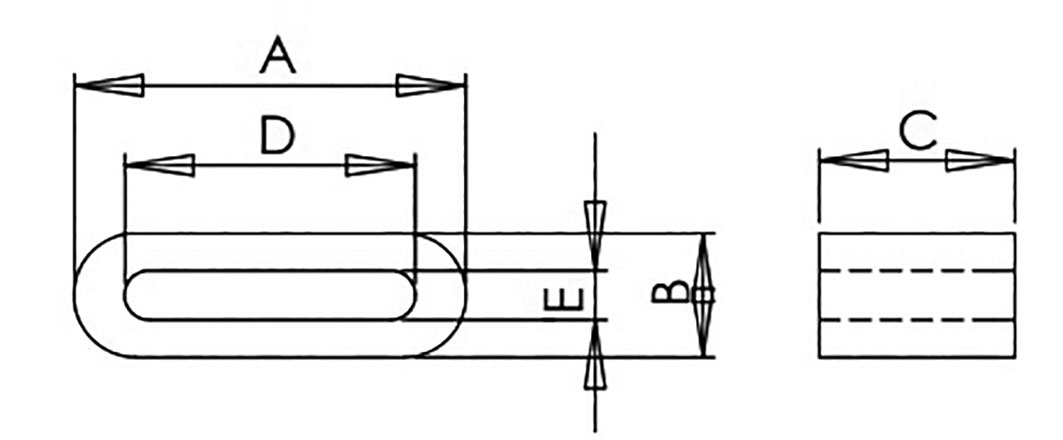

Symbol	A dimension	B dimension	C dimension	D dimension	E dimension
	[mm]	[mm]	[mm]	[mm]	[mm]
RFS1-14-15-A5	23.8	3.2	15	18.7	1.1
RFS1-15-12-A5	23.3	3	12	20	0.9
RFS1-15-15-A5	23.3	3	15	20	0.9
RFS1-15-7-2-A5	23.3	2.5	7	20	0.9
RFS1-15-7-A5	23.3	3	7	20	0.9
RFS1-17-15-A5	25.5	5	15	21.5	0.65
RFS1-20-25-A5	38.53	12.06	25.4	26.77	1.9
RFS1-6-8-A5	10	3.2	8	8	1
RFS2-11-10-A5	18	5	8	14	1
RFS2-11-12-A5	19	6.5	12	14	1.8
RFS2-11-20-A5	18.9	6.5	20	14	1.8
RFS2-13-15-A5	20.5	3.5	15	16.5	0.8
RFS2-14-13-A5	23.8	6.3	12.5	18.7	1.1
RFS2-14-7-A5	23.8	6.3	7	18.7	1.1
RFS2-15-12-A5	24.5	5	12	20	0.5
RFS2-16-12-A5	25.5	3	12	21.5	0.65
RFS2-17-20-A5	25	3.7	20	22	0.7
RFS2-18-10-A5	28.6	7.7	10	23.5	1.7
RFS2-18-15-A5	28.5	6.5	15	23.5	1
RFS2-18-18-A5	28.5	6.5	18	23.5	1
RFS2-21-10-A5	33.5	6.5	10	27	1.3
RFS2-21-12-A5	33.5	6.5	12	27	1.3
RFS2-21-15-A5	33.5	6.5	15	27	1.3
RFS2-21-20-A5	33.5	6.5	20	27	1.3
RFS2-21-8-A5	33.5	6.5	8	27	1.3
RFS2-22-12-A5	31	3	12	27	1
RFS2-22-25-A5	32	6	25	28	0.85
RFS2-22-9-A5	31	5	9	27	1
RFS2-2-30-A5	24	12	30	15	4
RFS2-24-36-A5	36	7.5	36	31	1
RFS2-26-15-A5	38.5	4	15	35	0.8
RFS2-27-12-A5	40	6.5	12	35	1.3
RFS2-27-8-A5	40	6.5	8	35	1.3
RFS2-34-12-2-A5	49.6	7	12	44	1.8
RFS2-34-12-A5	49.6	6.5	12	44	1.3
RFS2-35-12-A5	50	6.5	12	44.9	1.4
RFS2-40-12-A5	57.6	6.5	12	52	1.3
RFS2-43-12-A5	60.6	6.5	12	55.2	1.3
RFS2-5-8-A5	9.1	5.6	7.8	7.2	3.7
RFS2-8-12-A5	14.7	2.75	12	11	0.7
RFS2-9-12-2-A5	16	5	12	11.5	1.2
RFS2-9-12-A5	16	5	12	11.5	0.5
RFS2-9-15-A5	16	5	15	11.5	0.5
RFS2-9-8-A5	16	5	8	11.5	0.5
RFS3-27-10-A5	45	12.7	10	35	1.8
RFS3-4-9-A5	7.5	5.3	9	5	2.8
RFS3-6-7-A5	10	3.2	7	8	1
RFS4-21-16-A5	32	11.8	16	27	1
