Filter: anti-interference; SCHURTER
| Manufacturer | SCHURTER |
| Type of filter | anti-interference |
| Symbol | Schematic diagram | Dimensions | Cx | Cy | Induct. of indiv. wind. | Ioper. max | Ir | Uoper. | Uoper. | Temp. | Body dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|
| [nF] | [nF] | [mH] | [A] | [mA] | [V AC] | [V DC] | [°C] | [mm] | |||

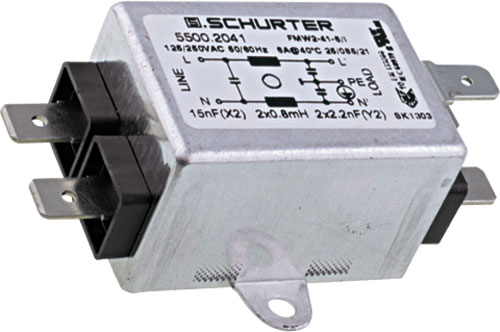

| 5500.2041 | Fig. 1-1. | Fig. 2-1. | 15 | 2.2 | 0.8 | 6 | 250 | 250 | - | -25...100 | 25x29x42 |
| 5500.2039 | Fig. 1-1. | Fig. 2-1. | 15 | 2.2 | 10 | 1 | 0.25 | 250 | - | -25...100 | 25x29x42 |
| 5500.2040 | Fig. 1-1. | Fig. 2-1. | 15 | 2.2 | 2 | 3 | 0.25 | 250 | - | -25...100 | 25x29x42 |
| 5500.2042 | Fig. 1-1. | Fig. 2-1. | 15 | 2.2 | 0.4 | 10 | 0.25 | 250 | - | -25...100 | 25x29x42 |
| 5500.2104 | Fig. 1-1. | Fig. 2-1. | 15 | - | 2 | 3 | 0.005 | 250 | - | -25...100 | 25x29x42 |
| 5500.2656.01 | - | - | - | - | - | 20 | 0.5 | 250 | - | -40...100 | 65.3x50x30.8 |
| 5500.2603.01 | - | - | 470 | 4.7 | 0.8 | 10 | - | 250 | - | -25...100 | 66x51x31 |
| 5500.2631.01 | - | - | - | - | - | 3 | 0.5 | 250 | - | -40...100 | 47.1x51x17.7 |
| 5500.2223 | - | - | 100 | 100 | 0.75 | 5 | - | - | 43...80 | -25...100 | 66x51x32 |
| 5500.2224 | - | - | 100 | 100 | 0.2 | 10 | - | - | 43...80 | -25...100 | 66x51x32 |
| 5500.2630.01 | - | - | - | - | - | 1 | 0.5 | 250 | - | -40...100 | 32.5x44x24.8 |
| 5500.2632.01 | - | - | - | - | - | 4 | 0.5 | 250 | - | -40...100 | 45x51x22.8 |
| 5500.2633.01 | - | - | - | - | - | 6 | 0.5 | 250 | - | -40...100 | 45x51x22.8 |
| 5500.2634.01 | - | - | - | - | - | 8 | 0.5 | 250 | - | -40...100 | 65.3x50.3x30.8 |
| 5500.2635.01 | - | - | - | - | - | 10 | 1 | 250 | - | -40...100 | 65.3x50.3x30.8 |
| 5500.2636.01 | - | - | - | - | - | 12 | 1 | 250 | - | -40...100 | 65.3x50.3x30.8 |
| 5500.2637.01 | - | - | - | - | - | 16 | 1 | 250 | - | -40...100 | 65.3x53.3x40.8 |
| 5500.2638.01 | - | - | - | - | - | 20 | 1 | 250 | - | -40...100 | 65.3x53.3x40.8 |
| 5500.2639.03 | - | - | - | - | - | 30 | 1 | 250 | - | -40...100 | 65.3x53.3x40.8 |
| 5500.2640.01 | - | - | - | - | - | 1 | 0.5 | 250 | - | -40...100 | 44x32.5x30 |
| 5500.2641.01 | - | - | - | - | - | 3 | 0.5 | 250 | - | -40...100 | 44x32.5x30 |
| 5500.2642.01 | - | - | - | - | - | 6 | 0.5 | 250 | - | -40...100 | 44x32.5x30 |
| 5500.2643.01 | - | - | - | - | - | 10 | 0.5 | 250 | - | -40...100 | 44x32.5x30 |
| 5500.2644.01 | - | - | - | - | - | 12 | 0.5 | 250 | - | -40...100 | 44x32.5x30 |
| 5500.2645.01 | - | - | - | - | - | 16 | 0.5 | 250 | - | -40...100 | 51x45x30 |
| 5500.2646.01 | - | - | - | - | - | 20 | 0.5 | 250 | - | -40...100 | 65.3x50.3x30.8 |
| 5500.2647.03 | - | - | - | - | - | 30 | 1 | 250 | - | -40...100 | 95x57x46 |
| 5500.2650.01 | - | - | - | - | - | 1 | 0.5 | 250 | - | -40...100 | 44x32.5x24.8 |
| 5500.2651.01 | - | - | - | - | - | 3 | 0.5 | 250 | - | -40...100 | 44x32.5x24.8 |
| 5500.2653.01 | - | - | - | - | - | 10 | 0.5 | 250 | - | -40...100 | 44x32.5x30 |
| 5500.2654.01 | - | - | - | - | - | 12 | 0.5 | 250 | - | -40...100 | 44x32.5x30 |
| 5500.2655.01 | - | - | - | - | - | 16 | 0.5 | 250 | - | -40...100 | 51x45x30 |
| 5500.2657.03 | - | - | - | - | - | 30 | 1 | 250 | - | -40...100 | 95x57x46 |
| 5500.2103 | - | - | - | 0.47 | 0.4 | 10 | 0.08 | 250 | - | -40...100 | 25x29x42 |

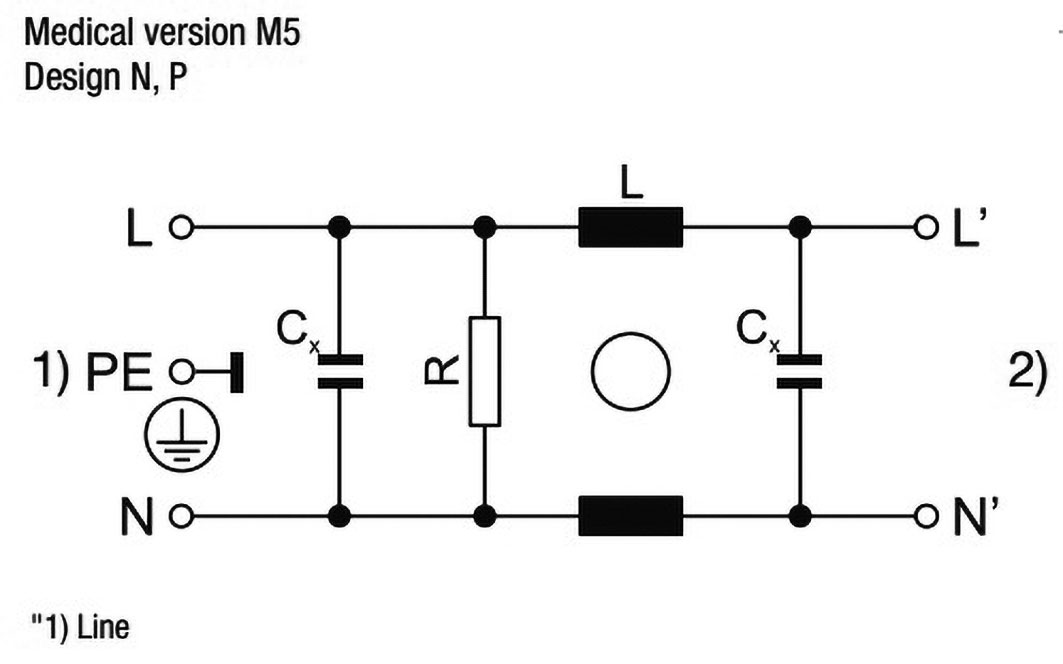

| 5500.2631.04 | Fig. 1-2. | - | - | - | - | 3 | 0.005 | 250 | - | -40...100 | 51x45x23 |
| 5500.2633.04 | Fig. 1-2. | - | - | - | - | 6 | 0.005 | 250 | - | -40...100 | 51x45x23 |
| 5500.2078 | - | - | 68 | - | 4 | 2 | 0.005 | 250 | - | -25...100 | 42x29x25 |
| 5500.2226 | - | - | 100 | 100 | 0.07 | 20 | - | - | 43...80 | -25...100 | 66x51x32 |
| 5500.2648.03 | - | - | - | - | - | 60 | 1 | 250 | - | -40...100 | 100x85x58 |
| 5500.2658.03 | - | - | - | - | - | 60 | 1 | 320 | - | -40...100 | - |
| Symbol | Leads | Enclos. mat. | Version | Series | Leads dimensions | Kind of filter |
|---|---|---|---|---|---|---|
| [mm] | ||||||
| 5500.2041 | connectors | metal | - | FMW41 | 6.3x0.8 | single-phase |
| 5500.2039 | connectors | metal | - | FMW41 | 6.3x0.8 | single-phase |
| 5500.2040 | connectors | metal | - | FMW41 | 6.3x0.8 | single-phase |
| 5500.2042 | connectors | metal | - | FMW41 | 6.3x0.8 | single-phase |
| 5500.2104 | connectors | metal | medical | FMW41 | 6.3x0.8 | single-phase |
| 5500.2656.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2603.01 | connectors | aluminium | - | FMBB NEO | 6.3x0.8 | single-phase |
| 5500.2631.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2223 | connectors | aluminium | - | FMEB | 6.3x0.8 | DC |
| 5500.2224 | connectors | aluminium | - | FMEB | 6.3x0.8 | DC |
| 5500.2630.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2632.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2633.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2634.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2635.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2636.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2637.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2638.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2639.03 | M4 screws | metal | - | FMAB NEO | - | single-phase |
| 5500.2640.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2641.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2642.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2643.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2644.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2645.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2646.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2647.03 | M4 screws | metal | - | FMAB NEO | - | single-phase |
| 5500.2650.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2651.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2653.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2654.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2655.01 | connectors | metal | - | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2657.03 | M4 screws | metal | - | FMAB NEO | - | single-phase |
| 5500.2103 | connectors | metal | medical | FMW41 | 6.3x0.8 | single-phase |
| 5500.2631.04 | connectors | metal | medical | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2633.04 | connectors | metal | medical | FMAB NEO | 6.3x0.8 | single-phase |
| 5500.2078 | connectors | aluminium | medical | FMLB | 6.3x0.8 | single-phase |
| 5500.2226 | connectors | aluminium | - | FMEB | 6.3x0.8 | DC |
| 5500.2648.03 | M6 screws | - | - | FMAB NEO | - | single-phase |
| 5500.2658.03 | M6 screws | - | - | FMAB NEO | - | single-phase |
