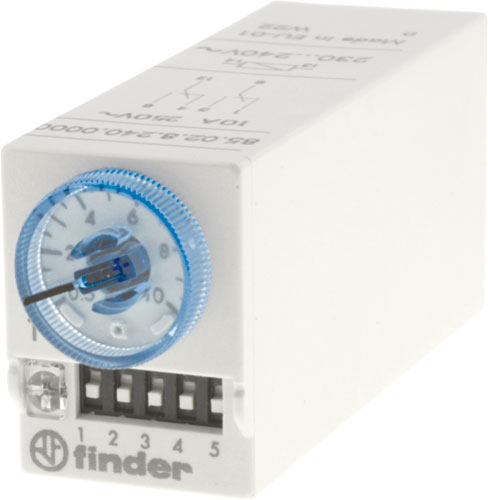

FINDER
| Manufacturer | FINDER |
| Mounting | on panel, for DIN rail mounting, socket |
| Range | 0,05s...100h |
| Number of operation modes | 4 |
| Operation modes | pulse after a specified time, delayed switching on, symmetrical cyclical operation pulse first, ON for the set interval, with the control contact S |
| The additional control inputs | START |
| Operating temperature | -20...60°C |
| IP rating | IP40 |
| Indication | LED |
| Manufacturer series | 85 |
| Type of automation module | timer |
| Symbol | Usup | Usup | Output | No. of pins | Dimensions | Related items | Output configuration |
|---|---|---|---|---|---|---|---|
| [V AC] | [V DC] | ||||||

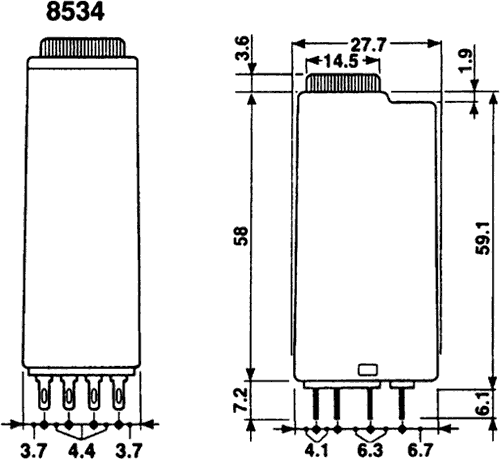

| 85.02-24 | 24 | 24 | DPDT | 8 | Fig. 1-1. | 94.02, 94.02.0, 94.72, 94.72.0, 94.74, 94.82, 94.84.2, 94.84.20, 94.92.3, 94.92.30, 94.P4 | Fig. 2-1. |
| 85.02-230 | 230 | 230 | DPDT | 8 | Fig. 1-1. | 94.02, 94.02.0, 94.72, 94.72.0, 94.74, 94.82, 94.84.2, 94.84.20, 94.92.3, 94.92.30, 94.P4 | Fig. 2-1. |
| 85.02.0.012.0000 | 12 | 12 | DPDT | 8 | Fig. 1-1. | 94.02, 94.02.0, 94.72, 94.72.0, 94.74, 94.82, 94.84.2, 94.84.20, 94.92.3, 94.92.30, 94.P4 | Fig. 2-1. |
| 85.02.0.048.0000 | 48 | 48 | DPDT | 8 | Fig. 1-1. | 94.02, 94.02.0, 94.72, 94.72.0, 94.74, 94.82, 94.84.2, 94.84.20, 94.92.3, 94.92.30, 94.P4 | Fig. 2-1. |
| 85.02.0.125.0000 | 125 | 125 | DPDT | 8 | Fig. 1-1. | 94.02, 94.02.0, 94.72, 94.72.0, 94.74, 94.82, 94.84.2, 94.84.20, 94.92.3, 94.92.30, 94.P4 | Fig. 2-1. |
| 85.03.0.012.0000 | 12 | 12 | 3PDT | 11 | - | 94.03, 94.03.0, 94.73, 94.73.0, 94.P3 | - |
| 85.03.0.024.0000 | 24 | 24 | 3PDT | 11 | - | 94.03, 94.03.0, 94.73, 94.73.0, 94.P3 | - |
| 85.03.0.048.0000 | 48 | 125 | 3PDT | 11 | - | 94.03, 94.03.0, 94.73, 94.73.0, 94.P3 | - |
| 85.03.0.125.0000 | 125 | 125 | 3PDT | 11 | - | 94.03, 94.03.0, 94.73, 94.73.0, 94.P3 | - |
| 85.03.8.240.0000 | 240 | - | 3PDT | 11 | - | 94.03, 94.03.0, 94.73, 94.73.0, 94.P3 | - |
| 85.04-24 | 24 | 24 | 4PDT | 14 | Fig. 1-2. | 94.04, 94.04.0, 94.74, 94.74.0, 94.84, 94.84.20, 94.94.3, 94.94.30, 94.P4 | Fig. 2-2. |
| 85.04-230 | 230 | 230 | 4PDT | 14 | Fig. 1-2. | 94.04, 94.04.0, 94.74, 94.74.0, 94.84, 94.84.20, 94.94.3, 94.94.30, 94.P4 | Fig. 2-2. |
| 85.04.0.012.0000 | 12 | 12 | 4PDT | 14 | Fig. 1-2. | 94.04, 94.04.0, 94.74, 94.74.0, 94.84, 94.84.20, 94.94.3, 94.94.30, 94.P4 | Fig. 2-2. |
| 85.04.0.048.0000 | 48 | 48 | 4PDT | 14 | Fig. 1-2. | 94.04, 94.04.0, 94.74, 94.74.0, 94.84, 94.84.20, 94.94.3, 94.94.30, 94.P4 | Fig. 2-2. |
| 85.04.0.125.0000 | 125 | 125 | 4PDT | 14 | Fig. 1-2. | 94.04, 94.04.0, 94.74, 94.74.0, 94.84, 94.84.20, 94.94.3, 94.94.30, 94.P4 | Fig. 2-2. |
