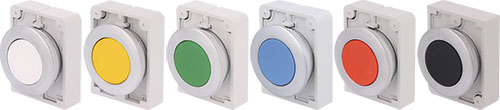

Flat push-button switches, M30-F series

Manufacturer	EATON ELECTRIC
Type of switch	push-button
Button shape	flat
Mounting hole	Ø30.5mm
Illumination	none
Operating temperature	-25...70°C
IP rating	IP67
Caution!	Contact sets must be ordered separately.
Dimensions	Fig. 1.
Works with	M22-A, M22-CK01, M22-CK10, M22-FK01, M22-FK10, M22-K01, M22-K10
Family	RMQ Flat Design, RMQ Flat Front
Switch standard	30mm

Symbol	Positions	Actuator colour	Features	Button marking
M30C-FD-S	2	black	witout symbol	blank
M30C-FD-W	2	white	witout symbol	blank
M30C-FD-R	2	red	witout symbol	blank
M30C-FD-G	2	green	witout symbol	blank
M30C-FD-Y	2	yellow	witout symbol	blank
M30C-FD-B	2	blue	witout symbol	blank
M30C-FD-GR	2	grey	witout symbol	blank
M30C-FD-X	2	-	witout symbol	blank
M30C-FD-S-X0	2	black	with symbol	O
M30C-FD-W-X1	2	white	with symbol	I
M30C-FD-W-X11	2	white	with symbol	T
M30C-FD-R-X0	2	red	with symbol	O
M30C-FD-G-X1	2	green	with symbol	I
M30C-FD-B-X217	2	grey	with symbol	HAND AUTO
M30C-FD-GR-X66	2	grey	with symbol	arrow
M30C-FDR-S	2	black	witout symbol	blank
M30C-FDR-W	2	white	witout symbol	blank
M30C-FDR-R	2	red	witout symbol	blank
M30C-FDR-G	2	green	witout symbol	blank
M30C-FDR-Y	2	yellow	witout symbol	blank
M30C-FDR-B	2	blue	witout symbol	blank
M30C-FDR-X	2	-	witout symbol	blank
M30C-FDR-S-X0	2	black	with symbol	O
M30C-FDR-W-X1	2	white	with symbol	I
M30C-FDR-R-X0	2	red	with symbol	O
M30C-FDR-G-X1	2	green	with symbol	I
