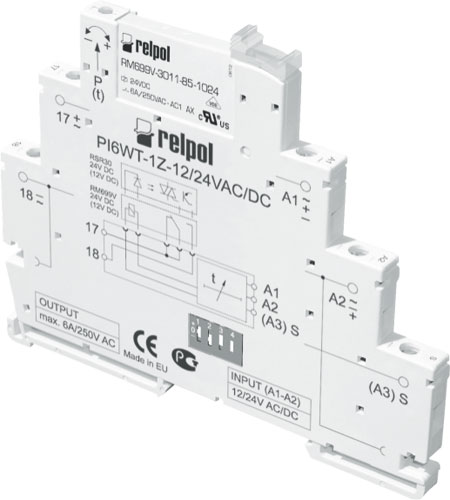

For DIN rail mounting; RELPOL
| Manufacturer | RELPOL |
| Mounting | for DIN rail mounting |
| Electrical connection | screw terminals |
| Operating temperature | -20...55°C |
| IP rating | IP20 |
| Type of automation module | timer |
| Features | removable electromagnetic relay; DIP-SWITCH for operation mode selection |
| Indication | LED |
| Symbol | Usup | Usup | Output | Range | No. of pins |
|---|---|---|---|---|---|
| [V AC] | [V DC] | ||||
| PIR6WBT1Z115C | 115 | - | SSR, transistor | 0,1s...10days | 5 |
| PIR6WBT1Z115O | 115 | - | SSR, transistor | 0,1s...10days | 5 |
| PIR6WBT1Z115R | 115 | - | SPST-NO | 0,1s...10days | 5 |
| PIR6WBT1Z115T | 115 | - | SSR, triac | 0,1s...10days | 5 |
| PIR6WBT1Z12C | 12 | 12 | SSR, transistor | 0,1s...10days | 5 |
| PIR6WBT1Z12O | 12 | 12 | SSR, transistor | 0,1s...10days | 5 |
| PIR6WBT1Z12R | 12 | 12 | SPST-NO | 0,1s...10days | 5 |
| PIR6WBT1Z12T | 12 | 12 | SSR, triac | 0,1s...10days | 5 |
| PIR6WBT1Z230C | 230 | - | SSR, transistor | 0,1s...10days | 5 |
| PIR6WBT1Z230O | 230 | - | SSR, transistor | 0,1s...10days | 5 |
| PIR6WBT1Z230R | 230 | - | SPST-NO | 0,1s...10days | 5 |
| PIR6WBT1Z230T | 230 | - | SSR, triac | 0,1s...10days | 5 |
| PIR6WBT1Z24C | 24 | 24 | SSR, transistor | 0,1s...10days | 5 |
| PIR6WBT1Z24O | 24 | 24 | SSR, transistor | 0,1s...10days | 5 |
| PIR6WBT1Z24R | 24 | 24 | SPST-NO | 0,1s...10days | 5 |
| PIR6WBT1Z24T | 24 | 24 | SSR, triac | 0,1s...10days | 5 |
| PIR6WT1Z115C | 115 | - | SSR, transistor | 0,1s...10days | 5 |
| PIR6WT1Z115O | 115 | - | SSR, transistor | 0,1s...10days | 5 |
| PIR6WT1Z115R | 115 | - | SPST-NO | 0,1s...10days | 5 |
| PIR6WT1Z115T | 115 | - | SSR, triac | 0,1s...10days | 5 |
| PIR6WT1Z12C | 12 | 12 | SSR, transistor | 0,1s...10days | 5 |
| PIR6WT1Z12O | 12 | 12 | SSR, transistor | 0,1s...10days | 5 |
| PIR6WT1Z12T | 12 | 12 | SSR, triac | 0,1s...10days | 5 |
| PIR6WT1Z12R | 12 | 12 | SPST-NO | 0,1s...10days | 5 |
| PIR6WT1Z230C | 230 | - | SSR, transistor | 0,1s...10days | 5 |
| PIR6WT1Z230O | 230 | - | SSR, transistor | 0,1s...10days | 5 |
| PIR6WT1Z230R | 230 | - | SPST-NO | 0,1s...10days | 5 |
| PIR6WT1Z230T | 230 | - | SSR, triac | 0,1s...10days | 5 |
| PIR6WT1Z24C | 24 | 24 | SSR, transistor | 0,1s...10days | 5 |
| PIR6WT1Z24O | 24 | 24 | SSR, transistor | 0,1s...10days | 5 |
| PIR6WT1Z24R | 24 | 24 | SPST-NO | 0,1s...10days | 5 |
| PIR6WT1Z24T | 24 | 24 | SSR, triac | 0,1s...10days | 5 |
| Symbol: (PIR6WBT1Zxxx) | |
|---|---|
| Body dimensions | 98.3x6.2x84.6mm |
| Manufacturer series | PIR6WBT-1Z |
| Number of operation modes | 9 |
| Symbol: (PIR6WT1Zxxx) | |
| Body dimensions | 98.5x6.2x85.5mm |
| Manufacturer series | PIR6WT-1Z |
| Number of operation modes | 9 |
