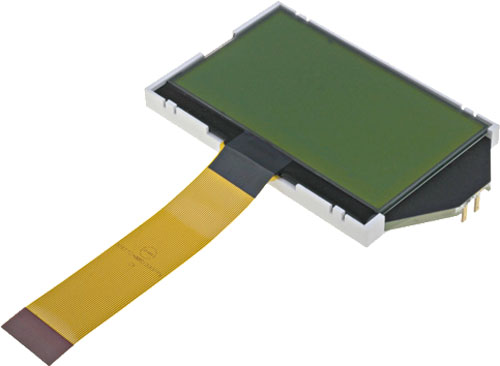

Graphic LCD, COG modules, RAYSTAR
| Manufacturer | RAYSTAR OPTRONICS |
| Type of display | LCD |
| Touchpad | none |
| Kind of display | graphical |
| Symbol: (RX128128AxxxW) | |
|---|---|
| Resolution | 128x128 |
| Symbol: (RX12864xxx) | |
| Resolution | 128x64 |
| Symbol: (RX13232xxxW) | |
| Resolution | 132x32 |
| Symbol: (RX160160A-FHW, RX160160B-FHW) | |
| Resolution | 160x160 |
| Symbol: (RX240128A-xxx) | |
| Resolution | 240x128 |
| Symbol: (RX240160A-FHW) | |
| Resolution | 240x160 |
| Symbol: (RX320240E-FHW-V) | |
| Resolution | 320x240 |
| Symbol | Backgr. colour | Backlight colour | Display technology | Window dimensions |
|---|---|---|---|---|
| [mm] | ||||
| RX128128A2-FHW | - | white | COG, FSTN Positive | - |
| RX128128A-DIW | - | white | COG, STN Negative | - |
| RX128128A-FHW | - | white | COG, FSTN Positive | - |
| RX12864A1-BIW | blue | white | COG, STN Negative | 54.6x32 |
| RX12864A1-GHW | grey | white | COG, STN Positive | 54.6x32 |
| RX12864B-FHW | - | white | COG, FSTN Positive | 69x36.5 |
| RX12864C2-FHW | - | white | COG, FSTN Positive | 45.2x27 |
| RX12864D3-BIW | blue | white | COG, FSTN Positive | 70.7x38.8 |
| RX12864D3-FHW | - | white | COG, FSTN Positive | 70.7x38.8 |
| RX12864D3-GHW | grey | white | COG, STN Positive | 70.7x38.8 |
| RX12864H-BIW | blue | white | COG, STN Negative | 70.7x38.8 |
| RX12864H-FHW | - | white | COG, FSTN Positive | 70.7x38.8 |
| RX12864H-FHW-010 | - | white | COG, FSTN Positive | 70.7x38.8 |
| RX12864H-YHW | yellow-green | white | COG, STN Positive | 70.7x38.8 |
| RX12864K1-BIW | - | white | COG, STN Negative | - |
| RX12864L-FHW | - | white | COG, FSTN Positive | - |
| RX12864T-BIW | - | white | COG, STN Negative | - |
| RX12864T-FHW | - | white | COG, FSTN Positive | - |
| RX12864T-TIW | - | white | COG, FSTN Negative | - |
| RX12864U-BIW | - | white | COG, STN Negative | - |
| RX12864U-FHW | - | white | COG, FSTN Positive | - |
| RX13232A-DIW | - | white | COG, FSTN Negative | 58.3x19 |
| RX13232A-FHW | - | white | COG, FSTN Positive | 58.3x19 |
| RX13232B-DIW | - | white | COG, FSTN Negative | 58.3x19 |
| RX13232B-FHW | - | white | COG, FSTN Positive | - |
| RX160160A-FHW | - | white | COG, FSTN Positive | 60x60 |
| RX160160B-FHW | - | white | COG, FSTN Positive | 60x60 |
| RX240128A-BIW | blue | white | COG, STN Negative | 83.975x44.775 |
| RX240128A-FGN | - | - | COG, FSTN Positive | 92x53 |
| RX240128A-FHW | - | white | COG, FSTN Positive | 92x53 |
| RX240128A-YHW | yellow-green | white | COG, STN Positive | 92x53 |
| RX240160A-FHW | - | white | COG, FSTN Positive | 78.5x47.5 |
| RX320240E-FHW-V | - | white | COG, FSTN Positive | 81.4x61 |
| Symbol | Illumination | Dimensions | Number of pins | Layout | Contacts pitch | Pitch | Controller | Usup |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [V DC] | |||||
| RX128128A2-FHW | LED | - | - | - | - | - | - | - |
| RX128128A-DIW | LED | - | - | - | - | - | - | - |
| RX128128A-FHW | LED | - | - | - | - | - | - | - |
| RX12864A1-BIW | LED | 60.1x44.5x5.01 | 29 | 1x29 | - | 0.5 | ST7565P | 2.7...3.3 |
| RX12864A1-GHW | LED | 60.1x44.5x5.01 | 29 | 1x29 | - | 0.5 | ST7565P | 2.7...3.3 |
| RX12864B-FHW | LED | 89.7x49.8x12.1 | 30 | 1x30 | - | 0.5 | ST7565P | 2.7...3.3 |
| RX12864C2-FHW | LED | 55.2x39.8x6.5 | 34 | 1x34 | 0.5 | - | ST7565P | 3...3.6 |
| RX12864D3-BIW | LED | 80x54x9.5 | 34 | 1x34 | - | 0.5 | ST7565P | 2.7...3.3 |
| RX12864D3-FHW | LED | 80x54x9.5 | 34 | 1x34 | - | 0.5 | ST7565P | 2.7...3.3 |
| RX12864D3-GHW | LED | 80x54x9.5 | 34 | 1x34 | - | 0.5 | ST7565P | 2.7...3.3 |
| RX12864H-BIW | LED | 80x54x9.5 | 20 | 1x20 | - | 0.5 | ST7567-G | 3...3.6 |
| RX12864H-FHW | LED | 80x54x9.5 | 20 | 1x20 | - | 0.5 | ST7567-G | 3...3.6 |
| RX12864H-FHW-010 | LED | 80x54x9.5 | 20 | 1x20 | - | 0.5 | ST7567 | 3...3.6 |
| RX12864H-YHW | LED | 80x54x9.5 | 20 | 1x20 | - | 0.5 | ST7567-G | 3...3.6 |
| RX12864K1-BIW | LED | - | - | - | - | - | - | - |
| RX12864L-FHW | LED | - | - | - | - | - | - | - |
| RX12864T-BIW | LED | - | - | - | - | - | - | - |
| RX12864T-FHW | LED | - | - | - | - | - | - | - |
| RX12864T-TIW | LED | - | - | - | - | - | - | - |
| RX12864U-BIW | LED | - | - | - | - | - | - | - |
| RX12864U-FHW | LED | - | - | - | - | - | - | - |
| RX13232A-DIW | LED | 65.4x28.2x9.7 | 10 | 1x10 | - | - | ST7567A | 7.8...8.2 |
| RX13232A-FHW | LED | 65.4x28.2x9.7 | 10 | 1x10 | - | - | ST7567A | 7.8...8.2 |
| RX13232B-DIW | LED | 65.4x28.2x9.7 | 8 | 1x8 | - | - | ST7567A | 7.8...8.2 |
| RX13232B-FHW | LED | - | - | - | - | - | - | - |
| RX160160A-FHW | LED | 83.8x76.5x8.365 | 18 | 1x18 | - | 1 | UC1698U | 3...3.6 |
| RX160160B-FHW | LED | 82.2x77.5x7.43 | 18 | 1x18 | 2.54 | - | UC1698 | 3...3.6 |
| RX240128A-BIW | LED | 98.7x67.7x9.5 | 23 | 1x23 | 1.27 | - | UC1608 | - |
| RX240128A-FGN | none | 96x65x2.9 | 23 | 1x23 | 1.27 | - | UC1608 | 2.7...3.6 |
| RX240128A-FHW | LED | 98.7x67.7x9.5 | 23 | 1x23 | 1.27 | - | UC1608 | 2.7...3.6 |
| RX240128A-YHW | LED | 98.7x67.7x9.5 | 23 | 1x23 | 1.27 | - | UC1608 | 2.7...3.6 |
| RX240160A-FHW | LED | 93x64.2x9.8 | 16 | 1x16 | 2.54 | - | ST7529 | 3...3.6 |
| RX320240E-FHW-V | LED | 94.7x83.3x9.4 | 20 | 1x20 | - | - | RA8835 | 3...3.6 |
