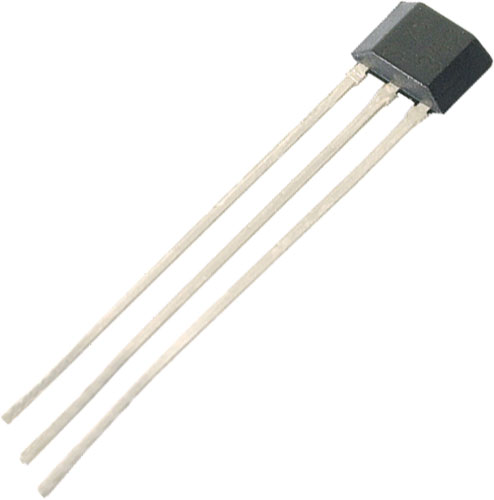

Hall effect sensors, TLE series
| Manufacturer | INFINEON TECHNOLOGIES |
| Type of sensor | Hall |
| Symbol | Kind of sensor | Range of detectable magnetic field | Sup. volt. | Case |
|---|---|---|---|---|
| [mT] | [V DC] | |||
| TLE4945L | bipolar | -10...10 | 3.8...24 | P-SSO-3-2 |
| TLE4905LE6433HAXA1 | unipolar | 5...18 | 3.8...24 | P-SSO-3-2 |
| TLE4906KHTSA1 | unipolar | 5...13.5 | 2.7...18 | SC59 |
| TLE4913HTSA1 | omnipolar | -5...5 | 2.4...5.5 | SC59 |
| TLE4917HTSA1 | omnipolar | -7...7 | 2.4...5.5 | P-TSOP6-6-2 |
| TLE4941CBAMA1 | bipolar | -500...500 | 4.5...20 | PG-SSO-2-4 |
| TLE49452LHALA1 | bipolar | -6...6 | 3.8...24 | P-SSO-3-2 |
| TLE49462KHTSA1 | latch | -3.5...3.5 | 2.7...18 | SC59 |
| TLE4946KHTSA1 | latch | -19...19 | 2.7...18 | SC59 |
| TLE49645MXTSA1 | unipolar | 2.7...10.4 | 3...32 | SC59 |
| TLE49646MXTMA1 | unipolar | 0.9...5.4 | 3...32 | SC59 |
| TLE49663KHTSA1 | bipolar | -4.2...4.2 | 2.7...18 | P-TSOP6-6-5 |
| TLE4997E2XALA1 | bipolar, programmable, unipolar | -200...200 | 4.5...5.5 | PG-SSO-3-10 |
| TLE4998P3XALA1 | bipolar, programmable, unipolar | -200...200 | 4.5...5.5 | PG-SSO-3-10 |
| Symbol | Mounting | Operating temperature | Dimensions |
|---|---|---|---|
| [°C] | |||
| TLE4945L | THT | -40...150 | Fig. 1. |
| TLE4905LE6433HAXA1 | THT | -40...150 | Fig. 1. |
| TLE4906KHTSA1 | SMT | -40...150 | Fig. 2. |
| TLE4913HTSA1 | SMT | -40...85 | Fig. 2. |
| TLE4917HTSA1 | SMT | -40...85 | Fig. 3. |
| TLE4941CBAMA1 | THT | -40...150 | Fig. 4. |
| TLE49452LHALA1 | THT | -40...150 | Fig. 1. |
| TLE49462KHTSA1 | SMT | -40...150 | Fig. 2. |
| TLE4946KHTSA1 | SMT | -40...150 | Fig. 2. |
| TLE49645MXTSA1 | SMT | -40...150 | Fig. 2. |
| TLE49646MXTMA1 | SMT | -40...150 | Fig. 2. |
| TLE49663KHTSA1 | SMT | -40...150 | Fig. 5. |
| TLE4997E2XALA1 | THT | -40...150 | Fig. 6. |
| TLE4998P3XALA1 | THT | -40...150 | Fig. 6. |
