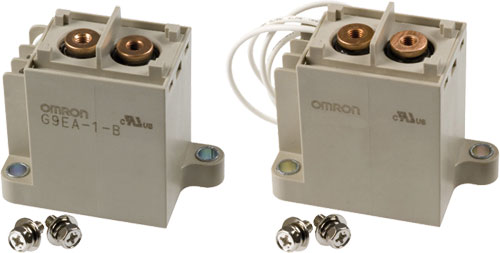

High current relays, G9EA series

High current relays, G9EA series, G9EA-1-12DC, G9EA-1-24DC, G9EA-1-48DC, G9EA-1-100DC |EN|
ManufacturerOMRON Electronic Components
Type of relayelectromagnetic
Variantpower
Contacts configurationSPST-NO
Symbol Ucoil Rcoil Icoil Pcoil
[V DC] [Ω] [mA] [W]
G9EA-1-24DC 24 115.2 208 5
G9EA-1-48DC 48 469.3 102 5
G9EA-1-100DC 100 1864 53.6 5.4
G9EA-1-CA-12DC 12 28.8 417 5
G9EA-1-CA-24DC 24 115.2 208 5
G9EA-1-CA-48DC 48 469.3 102 5
G9EA-1-CA-100DC 100 1864 53.6 5.4
G9EA-1-B-24DC 24 115.2 208 5
G9EA-1-B-48DC 48 469.3 102 5
G9EA-1-B-100DC 100 1864 53.6 5.4
G9EA-1-B-CA-12DC 12 28.8 417 5
G9EA-1-B-CA-24DC 24 115.2 208 5
G9EA-1-B-CA-48DC 48 469.3 102 5
G9EA-1-B-CA-100DC 100 1864 53.6 5.4
G9TA-U1AP-12DC 12 145 83 1
G9TA-U1ATH-12DC 12 145 83 1
G9TA-U1ATW-12DC 12 145 83 1
G9TA-K1AP-12DC 12 55 217 2.6
G9TA-K1ATH-12DC 12 55 217 2.6
G9TA-K1ATW-12DC 12 55 217 2.6
G9TB-U1ATH-E-12DC 12 53.3 225 2.7
G9TB-U1ATW-E-12DC 12 53.3 225 2.7
G9TB-K1ATH-E-12DC 12 26.6 451 5.4
G9TB-K1ATW-E-12DC 12 26.6 451 5.4
Symbol Mounting Switched voltage Operate time Release time Body dimensions Operating temperature Icontacts max DC load rating @R* Contact resist. Leads Lead length Manufacturer series
[V DC] [ms] [ms] [mm] [°C] [A] [mΩ] [mm]
G9EA-1-24DC on panel max. 400 50 30 73x36x67.2 -40...70 100 60A / 400V DC 30 cables, M5 screws 230 G9EA
G9EA-1-48DC on panel max. 400 50 30 73x36x67.2 -40...70 100 60A / 400V DC 30 cables, M5 screws 230 G9EA
G9EA-1-100DC on panel max. 400 50 30 73x36x67.2 -40...70 100 60A / 400V DC 30 cables, M5 screws 230 G9EA
G9EA-1-CA-12DC on panel max. 400 50 30 73x36x67.2 -40...70 30 30A / 400V DC 10 cables, M5 screws 230 G9EA
G9EA-1-CA-24DC on panel max. 400 50 30 73x36x67.2 -40...70 30 30A / 400V DC 10 cables, M5 screws 230 G9EA
G9EA-1-CA-48DC on panel max. 400 50 30 73x36x67.2 -40...70 30 30A / 400V DC 10 cables, M5 screws 230 G9EA
G9EA-1-CA-100DC on panel max. 400 50 30 73x36x67.2 -40...70 30 30A / 400V DC 10 cables, M5 screws 230 G9EA
G9EA-1-B-24DC on panel max. 400 50 30 73x36x67.2 -40...70 100 60A / 400V DC 30 M3.5 screws, M5 screws - G9EA
G9EA-1-B-48DC on panel max. 400 50 30 73x36x67.2 -40...70 100 60A / 400V DC 30 M3.5 screws, M5 screws - G9EA
G9EA-1-B-100DC on panel max. 400 50 30 73x36x67.2 -40...70 100 60A / 400V DC 30 M3.5 screws, M5 screws - G9EA
G9EA-1-B-CA-12DC on panel max. 400 50 30 73x36x67.2 -40...70 30 30A / 400V DC 10 M3.5 screws, M5 screws - G9EA
G9EA-1-B-CA-24DC on panel max. 400 50 30 73x36x67.2 -40...70 30 30A / 400V DC 10 M3.5 screws, M5 screws - G9EA
G9EA-1-B-CA-48DC on panel max. 400 50 30 73x36x67.2 -40...70 30 30A / 400V DC 10 M3.5 screws, M5 screws - G9EA
G9EA-1-B-CA-100DC on panel max. 400 50 30 73x36x67.2 -40...70 30 30A / 400V DC 10 M3.5 screws, M5 screws - G9EA
G9TA-U1AP-12DC PCB max. 250 30 30 39.1x18x36.7 -40...85 60 - 2 soldering pads - G9TA
G9TA-U1ATH-12DC on panel max. 250 30 30 39.1x18x34.5 -40...85 60 - 2 M5 screws - G9TA
G9TA-U1ATW-12DC - max. 250 30 30 39.1x18x34.5 -40...85 60 - 2 - - G9TA
G9TA-K1AP-12DC PCB max. 250 20 20 39.1x18x36.7 -40...85 60 - 2 soldering pads - G9TA
G9TA-K1ATH-12DC on panel max. 250 20 20 39.1x18x34.5 -40...85 60 - 2 M5 screws - G9TA
G9TA-K1ATW-12DC - max. 250 20 20 39.1x18x34.5 -40...85 60 - 2 - - G9TA
G9TB-U1ATH-E-12DC - max. 276 25 25 43.5x37.5x22.5 -40...85 120 - 0.4 solder lugs M8 - G9TB
G9TB-U1ATW-E-12DC - max. 276 25 25 43.5x37.5x22.5 -40...85 100 - 0.4 soldering pads - G9TB
G9TB-K1ATH-E-12DC - max. 276 20 20 43.5x37.5x22.5 -40...85 100 - 0.4 solder lugs M8 - G9TB
G9TB-K1ATW-E-12DC - max. 276 20 20 43.5x37.5x22.5 -40...85 100 - 0.4 soldering pads - G9TB
* at resistive load
