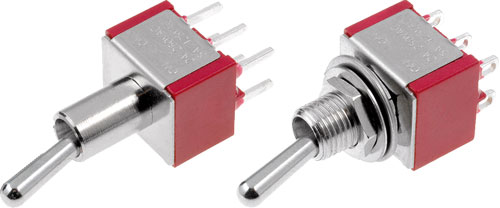

IC toggle switches, 2P series
| Manufacturer | IC SWITCHES |
| Type of switch | toggle |
| Electrical life | 50000 cycles |
| Max. contact resistance: | 10mΩ |
| Contact plating | silver plated |
| Min. insulation resistance | 1000MΩ |
| Contact material | copper alloy |
| Actuator material | brass |
| Lever plating | chromium |
| Body material | brass |
| Operating temperature | -30...85°C |

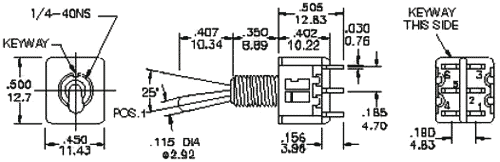

| Dimensions | Fig. 1. |
| Kind of toggle | round |
| Slider height | 10.34mm |
| Mounting hole diameter | Ø6.35mm |
| Symbol | AC contacts rating @R* | DC contacts rating @R* | Contacts layout | Switch. method** | Positions | Leads |
|---|---|---|---|---|---|---|
| IC2101T1B1M1QE | 5A / 125V AC | 5A / 28V DC | DPDT | ON-ON | 2 | for soldering |
| IC2101T1B2M2QE | 5A / 125V AC | 5A / 28V DC | DPDT | ON-ON | 2 | for PCB, straight |
| IC2201T1B1M1QE | 5A / 125V AC | 5A / 28V DC | DP3T | ON-OFF-ON | 3 | for soldering |
| IC2301T1B1M2QE | 5A / 125V AC | 5A / 28V DC | DP3T | ON-OFF-(ON) | 3 | for PCB, straight |
| IC2401T1B1M1QE | 5A / 125V AC | 5A / 28V DC | DP3T | (ON)-OFF-(ON) | 3 | for soldering |
| IC2501T1B1M1QE | 5A / 125V AC | 5A / 28V DC | DPDT | ON-(ON) | 2 | for soldering |
| IC2301T1B1M2RE | 3A / 125V AC | 3A / 28V DC | DP3T | ON-OFF-(ON) | 3 | for soldering |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
