IGUS Fork joints
| Manufacturer | IGUS |
| Type of mounting element | fork joint |
| Material | igumid G |
| DIN standard | DIN 71752 |
| Version | with spring-loaded fixing clip |

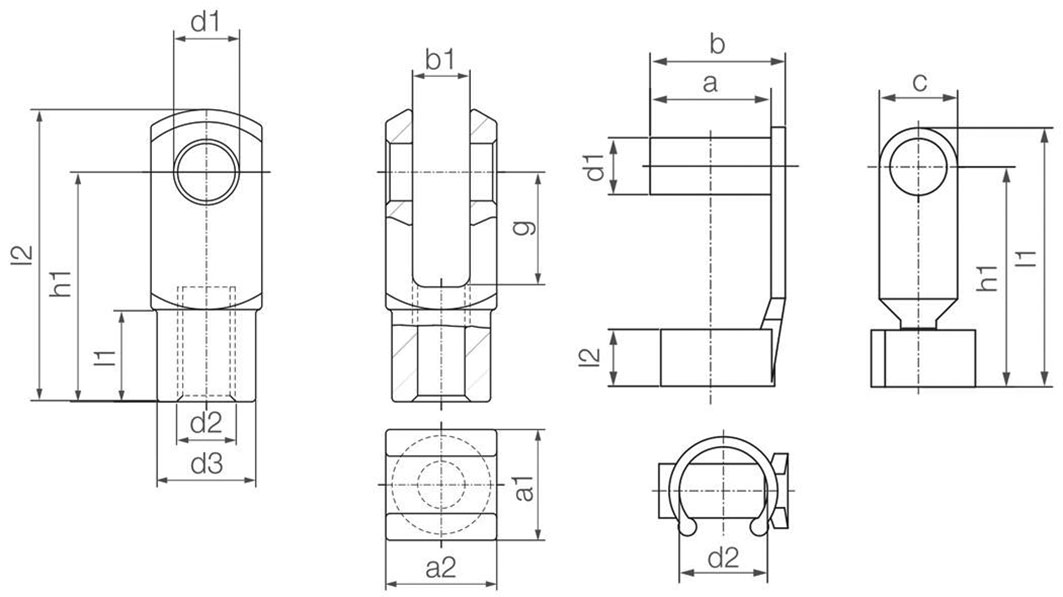

| Dimensions | Fig. 1. |
| Manufacturer series | igubal® |
| Symbol | Kind of thread | Hole diameter | Thread | G |
|---|---|---|---|---|
| [mm] | [mm] | |||
| GELMF-04 | left hand thread, inside | 4 | M4 | 8 |
| GELMF-05 | left hand thread, inside | 5 | M5 | 20 |
| GELMF-05-DIN-M4 | left hand thread, inside | 5 | M4 | 10 |
| GELMF-05-DIN-M5 | left hand thread, inside | 5 | M5 | 10 |
| GELMF-05-DIN-M5-LS | left hand thread, inside | 5 | M5 | 12 |
| GELMF-06 | left hand thread, inside | 6 | M6 | 12 |
| GELMF-06-LS | left hand thread, inside | 6 | M6 | 24 |
| GELMF-08 | left hand thread, inside | 8 | M8 | 16 |
| GELMF-10 | left hand thread, inside | 10 | M10 | 20 |
| GELMF-10-F | left hand thread, inside | 10 | M10 | 20 |
| GELMF-12 | left hand thread, inside | 12 | M12 | 24 |
| GELMF-12-F | left hand thread, inside | 12 | M12 | 24 |
| GELMF-16-F | left hand thread, inside | 16 | M16 | 32 |
| GELMF-16 | left hand thread, inside | 16 | M16 | 32 |
| GERMF-04 | right hand thread, inside | 4 | M4 | 8 |
| GERMF-04-M3.5 | right hand thread, inside | 4 | M3,5 | 8 |
| GERMF-05 | right hand thread, inside | 5 | M5 | 20 |
| GERMF-05-DIN-M4 | right hand thread, inside | 5 | M4 | 10 |
| GERMF-05-DIN-M5 | right hand thread, inside | 5 | M5 | 10 |
| GERMF-05-DIN-M5-LS | right hand thread, inside | 5 | M5 | 12 |
| GERMF-06 | right hand thread, inside | 6 | M6 | 12 |
| GERMF-06-LS | right hand thread, inside | 6 | M6 | 24 |
| GERMF-08 | right hand thread, inside | 8 | M8 | 16 |
| GERMF-10 | right hand thread, inside | 10 | M10 | 20 |
| GERMF-10-F | right hand thread, inside | 10 | M10 | 20 |
| GERMF-12 | right hand thread, inside | 12 | M12 | 24 |
| GERMF-12-F | right hand thread, inside | 12 | M12 | 24 |
| GERMF-16 | right hand thread, inside | 16 | M16 | 32 |
