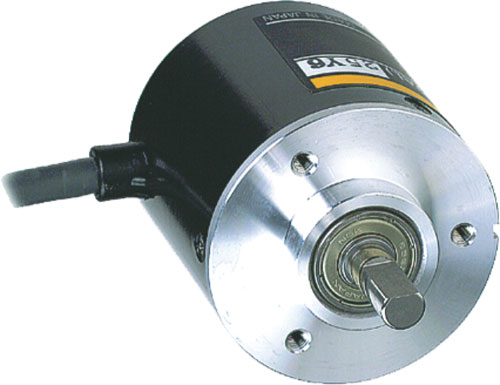

Incremental encoders, E6B2-C series
| Type of encoder | incremental |
| Operating temperature | -10...70°C |
| IP rating | IP50 |
| Features | shaft 6mm |
| Body dimensions | Ø40x39mm |
| Connection | cables |
| Symbol | Resolution | Supply voltage | Output configuration | Dimensions | Switch. freq. max | Lead length |
|---|---|---|---|---|---|---|
| [imp/revol.] | [V DC] | [kHz] | [m] | |||
| E6B2-CWZ5B-200 | 200 | 12...24 | PNP | Fig. 1. | 50 | 0.5 |
| E6B2-CWZ5B-360 | 360 | 12...24 | PNP | Fig. 1. | 50 | 0.5 |
| E6B2-CWZ5B-500 | 500 | 12...24 | PNP | Fig. 1. | 50 | 0.5 |
| E6B2-CWZ5B-1000 | 1000 | 12...24 | PNP | Fig. 1. | 50 | 0.5 |
| E6B2-CWZ5B-2000 | 2000 | 12...24 | PNP | Fig. 1. | 50 | 0.5 |
| E6B2-CWZ6C-60 | 60 | 5...24 | NPN | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ6C-100 | 100 | 5...24 | NPN | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ6C-360 | 360 | 5...24 | NPN | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ6C-500 | 500 | 5...24 | NPN | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ6C-600 | 600 | 5...24 | NPN | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ6C-1000 | 1000 | 5...24 | NPN | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ6C-1800 | 1800 | 5...24 | NPN | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ6C-2000 | 2000 | 5...24 | NPN | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ1X-500 | 500 | 5 | linear | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ1X-2000 | 2000 | 4.5...5 | linear | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ1X-1000-2M | 1000 | 4.5...5 | linear | Fig. 1. | 100 | 2 |
| E6B2-CWZ5B-360-2M | 360 | 12...24 | PNP | Fig. 1. | 100 | 2 |
| E6B2-CWZ6C-1000-2M | 1000 | 5...24 | NPN | Fig. 1. | 100 | 2 |
| E6B2-CWZ6C-100-2M | 100 | 5...24 | NPN | Fig. 1. | 100 | 2 |
| E6B2-CWZ6C-2000-2M | 2000 | 5...24 | NPN | Fig. 1. | 100 | 2 |
| E6B2-CWZ6C-360-2M | 360 | 5...24 | NPN | Fig. 1. | 100 | 2 |
| E6B2-CWZ6C-500-2M | 500 | 5...24 | NPN | Fig. 1. | 100 | 2 |
| E6B2-CWZ6C-400 | 400 | 5...24 | NPN | Fig. 1. | 100 | 0.5 |
| E6B2-CWZ1X-10 | 10 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-100 | 100 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-1000-5M | 1000 | 5 | linear | - | - | 5 |
| E6B2-CWZ1X-100-2M | 100 | 5 | linear | - | - | 2 |
| E6B2-CWZ1X-1024 | 1024 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-1200 | 1200 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-1500 | 1500 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-1800 | 1800 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-1800-2M | 1800 | 5 | linear | - | - | 2 |
| E6B2-CWZ1X-20 | 20 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-200 | 200 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-30 | 30 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-300 | 300 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-360 | 360 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-40 | 40 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-400 | 400 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-50 | 50 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-60 | 60 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-600 | 600 | 5 | linear | - | - | 0.5 |
| E6B2-CWZ1X-600-2M | 600 | 5 | linear | - | - | 2 |
| E6B2-CWZ3E-10 | 10 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-100 | 100 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-1000 | 1000 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-1000-2M | 1000 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-100-2M | 100 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-10-2M | 10 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-1200 | 1200 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-1500 | 1500 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-1800 | 1800 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-20 | 20 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-200 | 200 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-2000 | 2000 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-2000-2M | 2000 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-200-2M | 200 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-20-2M | 20 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-30 | 30 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-300 | 300 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-300-2M | 300 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-30-2M | 30 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-360 | 360 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-360-2M | 360 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-40 | 40 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-400 | 400 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-400-2M | 400 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-40-2M | 40 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-50 | 50 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-500 | 500 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-500-2M | 500 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-50-2M | 50 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-60 | 60 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-600 | 600 | 5...12 | voltage | - | - | 0.5 |
| E6B2-CWZ3E-600-2M | 600 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ3E-60-2M | 60 | 5...12 | voltage | - | - | 2 |
| E6B2-CWZ5B-200-2M | 200 | 12...24 | PNP | - | - | 2 |
| E6B2-CWZ5B-500-2M | 500 | 12...24 | PNP | - | - | 2 |
| E6B2-CWZ5B-600 | 600 | 12...24 | PNP | - | - | 0.5 |
| E6B2-CWZ5B-600-2M | 600 | 12...24 | PNP | - | - | 2 |
| E6B2-CWZ6C-10 | 10 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-1024 | 1024 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-10-2M | 10 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-1200 | 1200 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-1200-2M | 1200 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-1500 | 1500 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-1-600 | 600 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-1800-2M | 1800 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-20 | 20 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-200 | 200 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-20-2M | 20 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-30 | 30 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-300 | 300 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-300-2M | 300 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-30-2M | 30 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-40 | 40 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-400-2M | 400 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-40-2M | 40 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-50 | 50 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-50-2M | 50 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-600-2M | 600 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-60-2M | 60 | 5...24 | NPN | - | - | 2 |
| E6B2-CWZ6C-6-600 | 600 | 5...24 | NPN | - | - | 0.5 |
| E6B2-CWZ6C-720 | 720 | 5...24 | NPN | - | - | 0.5 |
