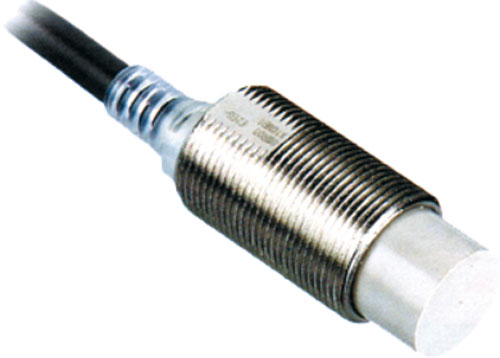

Inductive proximity sensors, E2E-DC series
| Type of sensor | inductive |
| Supply voltage | 12...24V DC |
| Max. operating current | 100mA |
| Operating temperature | -25...70°C |
| IP rating | IP67 |
| Plating material | nickel |
| Symbol | Housing | Kind of forehead | Range | Output conf. | Connection | Overall len. | fswitch. max | Dim. |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [Hz] | ||||||
| E2E-X3D2-N | M12 | embedded | 0...3 | 2-wire NC | cables | 38 | 1k | Fig. 1. |
| E2E-X14MD1 | M18 | non-embedded | 0...14 | 2-wire NO | cables | 43 | 400 | Fig. 2. |
| E2E-X2D1-M1G | M8 | embedded | 0...2 | 2-wire NO | M12 male | 43 | 1.5k | - |
| E2E-X14MD1-M1G | M18 | non-embedded | 0...14 | 2-wire NO | M12 male | 43 | 400 | - |
| E2E-X2D1-M1GJ-03M | M8 | embedded | 0...2 | 2-wire NO | M12, cables | 37 | 1.5k | - |
| E2E-X2D1-M3G | M8 | embedded | 0...2 | 2-wire NO | M8 male | 43 | 1.5k | - |
| E2E-X3D1-M1GJ-03M | M12 | embedded | 0...3 | 2-wire NO | M12, cables | 38 | 1k | - |
| E2E-X7D1-M1G | M18 | embedded | 0...7 | 2-wire NO | M12 male | 53 | 500 | - |
| Symbol | Body material | Lead length |
|---|---|---|
| [m] | ||
| E2E-X3D2-N | brass | 2 |
| E2E-X14MD1 | brass | 2 |
| E2E-X2D1-M1G | brass | - |
| E2E-X14MD1-M1G | brass | - |
| E2E-X2D1-M1GJ-03M | brass | 0.3 |
| E2E-X2D1-M3G | stainless steel | - |
| E2E-X3D1-M1GJ-03M | brass | 0.3 |
| E2E-X7D1-M1G | brass | - |
