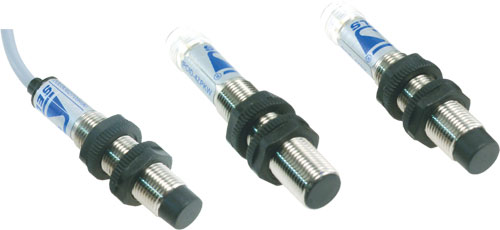

Inductive proximity sensors, PCID series
| Type of sensor | inductive |
| Body material | brass |
| Supply voltage | 10...30V DC |
| Max. operating current | 200mA |
| Operating temperature | -25...70°C |
| IP rating | IP67 |
| Symbol | Plating material | Housing | Kind of forehead | Range | Output conf. | Connection | Number of pins | fswitch. max | Overall len. | Lead length |
|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [Hz] | [mm] | [m] | |||||||
| PCID-1.5ZP | nickel | M8 | embedded | 0...1.5 | PNP / NO | cables | - | 3k | 45 | 2 |
| PCID-1.5RP | nickel | M8 | embedded | 0...1.5 | PNP / NC | cables | - | 5k | 45 | 2 |
| PCID-1.5ZN | nickel | M8 | embedded | 0...1.5 | NPN / NO | cables | - | 3k | 45 | 2 |
| PCID-1.5RN | nickel | M8 | embedded | 0...1.5 | NPN / NC | cables | - | 3k | 45 | 2 |
| PCID-1.5ZP-K | nickel | M8 | embedded | 0...1.5 | PNP / NO | M8 male | 3 | 3k | 50 | - |
| PCID-1.5RP-K | nickel | M8 | embedded | 0...1.5 | PNP / NC | M8 male | 3 | 3k | 50 | - |
| PCID-1.5ZN-K | nickel | M8 | embedded | 0...1.5 | NPN / NO | M8 male | 3 | 3k | 50 | - |
| PCID-1.5RN-K | nickel | M8 | embedded | 0...1.5 | NPN / NC | M8 male | 3 | 3k | 50 | - |
| PCID-2ZP | nickel | M12 | embedded | 0...2 | PNP / NO | cables | - | 1k | 61 | 2 |
| PCID-2RP | nickel | M12 | embedded | 0...2 | PNP / NC | cables | - | 1k | 61 | 2 |
| PCID-2ZN | nickel | M12 | embedded | 0...2 | NPN / NO | cables | - | 1k | 61 | 2 |
| PCID-2RN | nickel | M12 | embedded | 0...2 | NPN / NC | cables | - | 1k | 61 | 2 |
| PCID-2ZP-K | nickel | M12 | embedded | 0...2 | PNP / NO | M12 male | 4 | 1k | 71 | - |
| PCID-2RP-K | nickel | M12 | embedded | 0...2 | PNP / NC | M12 male | 4 | 1k | 71 | - |
| PCID-2ZN-K | nickel | M12 | embedded | 0...2 | NPN / NO | M12 male | 4 | 1k | 71 | - |
| PCID-2RN-K | nickel | M12 | embedded | 0...2 | NPN / NC | M12 male | 4 | 1k | 71 | - |
| PCID-4ZP | nickel | M12 | non-embedded | 0...4 | PNP / NO | cables | - | 800 | 61 | 2 |
| PCID-4RP | nickel | M12 | non-embedded | 0...4 | PNP / NC | cables | - | 800 | 61 | 2 |
| PCID-4ZN | nickel | M12 | non-embedded | 0...4 | NPN / NO | cables | - | 800 | 61 | 2 |
| PCID-4RN | nickel | M12 | non-embedded | 0...4 | NPN / NC | cables | - | 800 | 61 | 2 |
| PCID-4ZP-K | nickel | M12 | non-embedded | 0...4 | PNP / NO | M12 male | 4 | 800 | 71 | - |
| PCID-4RP-K | nickel | M12 | non-embedded | 0...4 | PNP / NC | M12 male | 4 | 800 | 71 | - |
| PCID-4ZN-K | nickel | M12 | non-embedded | 0...4 | NPN / NO | M12 male | 4 | 800 | 71 | - |
| PCID-4RN-K | nickel | M12 | non-embedded | 0...4 | NPN / NC | M12 male | 4 | 800 | 71 | - |
| PCID-5ZP | nickel | M18 | embedded | 0...5 | PNP / NO | cables | - | 800 | 76 | 2 |
| PCID-5RP | nickel | M18 | embedded | 0...5 | PNP / NC | cables | - | 800 | 76 | 2 |
| PCID-5ZN | nickel | M18 | embedded | 0...5 | NPN / NO | cables | - | 800 | 76 | 2 |
| PCID-5RN | nickel | M18 | embedded | 0...5 | NPN / NC | cables | - | 800 | 76 | 2 |
| PCID-5ZP-K | nickel | M18 | embedded | 0...5 | PNP / NO | M12 male | 4 | 800 | 91 | - |
| PCID-5RP-K | nickel | M18 | embedded | 0...5 | PNP / NC | M12 male | 4 | 800 | 91 | - |
| PCID-5ZN-K | nickel | M18 | embedded | 0...5 | NPN / NO | M12 male | 4 | 800 | 91 | - |
| PCID-5RN-K | nickel | M18 | embedded | 0...5 | NPN / NC | M12 male | 4 | 800 | 91 | - |
| PCID-8ZP | nickel | M18 | non-embedded | 0...8 | PNP / NO | cables | - | 500 | 76 | 2 |
| PCID-8RP | nickel | M18 | non-embedded | 0...8 | PNP / NC | cables | - | 500 | 76 | 2 |
| PCID-8ZN | nickel | M18 | non-embedded | 0...8 | NPN / NO | cables | - | 500 | 76 | 2 |
| PCID-8RN | nickel | M18 | non-embedded | 0...8 | NPN / NC | cables | - | 500 | 76 | 2 |
| PCID-8ZP-K | nickel | M18 | non-embedded | 0...8 | PNP / NO | M12 male | 4 | 500 | 91 | - |
| PCID-8RP-K | nickel | M18 | non-embedded | 0...8 | PNP / NC | M12 male | 4 | 500 | 91 | - |
| PCID-8ZN-K | nickel | M18 | non-embedded | 0...8 | NPN / NO | M12 male | 4 | 500 | 91 | - |
| PCID-8RN-K | nickel | M18 | non-embedded | 0...8 | NPN / NC | M12 male | 4 | 500 | 91 | - |
| PCID-10ZP | nickel | M30 | embedded | 0...10 | PNP / NO | cables | - | 300 | 77 | 2 |
| PCID-10RP | nickel | M30 | embedded | 0...10 | PNP / NC | cables | - | 300 | 77 | 2 |
| PCID-10ZN | nickel | M30 | embedded | 0...10 | NPN / NO | cables | - | 300 | 77 | 2 |
| PCID-10RN | nickel | M30 | embedded | 0...10 | NPN / NC | cables | - | 300 | 77 | 2 |
| PCID-10RP-K | nickel | M30 | embedded | 0...10 | PNP / NC | M12 male | 4 | 300 | 92 | - |
| PCID-10ZN-K | nickel | M30 | embedded | 0...10 | NPN / NO | M12 male | 4 | 300 | 92 | - |
| PCID-10RN-K | nickel | M30 | embedded | 0...10 | NPN / NC | M12 male | 4 | 300 | 92 | - |
| PCID-15ZP | nickel | M30 | non-embedded | 0...15 | PNP / NO | cables | - | 100 | 77 | 2 |
| PCID-15RP | nickel | M30 | non-embedded | 0...15 | PNP / NC | cables | - | 100 | 77 | 2 |
| PCID-15ZN | nickel | M30 | non-embedded | 0...15 | NPN / NO | cables | - | 100 | 77 | 2 |
| PCID-15RN | nickel | M30 | non-embedded | 0...15 | NPN / NC | cables | - | 100 | 77 | 2 |
| PCID-15ZP-K | nickel | M30 | non-embedded | 0...15 | PNP / NO | M12 male | 4 | 100 | 92 | - |
| PCID-15RP-K | nickel | M30 | non-embedded | 0...15 | PNP / NC | M12 male | 4 | 100 | 92 | - |
| PCID-15ZN-K | nickel | M30 | non-embedded | 0...15 | NPN / NO | M12 male | 4 | 100 | 92 | - |
| PCID-15RN-K | nickel | M30 | non-embedded | 0...15 | NPN / NC | M12 male | 4 | 100 | 92 | - |
| PCID2ZPKW-M8-45-M8 | nickel | M8 | embedded | 0...2 | PNP / NO | M8 male | 3 | 2k | 45 | - |
| PCID3ZPKW-M8-45-M8 | nickel | M8 | embedded | 0...3 | PNP / NO | M8 male | 3 | 1k | 45 | - |
| PCID3ZPWM8452M | nickel | M8 | embedded | 0...3 | PNP / NO | cables | - | - | 45 | 2 |
| PCID3RPKWM832M8 | brass | M8 | embedded | 0...3 | PNP / NC | M8 male | 3 | 1k | 32 | - |
| PCID6ZPKM845M8 | brass | M8 | non-embedded | 0...6 | PNP / NO | M8 male | 3 | 500 | 45 | - |
