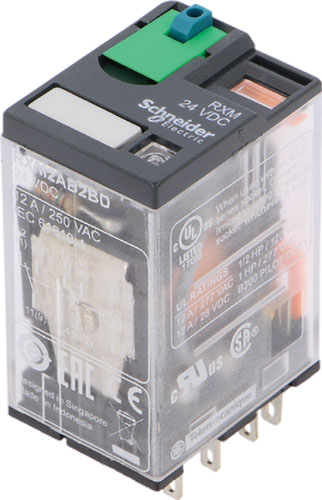

Industrial relays, RXM series
| Manufacturer | SCHNEIDER ELECTRIC |
| Type of relay | electromagnetic |
| Variant | industrial |
| Mounting | socket |
| Switched voltage | max. 250V AC |
| Switched voltage | max. 28V DC |
| Body dimensions | 40x27x21mm |
| Operating temperature | -40...55°C |
| Related items | RXZE14P, RXZE2S114M |
| Contacts layout | DPDT |
| Icontacts max | 5A |
| AC load rating @R* | 5A / 250V AC |
| DC load rating @R* | 5A / 28V DC |
| Contact resistance | 100mΩ |
| Pcoil | 900mW |

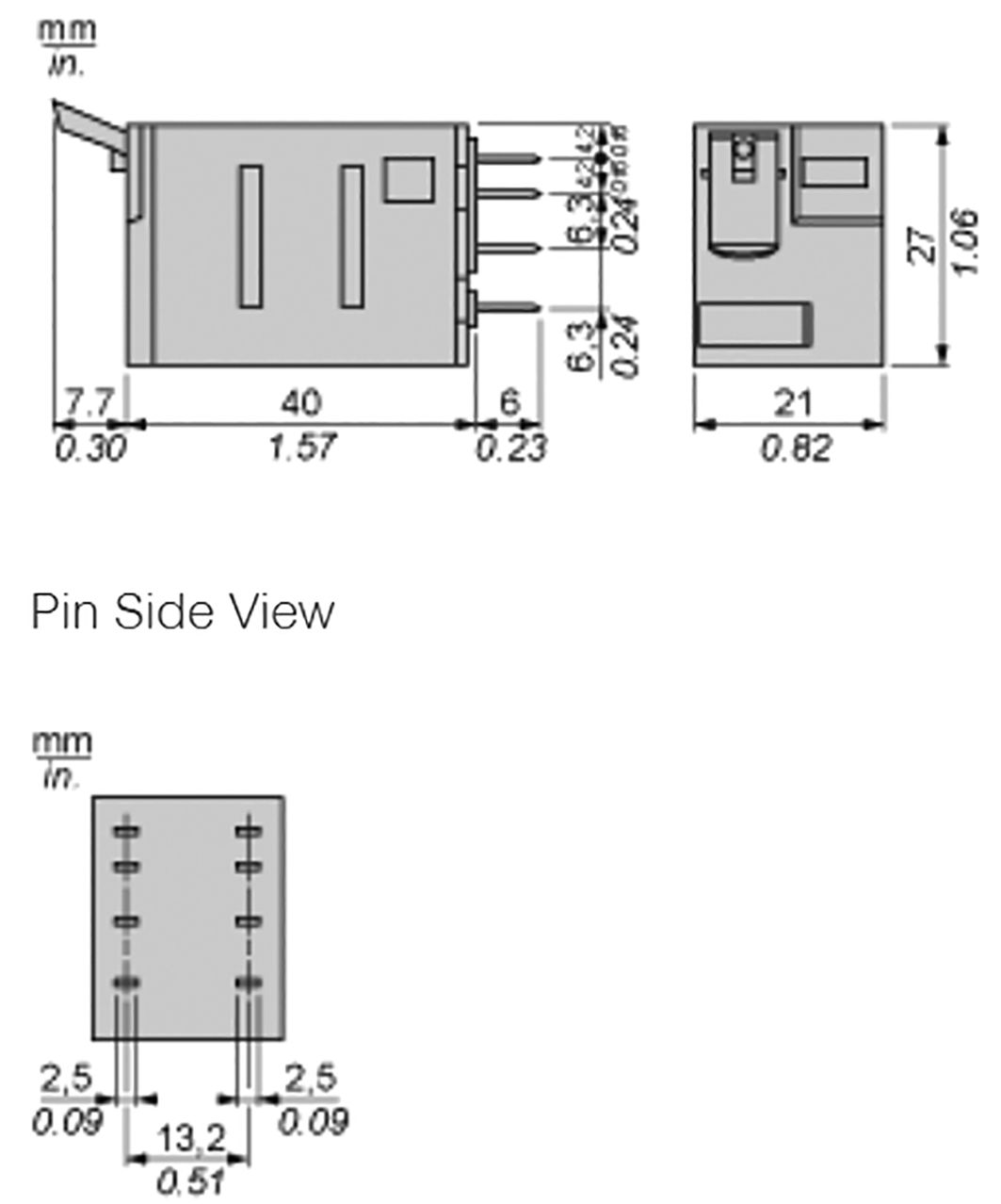

| Dimensions | Fig. 1-1. |
* at resistive load
| Symbol | Manufacturer series | Ucoil | Pcoil | Output configuration |
|---|---|---|---|---|
| [VA] | ||||
| RXM2AB2BD | Zelio Relay | 24V DC | - | Fig. 2-1. |
| RXM2AB1ED | Zelio Relay | 48V DC | - | Fig. 2-1. |
| RXM2AB1B7 | Zelio Relay | 24V AC | 1.2 | Fig. 2-1. |
| RXM2AB1F7 | Zelio Relay | 120V AC | 1.2 | Fig. 2-1. |
| RXM2AB1P7 | Zelio Relay | 230V AC | 1.2 | Fig. 2-1. |
| RXM2AB2P7 | Zelio Relay | 230V AC | 1.2 | Fig. 2-1. |
| RXM2AB1BD | Zelio Relay | 24V DC | - | - |
| RXM2AB1E7 | Zelio Relay | 48V AC | - | - |
| RXM2AB1FD | Zelio Relay | 110V DC | - | - |
| RXM2AB1JD | Zelio Relay | 12V DC | - | - |
| RXM2AB2B7 | Zelio Relay | 24V AC | - | - |
| RXM2AB2ED | Zelio Relay | 48V DC | - | - |
| RXM2AB2F7 | Zelio Relay | 120V AC | - | - |
| RXM2AB2JD | Zelio Relay | 12V DC | - | - |
| RXM2LB1BD | Zelio Relay | 24V DC | - | - |
| RXM2LB1P7 | Zelio Relay | 230V AC | - | - |
| RXM2LB2B7 | Zelio Relay | 24V AC | - | - |
| RXM2LB2BD | Zelio Relay | 24V DC | - | - |
| RXM2LB2P7 | Zelio Relay | 230V AC | - | - |
