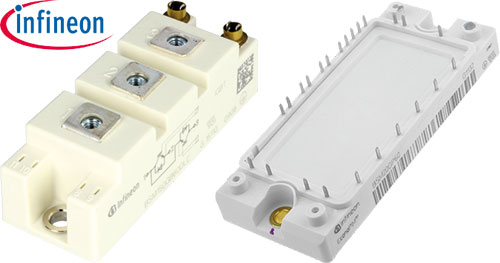

INFINEON TECHNOLOGIES IGBT modules
| Symbol | Manufacturer's part number | Manufacturer | Type of semiconductor module | Structure | Urmax | Ic | Icm | Uge | Power dissipation | Case | Mech. mounting | Electr. mounting | Topology | Technology | Application |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V] | [A] | [A] | [V] | [W] | |||||||||||
| DDB6U104N16RRBPSA1 | DDB6U104N16RRBPSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.6k | 50 | 100 | ±20 | 350 | AG-ECONO2B | screw | Press-in PCB | boost chopper, three-phase diode bridge, NTC thermistor | EconoBRIDGE | - |
| DDB6U134N16RRBPSA1 | DDB6U134N16RRBPSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.6k | 70 | 150 | ±20 | 500 | AG-ECONO2B | screw | Press-in PCB | boost chopper, three-phase diode bridge, NTC thermistor | EconoBRIDGE | - |
| DDB6U50N16W1RBPSA1 | DDB6U50N16W1RBPSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.6k | 50 | 100 | ±20 | - | AG-EASY1B | screw | Press-in PCB | boost chopper, three-phase diode bridge | TRENCHSTOP | - |
| DDB6U75N16W1RBOMA1 | DDB6U75N16W1RBOMA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.6k | 50 | 100 | ±20 | 335 | AG-EASY1B | screw | Press-in PCB | boost chopper, three-phase diode bridge, NTC thermistor | - | - |
| DF400R12KE3 | DF400R12KE3HOSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.2k | 400 | 800 | ±20 | 2k | AG-62MM-1 | screw | screw | buck chopper | - | - |
| F3L300R07PE4 | F3L300R07PE4 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 650 | 300 | 600 | ±20 | 940 | AG-ECONO4-1 | screw | Press-Fit, screw | three-level inverter; single-phase, NTC thermistor | EconoPACK 4 | - |
| F4150R12KS4BOSA1 | F4150R12KS4BOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 150 | 300 | ±20 | 960 | AG-ECONO3-4 | screw | Press-in PCB | IGBT half-bridge x2, NTC thermistor | EconoPACK 3 | - |
| F475R06W1E3 | F475R06W1E3BOMA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 600 | 75 | 150 | ±20 | 275 | AG-EASY1B-1 | screw | Press-in PCB | IGBT half-bridge x2, NTC thermistor | EasyPACK 1B | - |
| F475R12KS4BOSA1 | F475R12KS4BOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 75 | 150 | ±20 | 500 | AG-ECONO2-6 | screw | Press-in PCB | IGBT half-bridge x2, NTC thermistor | EconoPACK 2 | - |
| FB30R06W1E3 | FB30R06W1E3BOMA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 600 | 30 | 60 | ±20 | 115 | AG-EASY1B-1 | screw | Press-in PCB | single-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EasyPIM 1B | - |
| FD1000R33HE3KBPSA1 | FD1000R33HE3KBPSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 3.3k | 1k | 2k | ±20 | 11.5k | AG-IHVB190 | screw | screw | buck-boost chopper | - | Inverter |
| FD300R06KE3 | FD300R06KE3HOSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 600 | 300 | 600 | ±20 | - | AG-62MM-1 | screw | screw | boost chopper | - | Inverter |
| FD300R12KE3 | FD300R12KE3HOSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.2k | 300 | 600 | ±20 | 1.47k | AG-62MM-1 | screw | screw | boost chopper | - | Inverter |
| FF200R12KE3 | FF200R12KE3HOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 200 | 400 | ±20 | 1.05k | AG-62MM-1 | screw | screw | IGBT half-bridge | - | - |
| FF200R12KE4P | FF200R12KE4PHOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 200 | 400 | ±20 | - | AG-62MM-1 | screw | screw | IGBT half-bridge | - | - |
| FF200R12KS4HOSA1 | FF200R12KS4HOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 200 | 400 | ±20 | 1.4k | AG-62MM-1 | screw | screw | IGBT half-bridge | - | - |
| FF200R12KT3E | FF200R12KT3EHOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor, common emitter | 1.2k | 200 | 400 | ±20 | 1.05k | AG-62MM-1 | screw | FASTON connectors, screw | IGBT x2 | - | - |
| FF200R12KT4 | FF200R12KT4HOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 200 | 400 | ±20 | 1.1k | AG-62MM-1 | screw | screw | IGBT half-bridge | - | - |
| FF200R17KE4 | FF200R17KE4HOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.7k | 200 | 400 | ±20 | 1.25k | AG-62MM-1 | screw | screw | IGBT half-bridge | - | - |
| FF300R06KE3 | FF300R06KE3 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 600 | 300 | 600 | ±20 | 940 | AG-62MM-1 | screw | screw | IGBT half-bridge | - | - |
| FF300R12KE3 | FF300R12KE3 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 300 | 600 | ±20 | 1.45k | AG-62MM-1 | screw | screw | IGBT half-bridge | - | - |
| FF300R12KS4 | FF300R12KS4 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 300 | 600 | ±20 | 1.95k | AG-62MM-1 | screw | screw | IGBT half-bridge | - | - |
| FF300R12KT3E | FF300R12KT3EHOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor, common emitter | 1.2k | 300 | 600 | ±20 | 1.45k | AG-62MM-1 | screw | FASTON connectors, screw | IGBT x2 | - | - |
| FF300R12KT4 | FF300R12KT4HOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 300 | 600 | ±20 | 1.6k | AG-62MM-1 | screw | screw | IGBT half-bridge | - | - |
| FF300R17ME4 | FF300R17ME4BOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.7k | 300 | 600 | ±20 | 1.8k | AG-ECONOD-3 | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | EconoDUAL 3 | - |
| FF450R06ME3 | FF450R06ME3 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 600 | 450 | 900 | ±20 | 1.25k | AG-ECONOD-3 | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | EconoDUAL 3 | - |
| FF450R12KE4HOSA1 | FF450R12KE4HOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 450 | 900 | ±20 | 2.4k | AG-62MM | screw | screw | IGBT half-bridge | - | - |
| FF450R12KT4HOSA1 | FF450R12KT4HOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 450 | 900 | ±20 | 2.4k | AG-62MM | screw | FASTON connectors, screw | IGBT half-bridge | - | - |
| FF450R33T3E3B5BPSA | FF450R33T3E3B5BPSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 3.3k | 450 | 900 | ±20 | - | AG-XHP100-6 | screw | screw | IGBT half-bridge | XHP3 | - |
| FF500R17KE4 | FF500R17KE4BOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.7k | 500 | 1k | ±20 | - | AG-62MM-1 | screw | screw | IGBT half-bridge | - | - |
| FF900R12IE4 | FF900R12IE4 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 900 | 1.8k | ±20 | 5.1k | AG-PRIME2-1 | screw | screw | IGBT half-bridge, NTC thermistor | PrimePACK 2 | - |
| FF900R12ME7B11 | FF900R12ME7B11BOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 900 | 1.8k | ±20 | - | AG-ECONOD-5 | screw | Press-Fit, screw | IGBT half-bridge, NTC thermistor | TRENCHSTOP | - |
| FP06R12W1T4B3 | FP06R12W1T4B3BOMA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.2k | 6 | 12 | ±20 | 94 | AG-EASY1B-1 | screw | Press-in PCB | three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EasyPIM 1B | - |
| FP100R12KT4B11 | FP100R12KT4B11BOSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.2k | 100 | 200 | ±20 | 515 | AG-ECONO3-3 | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EconoPIM 3 | - |
| FP10R12W1T7B11 | FP10R12W1T7B11BOMA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.2k | 10 | 20 | ±20 | - | AG-EASY1B-2 | screw | Press-in PCB | three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EasyPIM 1B | - |
| FP15R12W1T4B3 | FP15R12W1T4_B3 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.2k | 15 | 30 | ±20 | 130 | AG-EASY1B-1 | screw | Press-in PCB | three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EasyPIM 1B | - |
| FP20R06W1E3B11 | FP20R06W1E3B11BOMA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 600 | 20 | 40 | ±20 | 94 | AG-EASY1B-2 | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EasyPIM 1B | Inverter |
| FP25R12W1T7B11 | FP25R12W1T7B11BPSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.2k | 25 | 50 | ±20 | - | AG-EASY1B-2 | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EasyPIM 1B | - |
| FP30R06KE3BPSA1 | FP30R06KE3BPSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 600 | 30 | 60 | ±20 | 125 | AG-ECONO2C | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EconoPIM 2 | Inverter |
| FP40R12KT3BOSA1 | FP40R12KT3BOSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.2k | 40 | 80 | ±20 | 210 | AG-ECONO2-5 | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EconoPIM 2 | Inverter |
| FP50R06W2E3B11 | FP50R06W2E3B11BOMA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 600 | 50 | 100 | ±20 | 175 | AG-EASY2B-2 | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EasyPIM 2B | - |
| FP50R12KT3BOSA1 | FP50R12KT3BOSA1 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.2k | 50 | 100 | ±20 | 280 | AG-ECONO3-3 | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EconoPIM 2 | Inverter |
| FP75R12KT4 | FP75R12KT4 | INFINEON TECHNOLOGIES | IGBT | diode/transistor | 1.2k | 75 | 150 | ±20 | 385 | AG-ECONO3-3 | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | EconoPIM 3 | Inverter |
| FS100R12W2T7B11 | FS100R12W2T7B11BOMA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 100 | 200 | ±20 | - | AG-EASY2B-2 | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | EasyPACK 2B | - |
| FS10R12VT3 | FS10R12VT3BOMA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 10 | 20 | ±20 | 64 | AG-EASY750-1 | - | Press-in PCB | IGBT three-phase bridge | EasyPACK | - |
| FS150R12KT4 | FS150R12KT4BOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 150 | 300 | ±20 | 750 | AG-ECONO3-4 | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | EconoPACK 3 | - |
| FS150R17PE4 | FS150R17PE4BOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.7k | 150 | 300 | ±20 | - | AG-ECONO4-1 | screw | Press-Fit, screw | IGBT three-phase bridge, NTC thermistor | EconoPACK 4 | - |
| FS15R12VT3 | FS15R12VT3BOMA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 15 | 30 | ±20 | 86 | AG-EASY750-1 | - | Press-in PCB | IGBT three-phase bridge | EasyPACK | - |
| FS200R12KT4RB11 | FS200R12KT4RB11BOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 200 | 400 | ±20 | 1k | AG-ECONO3-4 | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | EconoPACK 3 | - |
| FS50R12KE3BPSA1 | FS50R12KE3BPSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 50 | 100 | ±20 | 270 | AG-ECONO2B | screw | Press-in PCB | - | EconoPACK 2 | Inverter |
| FS75R12W2T4B11 | FS75R12W2T4B11BOMA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 75 | 150 | ±20 | 375 | AG-EASY2B-2 | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | EasyPACK 2B | - |
| FS75R17KE3BOSA1 | FS75R17KE3BOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.7k | 75 | 150 | ±20 | 465 | AG-ECONO3-4 | screw | Press-in PCB | IGBT half-bridge x3, NTC thermistor | - | Inverter |
| FS820R08A6P2LB | FS820R08A6P2LBBPSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 750 | 450 | 1.64k | ±20 | 714 | AG-HYBRIDD-1 | screw | Press-in PCB | IGBT half-bridge x3, NTC thermistor | HybridPACK | Inverter |
| FZ1000R33HE3BPSA1 | FZ1000R33HE3BPSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 3.3k | 1k | 2k | ±20 | - | AG-IHVB130-3 | screw | screw | - | TRENCHSTOP | - |
| FZ1400R33HE4BPSA1 | FZ1400R33HE4BPSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor, common emitter | 3.3k | 1.4k | 2.8k | ±20 | - | AG-IHVB130-3 | screw | screw | IGBT x2 | TRENCHSTOP | - |
| FZ2000R33HE4BOSA1 | FZ2000R33HE4BOSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor, common emitter | 3.3k | 2k | 4k | ±20 | - | AG-IHVB190-3 | screw | screw | IGBT x3 | TRENCHSTOP | - |
| FZ400R12KS4HOSA1 | FZ400R12KS4HOSA1 | INFINEON TECHNOLOGIES | IGBT | single transistor | 1.2k | 400 | 800 | ±20 | 2.5k | AG-62MM | screw | screw | - | - | - |
| FZ400R17KE4HOSA1 | FZ400R17KE4HOSA1 | INFINEON TECHNOLOGIES | IGBT | single transistor | 1.7k | 400 | 800 | ±20 | 2.5k | AG-62MMES | screw | screw | - | TRENCHSTOP | - |
| FZ600R12KE3HOSA1 | FZ600R12KE3HOSA1 | INFINEON TECHNOLOGIES | IGBT | single transistor | 1.2k | 600 | 1.2k | ±20 | 2.8k | AG-62MM | screw | screw | - | - | - |
| FZ600R12KS4 | FZ600R12KS4HOSA1 | INFINEON TECHNOLOGIES | IGBT | single transistor | 1.2k | 600 | 1.2k | ±20 | 3.9k | AG-62MM-2 | screw | screw | - | - | - |
| FZ900R12KE4HOSA1 | FZ900R12KE4HOSA1 | INFINEON TECHNOLOGIES | IGBT | single transistor | 1.2k | 900 | 1.8k | ±20 | 4.3k | AG-62MMES | screw | screw | - | - | - |
| IFF450B12ME4PB11 | IFF450B12ME4PB11BPSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 450 | 900 | ±20 | - | AG-ECONOD-6 | screw | Press-Fit, screw | IGBT half-bridge, NTC thermistor | EconoDUAL 3 | for UPS, Inverter, photovoltaics, motors |
| IFF600B12ME4PB11 | IFF600B12ME4PB11BPSA1 | INFINEON TECHNOLOGIES | IGBT | transistor/transistor | 1.2k | 600 | 1.2k | ±20 | - | AG-ECONOD-6 | screw | Press-Fit, screw | IGBT half-bridge, NTC thermistor | EconoDUAL 3 | for UPS, Inverter, photovoltaics, motors |
