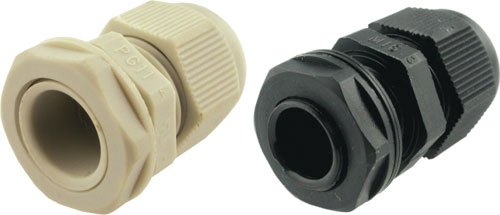

Insulating cable glands with PG or metric threads
| Cable accessories | cable gland |
| IP rating | IP68 |
| Manufacturer | KSS WIRING |
| Body material | polyamide |
| Flammability rating | UL94V-2 |
| Kit contents | nut; gasket |
| Operating voltage max. | 50V AC |
| Uoper max | 75V DC |
| Symbol | Body colour | Manufacturer's part number | Øext. cable | Gland |
|---|---|---|---|---|
| [mm] | ||||
| EG-7GY1 | grey | EG-7GY1 | 3.5...6 | PG7 |
| EG-7 | black | EGRWW7 | 3.5...6 | PG7 |
| EG-9GY1 | grey | EG-9GY1 | 4...8 | PG9 |
| EG-9 | black | EG-9 | 4...8 | PG9 |
| EG-11GY1 | grey | EG-11GY1 | 5...10 | PG11 |
| EG-11 | black | EG-11 | 5...10 | PG11 |
| EG-13.5GY1 | grey | EGRWW13.5GY1 | 6...12 | PG13,5 |
| EG-13.5 | black | EG-13.5 | 6...12 | PG13,5 |
| EG-16GY1 | grey | EG-16GY1 | 10...14 | PG16 |
| EG-16 | black | EGRWW16 | 10...14 | PG16 |
| EG-21GY1 | grey | EG-21GY1 | 13...18 | PG21 |
| EG-29GY1 | grey | EGRWW29GY1 | 18...25 | PG29 |
| EG-36GY1 | grey | EG-36GY1 | 22...32 | PG36 |
| EG-42GY1 | grey | EG-42GY1 | 30...38 | PG42 |
| AG-12GY1 | grey | AG-12GY1 | 3...6.5 | M12 |
| AG-12 | black | AGR12 | 3...6.5 | M12 |
| AG-16GY1 | grey | AG-16GY1 | 5...10 | M16 |
| AG-16 | black | AG-16 | 5...10 | M16 |
| AG-20GY1 | grey | AG-20GY1 | 10...14 | M20 |
| AG-25GY1 | grey | AG-25GY1 | 13...18 | M25 |
| AG-32GY1 | grey | AGR32GY1 | 18...25 | M32 |
| EGNLR9GY1 | grey | EGNLR9GY1 | 4...8 | PG9 |
| Symbol | Thread | Dimensions | D1 dimension | L1 dimension | Dimension L2 | L3 dimension | Cable gland version |
|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | ||||
| EG-7GY1 | PG | Fig. 1. | 12.5 | 8 | 12.8 | 13.4 | - |
| EG-7 | PG | Fig. 1. | 12.5 | 8 | 12.8 | 13.4 | - |
| EG-9GY1 | PG | Fig. 1. | 15.2 | 8.1 | 13.9 | 15.2 | - |
| EG-9 | PG | Fig. 1. | 15.2 | 8.1 | 13.9 | 15.2 | - |
| EG-11GY1 | PG | Fig. 1. | 18.3 | 8.2 | 15.4 | 18.3 | - |
| EG-11 | PG | Fig. 1. | 18.3 | 8.2 | 15.4 | 18.3 | - |
| EG-13.5GY1 | PG | Fig. 1. | 20.4 | 8.9 | 15.8 | 18.9 | - |
| EG-13.5 | PG | Fig. 1. | 20.4 | 8.9 | 15.8 | 18.9 | - |
| EG-16GY1 | PG | Fig. 1. | 22.5 | 8.9 | 17.3 | 19.7 | - |
| EG-16 | PG | Fig. 1. | 22.5 | 8.9 | 17.3 | 19.7 | - |
| EG-21GY1 | PG | Fig. 1. | 28.3 | 10.8 | 18.6 | 23.9 | - |
| EG-29GY1 | PG | Fig. 1. | 37 | 10.9 | 20.5 | 27.4 | - |
| EG-36GY1 | PG | Fig. 1. | 47 | 14.4 | 24.4 | 30.5 | - |
| EG-42GY1 | PG | Fig. 1. | 54 | 14.6 | 25.4 | 31.6 | - |
| AG-12GY1 | metric | Fig. 1. | 12 | 7.9 | 12.1 | 13.3 | - |
| AG-12 | metric | Fig. 1. | 12 | 7.9 | 12.1 | 13.3 | - |
| AG-16GY1 | metric | Fig. 1. | 16 | 15.5 | 14.4 | 16.7 | with long thread |
| AG-16 | metric | Fig. 1. | 16 | - | 14.4 | 16.7 | with long thread |
| AG-20GY1 | metric | Fig. 1. | 20 | 15 | 19.5 | 18.4 | - |
| AG-25GY1 | metric | Fig. 1. | 25 | 15 | 18.7 | 22.3 | with long thread |
| AG-32GY1 | metric | Fig. 1. | 32 | 14.7 | 20.3 | 26.2 | - |
| EGNLR9GY1 | - | Fig. 1. | - | - | - | - | - |
