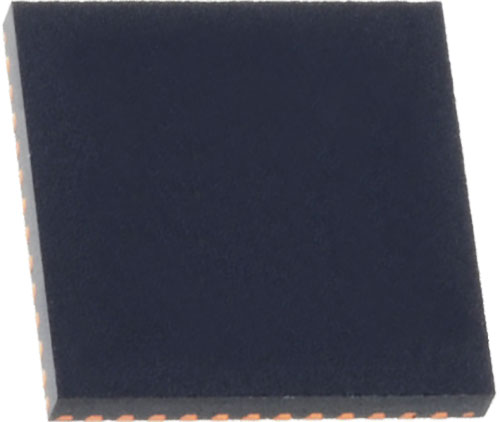

Integrated circuit: multimedia controller; BRIDGETEK
| Mounting | SMD |
| Manufacturer | BRIDGETEK |
| Supply voltage | 3.3V DC |
| IC | multimedia controller |
| Symbol | Interface | Case |
|---|---|---|
| BT815Q-R | A/D; HMIs; I2C; parallel 24bit RGB; SPI | VQFN64 |
| BT815Q-T | A/D; HMIs; I2C; parallel 24bit RGB; SPI | VQFN64 |
| BT816Q-R | A/D; HMIs; I2C; parallel 24bit RGB; SPI | VQFN64 |
| BT816Q-T | A/D; HMIs; I2C; parallel 24bit RGB; SPI | VQFN64 |
| BT817AQ-R | LVDS; parallel 24bit RGB; PWM; QSPI; SPI | VQFN64 |
| BT817AQ-T | LVDS; parallel 24bit RGB; PWM; QSPI; SPI | VQFN64 |
| BT817Q-R | LVDS; parallel 24bit RGB; PWM; QSPI x2 | VQFN64 |
| BT817Q-T | LVDS; parallel 24bit RGB; PWM; QSPI x2 | VQFN64 |
| BT818Q-R | LVDS; parallel 24bit RGB; PWM; QSPI x2 | VQFN64 |
| BT818Q-T | LVDS; parallel 24bit RGB; PWM; QSPI x2 | VQFN64 |
| BT820B-T | 24bit RGB; LVDS; PWM; QSPI | BGA329 |
| BT880Q-R | GPIO; parallel 18bit RGB; PWM; QSPI; SPI | VQFN48 |
| BT880Q-T | GPIO; parallel 18bit RGB; PWM; QSPI; SPI | VQFN48 |
| BT881Q-R | GPIO; parallel 18bit RGB; PWM; QSPI; SPI | VQFN48 |
| BT881Q-T | GPIO; parallel 18bit RGB; PWM; QSPI; SPI | VQFN48 |
| BT882Q-R | GPIO; parallel 24bit RGB; PCM; PWM; QSPI; SPI | VQFN56 |
| BT882Q-T | GPIO; parallel 24bit RGB; PCM; PWM; QSPI; SPI | VQFN56 |
| BT883Q-R | GPIO; parallel 24bit RGB; PCM; PWM; QSPI; SPI | VQFN56 |
| BT883Q-T | GPIO; parallel 24bit RGB; PCM; PWM; QSPI; SPI | VQFN56 |
| FT800Q-R | I2C; parallel 18bit RGB; PWM; SPI | VQFN48 |
| FT800Q-T | A/D; I2C; parallel 18bit RGB; PWM; SPI | VQFN48 |
| FT801Q-R | I2C; parallel 18bit RGB; PWM; SPI | VQFN48 |
| FT801Q-T | I2C; parallel 18bit RGB; PWM; SPI | VQFN48 |
| FT810Q-R | A/D; I2C; parallel 18bit RGB; PWM; SPI | VQFN48 |
| FT810Q-T | A/D; I2C; parallel 18bit RGB; PWM; SPI | VQFN48 |
| FT811Q-R | A/D; I2C; parallel 18bit RGB; PWM; SPI | VQFN48 |
| FT811Q-T | A/D; I2C; parallel 18bit RGB; PWM; SPI | VQFN48 |
| FT812Q-R | A/D; I2C; parallel 24bit RGB; PWM; SPI | VQFN56 |
| FT812Q-T | A/D; I2C; parallel 24bit RGB; PWM; SPI | VQFN56 |
| FT813Q-R | A/D; I2C; parallel 24bit RGB; PWM; SPI | VQFN56 |
| FT813Q-T | A/D; I2C; parallel 24bit RGB; PWM; SPI | VQFN56 |
| Symbol | Operating temperature | Clock frequency | Application | Manufacturer series |
|---|---|---|---|---|
| [°C] | [MHz] | |||
| BT815Q-R | -40...85 | 72 | for LCD displays with capacitive touch panel | EVE3 |
| BT815Q-T | -40...85 | 72 | for LCD displays with capacitive touch panel | EVE3 |
| BT816Q-R | -40...85 | 72 | for LCD displays with resistive touch panel | EVE3 |
| BT816Q-T | -40...85 | 72 | for LCD displays with resistive touch panel | EVE3 |
| BT817AQ-R | -40...105 | 72 | for LCD displays with capacitive touch panel | EVE4 |
| BT817AQ-T | -40...105 | 72 | for LCD displays with capacitive touch panel | EVE4 |
| BT817Q-R | -40...85 | 72 | for LCD displays with capacitive touch panel | EVE4 |
| BT817Q-T | -40...85 | 72 | for LCD displays with capacitive touch panel | EVE4 |
| BT818Q-R | -40...85 | 72 | for LCD displays with resistive touch panel | EVE4 |
| BT818Q-T | -40...85 | 72 | for LCD displays with resistive touch panel | EVE4 |
| BT820B-T | -40...85 | 72 | for LCD displays with capacitive touch panel | EVE5 |
| BT880Q-R | -40...85 | 60 | for LCD displays with resistive touch panel | EVE HMI |
| BT880Q-T | -40...85 | 60 | for LCD displays with resistive touch panel | EVE HMI |
| BT881Q-R | -40...85 | 60 | for LCD displays with capacitive touch panel | EVE HMI |
| BT881Q-T | -40...85 | 60 | for LCD displays with capacitive touch panel | EVE HMI |
| BT882Q-R | -40...85 | 60 | for LCD displays with resistive touch panel | EVE HMI |
| BT882Q-T | -40...85 | 60 | for LCD displays with resistive touch panel | EVE HMI |
| BT883Q-R | -40...85 | 60 | for LCD displays with capacitive touch panel | EVE HMI |
| BT883Q-T | -40...85 | 60 | for LCD displays with capacitive touch panel | EVE HMI |
| FT800Q-R | -40...85 | 12 | for LCD displays with resistive touch panel | EVE |
| FT800Q-T | -40...85 | 48 | for LCD displays with resistive touch panel | EVE |
| FT801Q-R | -40...85 | 48 | for LCD displays with capacitive touch panel | EVE |
| FT801Q-T | -40...85 | 48 | for LCD displays with capacitive touch panel | EVE |
| FT810Q-R | -40...85 | 48 | for LCD displays with resistive touch panel | EVE2 |
| FT810Q-T | -40...85 | 60 | for LCD displays with resistive touch panel | EVE2 |
| FT811Q-R | -40...85 | 60 | for LCD displays with capacitive touch panel | EVE2 |
| FT811Q-T | -40...85 | 60 | for LCD displays with capacitive touch panel | EVE2 |
| FT812Q-R | -40...85 | 60 | for LCD displays with resistive touch panel | EVE2 |
| FT812Q-T | -40...85 | 60 | for LCD displays with resistive touch panel | EVE2 |
| FT813Q-R | -40...85 | 60 | for LCD displays with capacitive touch panel | EVE2 |
| FT813Q-T | -40...85 | 60 | for LCD displays with capacitive touch panel | EVE2 |
