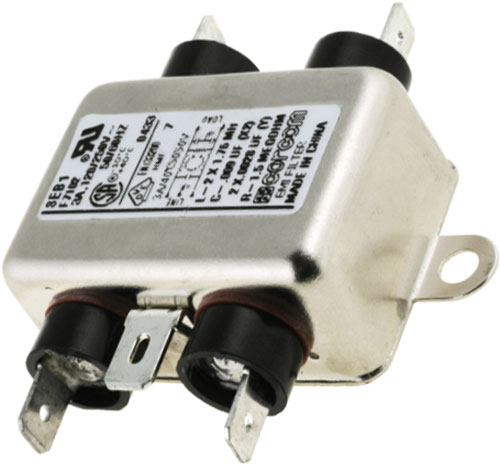

Interference filters, EB1 series

Interference filters, EB1 series, EB1-01, EB1-03, EB1-05, EB1-10 |EN|
Type of filteranti-interference
Operating voltage250V AC
Cx9nF
Cy2.8nF
Leakage current0.4mA
Leadsconnectors
Schematic diagramFig. 1-1.
Enclosure materialmetal
SeriesEB1
Mounting holes pitch54mm
Panel cutout diameter4.8mm
DimensionsFig. 2-1.
B dimension46.1mm
D dimension54mm
E dimension64.2mm
Leads dimensions6.3x0.8mm
Symbol Induct. of indiv. wind. Ioper. max A dimension C dimension Kind of filter
[mH] [A] [mm] [mm]
EB1-01 1.8 1 57.1 16.7 single-phase
EB1-03 1.7 3 66.1 19.9 single-phase
EB1-05 0.51 5 66.1 19.9 single-phase
