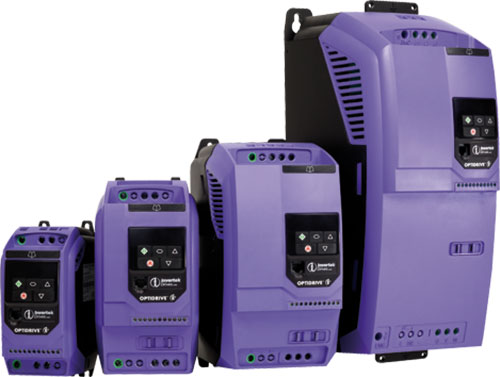

IP20; Optidrive E3; INVERTEK DRIVES
| Mounting | for DIN rail mounting, for wall mounting |
| Electrical connection | screw terminals |
| The programming method | keypad, PC |
| IP rating | IP20 |
| Number of analog outputs | 1 |
| Number of analog inputs | 1 |
| Input 1 properties | rotational speed setting with signal 0...10V, 4...20mA, 0...20mA |
| Type of automation module | vector inverter |
| Manufacturer | INVERTEK DRIVES |
| Manufacturer series | Optidrive E3 |
| Number of inputs | 4 |
| Number of outputs | 2 |
| Starting/stopping time | 0.1...600s |
| Output frequency | 0...500Hz |
| Operating temperature | -10...50°C |
| Symbol | Max motor power | Usup | Out. voltage | Inom |
|---|---|---|---|---|
| [kW] | [V AC] | [V AC] | [A] | |
| ODE3110070101201 | 0.37 | 110...115 | 1 x 115 | 7 |
| ODE31100701F1201 | 0.37 | 110...115 | 1 x 115 | 7 |
| ODE3210105104201 | 0.55 | 110...115 | 1 x 115 | 10.5 |
| ODE3120043101201 | 0.37 | 200...240 | 1 x 230 | 4.3 |
| ODE31200431F1201 | 0.37 | 200...240 | 1 x 230 | 4.3 |
| ODE3120070101201 | 0.75 | 200...240 | 1 x 230 | 7 |
| ODE31200701F1201 | 0.75 | 200...240 | 1 x 230 | 7 |
| ODE3220105104201 | 1.1 | 200...240 | 1 x 230 | 10.5 |
| ODE32201051F4201 | 1.1 | 200...240 | 1 x 230 | 10.5 |
| ODE-3-120023-1F12 | 0.37 | 200...240 | 3 x 230 | 2.3 |
| ODE-3-120043-1F12 | 0.75 | 200...240 | 3 x 230 | 4.3 |
| ODE-3-120070-1F12 | 1.5 | 200...240 | 3 x 230 | 7 |
| ODE-3-220070-1F42 | 1.5 | 200...240 | 3 x 230 | 7 |
| ODE-3-220105-1F42 | 2.2 | 200...240 | 3 x 230 | 10.5 |
| ODE-3-120023-1012 | 0.37 | 200...240 | 3 x 230 | 2.3 |
| ODE-3-120043-1012 | 0.75 | 200...240 | 3 x 230 | 4.3 |
| ODE-3-120070-1012 | 1.5 | 200...240 | 3 x 230 | 7 |
| ODE-3-220070-1042 | 1.5 | 200...240 | 3 x 230 | 7 |
| ODE-3-220105-1042 | 2.2 | 200...240 | 3 x 230 | 10.5 |
| ODE-3-220070-3F42 | 1.5 | - | 3 x 230 | 7 |
| ODE-3-220105-3F42 | 2.2 | - | 3 x 230 | 10.5 |
| ODE-3-320180-3F42 | 4 | - | 3 x 230 | 18 |
| ODE-3-320240-3F42 | 5.5 | - | 3 x 230 | 24 |
| ODE-3-420300-3F42 | 7.5 | - | 3 x 230 | 30 |
| ODE-3-420460-3F42 | 11 | - | 3 x 230 | 46 |
| ODE-3-120023-3012 | 0.37 | - | 3 x 230 | 2.3 |
| ODE-3-120070-3012 | 1.5 | - | 3 x 230 | 7 |
| ODE-3-220070-3042 | 1.5 | - | 3 x 230 | 7 |
| ODE-3-220105-3042 | 2.2 | - | 3 x 230 | 10.5 |
| ODE-3-320180-3042 | 4 | - | 3 x 230 | 18 |
| ODE-3-320240-3042 | 5.5 | - | 3 x 230 | 24 |
| ODE-3-420300-3042 | 7.5 | - | 3 x 230 | 30 |
| ODE-3-140022-3F12 | 0.75 | - | 3 x 400 | 2.2 |
| ODE-3-140041-3F12 | 1.5 | - | 3 x 400 | 4.1 |
| ODE-3-240041-3F42 | 1.5 | - | 3 x 400 | 4.1 |
| ODE-3-240058-3F42 | 2.2 | - | 3 x 400 | 5.8 |
| ODE-3-240095-3F42 | 4 | - | 3 x 400 | 9.5 |
| ODE-3-340140-3F42 | 5.5 | - | 3 x 400 | 14 |
| ODE-3-340180-3F42 | 7.5 | - | 3 x 400 | 18 |
| ODE-3-340240-3F42 | 11 | - | 3 x 400 | 24 |
| ODE-3-440300-3F42 | 15 | - | 3 x 400 | 30 |
| ODE-3-440390-3F42 | 18.5 | - | 3 x 400 | 39 |
| ODE-3-440460-3F42 | 22 | - | 3 x 400 | 46 |
| ODE-3-140022-3012 | 0.75 | - | 3 x 400 | 2.2 |
| ODE-3-140041-3012 | 1.5 | - | 3 x 400 | 4.1 |
| ODE-3-240058-3042 | 2.2 | - | 3 x 400 | 5.8 |
| ODE-3-240095-3042 | 4 | - | 3 x 400 | 9.5 |
| ODE-3-340140-3042 | 5.5 | - | 3 x 400 | 14 |
| ODE-3-340180-3042 | 7.5 | - | 3 x 400 | 18 |
| ODE-3-340240-3042 | 11 | - | 3 x 400 | 24 |
| ODE-3-140012-3F12 | 0.37 | - | 3 x 400 | 1.2 |
| ODE-3-520610-3F42 | 15 | - | 3 x 230 | 61 |
| ODE-3-520720-3F42 | 18.5 | - | 3 x 230 | 72 |
| ODE-3-540610-3F42 | 30 | - | 3 x 400 | 61 |
| ODE-3-540720-3F42 | 37 | - | 3 x 400 | 72 |
Features:
- integrated EMC filter (ODE31xxx1F1201, ODE32201051F4201, ODE-3-1xxxF12, ODE-3-2xxxF42, ODE-3-3xxx0-3F42, ODE-3-4xxx0-3F42, ODE-3-5xxx0-3F42)
- integrated brake transistor (ODE32xxx4201, ODE-3-xxx42)
Voltage between phases (for three phase system):
- 3 x 200...240V AC (ODE-3-220070-3F42, ODE-3-220070-3042, ODE-3-220105-3F42, ODE-3-220105-3042, ODE-3-320xxx42, ODE-3-420xxx42, ODE-3-120023-3012, ODE-3-120070-3012, ODE-3-520610-3F42, ODE-3-520720-3F42)
- 3 x 380...480V AC (ODE-3-1400xxx12, ODE-3-2400xxx42, ODE-3-340xxx42, ODE-3-440xx0-3F42, ODE-3-540610-3F42, ODE-3-540720-3F42)
