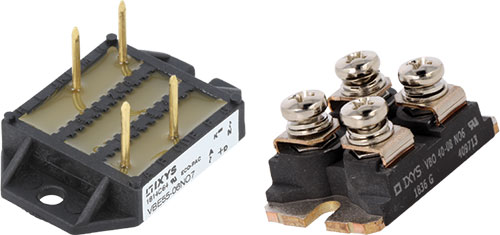

IXYS single-phase bridge rectifiers (modules)
| Ver. | module |
| Manufacturer | IXYS |
| Symbol | Bridge rectifier | If | Ifsm | Urmax | Case | Electr. mounting | Mech. mounting | Leads | Igt | Features | Technology | Leads dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [A] | [A] | [V] | [mA] | [mm] | ||||||||
| UGB3132AD | single-phase | 1.3 | 60 | 4.8k | UGB1 | THT | screw | - | - | - | - | - |
| UGB6124AG | single-phase | 1 | 50 | 10.5k | UGB1 | THT | screw | - | - | - | - | - |
| VBE100-06NO7 | single-phase | 100 | 520 | 600 | ECO-PAC 2 | THT | screw | wire Ø 1.5mm | - | - | FRED | - |
| VBE100-12NO7 | single-phase | 100 | 415 | 1.2k | ECO-PAC 2 | THT | screw | wire Ø 1.5mm | - | - | FRED | - |
| VBE17-06NO7 | single-phase | 27 | 45 | 600 | ECO-PAC 1 | THT | screw | - | - | - | FRED | - |
| VBE17-12NO7 | single-phase | 19 | 35 | 1.2k | ECO-PAC 1 | THT | screw | - | - | - | FRED | - |
| VBE20-20NO1 | single-phase | 20 | 65 | 2k | V1-A-Pack | FASTON connectors | screw | connectors | - | - | FRED | 2x0.5 |
| VBE26-06NO7 | single-phase | 44 | 95 | 600 | ECO-PAC 1 | THT | screw | - | - | - | FRED | - |
| VBE26-12NO7 | single-phase | 32 | 75 | 1.2k | ECO-PAC 1 | THT | screw | - | - | - | FRED | - |
| VBE55-06NO7 | single-phase | 68 | 215 | 600 | ECO-PAC 1 | THT | screw | - | - | - | FRED | - |
| VBE55-12NO7 | single-phase | 59 | 170 | 1.2k | ECO-PAC 1 | THT | screw | - | - | - | FRED | - |
| VBE60-06A | single-phase | 60 | 250 | 600 | SOT227B | screw | screw | M4 screws | - | - | HiPerFRED | - |
| VBE60-12A | single-phase | 60 | 200 | 1.2k | SOT227B | screw | screw | M4 screws | - | - | HiPerFRED | - |
| VBO105-08NO7 | single-phase | 100 | 1.5k | 800 | PWS-C | screw | screw | M5 screws | - | - | - | - |
| VBO105-16NO7 | single-phase | 100 | 1.5k | 1.6k | PWS-C | screw | screw | M5 screws | - | - | - | - |
| VBO125-08NO7 | single-phase | 125 | 1.8k | 800 | PWS-C | screw | screw | M5 screws | - | - | - | - |
| VBO130-08NO7 | single-phase | 130 | 1.8k | 800 | PWS-E | screw | screw | M6 screws | - | - | - | - |
| VBO130-12NO7 | single-phase | 130 | 1.8k | 1.2k | PWS-E | screw | screw | M6 screws | - | - | - | - |
| VBO130-16NO7 | single-phase | 130 | 1.8k | 1.6k | PWS-E | screw | screw | M6 screws | - | - | - | - |
| VBO130-18NO7 | single-phase | 130 | 1.8k | 1.8k | PWS-E | screw | screw | M6 screws | - | - | - | - |
| VBO160-08NO7 | single-phase | 160 | 2.8k | 800 | PWS-E | screw | screw | M6 screws | - | - | - | - |
| VBO160-12NO7 | single-phase | 160 | 2.8k | 1.2k | PWS-E | screw | screw | M6 screws | - | - | - | - |
| VBO160-16NO7 | single-phase | 160 | 2.8k | 1.6k | PWS-E | screw | screw | M6 screws | - | - | - | - |
| VBO160-18NO7 | single-phase | 160 | 2.8k | 1.8k | PWS-E | screw | screw | M6 screws | - | - | - | - |
| VBO21-08NO7 | single-phase | 20 | 120 | 800 | ECO-PAC 1 | THT | screw | wire Ø 0.75mm | - | - | - | - |
| VBO21-12NO7 | single-phase | 20 | 120 | 1.2k | ECO-PAC 1 | THT | screw | wire Ø 0.75mm | - | - | - | - |
| VBO40-08NO6 | single-phase | 40 | 320 | 800 | SOT227B | screw | screw | M4 screws | - | - | - | - |
| VBO40-12NO6 | single-phase | 40 | 320 | 1.2k | SOT227B | screw | screw | M4 screws | - | - | - | - |
| VBO40-16NO6 | single-phase | 40 | 320 | 1.6k | SOT227B | screw | screw | M4 screws | - | - | - | - |
| VBO52-08NO7 | single-phase | 60 | 550 | 800 | PWS-D | screw | screw | M5 screws | - | - | - | - |
| VBO52-12NO7 | single-phase | 60 | 550 | 1.2k | PWS-D | screw | screw | M5 screws | - | - | - | - |
| VBO52-16NO7 | single-phase | 60 | 550 | 1.6k | PWS-D | screw | screw | M5 screws | - | - | - | - |
| VBO52-18NO7 | single-phase | 60 | 550 | 1.8k | PWS-D | screw | screw | M5 screws | - | - | - | - |
| VBO54-08NO7 | single-phase | 55 | 300 | 800 | ECO-PAC 1 | THT | screw | wire Ø 1.5mm | - | - | - | - |
| VBO54-12NO7 | single-phase | 55 | 300 | 1.2k | ECO-PAC 1 | THT | screw | wire Ø 1.5mm | - | - | - | - |
| VBO54-16NO7 | single-phase | 55 | 300 | 1.6k | ECO-PAC 1 | THT | screw | wire Ø 1.5mm | - | - | - | - |
| VBO68-08NO7 | single-phase | 70 | 550 | 800 | ECO-PAC 1 | THT | screw | wire Ø 0.75mm | - | - | - | - |
| VBO68-12NO7 | single-phase | 70 | 550 | 1.2k | ECO-PAC 1 | THT | screw | wire Ø 0.75mm | - | - | - | - |
| VBO68-16NO7 | single-phase | 70 | 550 | 1.6k | ECO-PAC 1 | THT | screw | wire Ø 0.75mm | - | - | - | - |
| VBO72-08NO7 | single-phase | 70 | 750 | 800 | PWS-D | screw | screw | M5 screws | - | - | - | - |
| VBO72-12NO7 | single-phase | 70 | 750 | 1.2k | PWS-D | screw | screw | M5 screws | - | - | - | - |
| VBO72-16NO7 | single-phase | 70 | 750 | 1.6k | PWS-D | screw | screw | M5 screws | - | - | - | - |
| VBO72-18NO7 | single-phase | 70 | 750 | 1.8k | PWS-D | screw | screw | M5 screws | - | - | - | - |
| VBO78-08NO7 | single-phase | 80 | 750 | 800 | ECO-PAC 2 | THT | screw | wire Ø 1.5mm | - | - | - | - |
| VBO78-12NO7 | single-phase | 80 | 750 | 1.2k | ECO-PAC 2 | THT | screw | wire Ø 1.5mm | - | - | - | - |
| VBO78-16NO7 | single-phase | 80 | 750 | 1.6k | ECO-PAC 2 | THT | screw | wire Ø 1.5mm | - | - | - | - |
| VBO88-08NO7 | single-phase | 90 | 1k | 800 | ECO-PAC 2 | THT | screw | wire Ø 1.5mm | - | - | - | - |
| VBO88-12NO7 | single-phase | 90 | 1k | 1.2k | ECO-PAC 2 | THT | screw | wire Ø 1.5mm | - | - | - | - |
| VBO88-16NO7 | single-phase | 90 | 1k | 1.6k | ECO-PAC 2 | THT | screw | wire Ø 1.5mm | - | - | - | - |
| VGB0124AY7A | braking rectifier assemblies | 1 | 60 | 1.4k | VG-A | screw | screw | - | - | - | - | - |
| VGF0136AB | braking rectifier assemblies | 1.2 | 80 | 2.8k | VG-B | screw | screw | - | - | - | - | - |
| VGO36-16IO7 | half-controlled | 36 | 280 | 1.6k | ECO-PAC 1 | THT | screw | wire Ø 0.75mm | 65 | - | - | - |
| VHF25-08IO7 | half-controlled | 32 | 180 | 800 | ECO-PAC 1 | THT | screw | wire Ø 0.75mm | 25/50 | freewheelling diode | - | - |
| VHF25-12IO7 | half-controlled | 32 | 180 | 1.2k | ECO-PAC 1 | THT | screw | wire Ø 0.75mm | 25/50 | freewheelling diode | - | - |
| VHFD16-12IO1 | half-controlled | 21 | 130 | 1.2k | V1-A-Pack | FASTON connectors | screw | connectors | 50/80 | freewheelling diode; field diodes | - | 2x0.5 |
| VHFD16-16IO1 | half-controlled | 21 | 130 | 1.6k | V1-A-Pack | FASTON connectors | screw | connectors | 65 | freewheelling diode; field diodes | - | 2x0.5 |
| VHFD29-16IO1 | half-controlled | 32 | 440 | 1.6k | V1-A-Pack | FASTON connectors | screw | connectors | 65 | freewheelling diode; field diodes | - | 2x0.5 |
| VHFD37-08IO1 | half-controlled | 40 | 280 | 800 | V1-A-Pack | FASTON connectors | screw | connectors | 50/80 | freewheelling diode; field diodes | - | 2x0.5 |
| VHFD37-12IO1 | half-controlled | 40 | 500 | 1.2k | V1-A-Pack | FASTON connectors | screw | connectors | 65 | freewheelling diode; field diodes | - | 2x0.5 |
| VHFD37-16IO1 | half-controlled | 40 | 280 | 1.6k | V1-A-Pack | FASTON connectors | screw | connectors | 50/80 | freewheelling diode; field diodes | - | 2x0.5 |
