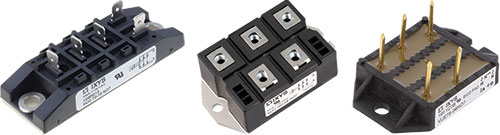

IXYS three-phase bridge rectifiers (modules)
| Mech. mounting | screw |
| Manufacturer | IXYS |
| Symbol | Version | Bridge rectifier | Urmax | If | Ifsm | Ufmax | Igt | Case | Electr. mounting | Leads | Features | Technology | Structure | Leads dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V] | [A] | [A] | [V] | [mA] | [mm] | |||||||||
| VTO39-08HO7 | module | full-controlled | 800 | 16 | 180 | 1.6 | 25/50 | ECO-PAC 1 | THT | wire Ø 0.75mm | - | - | - | - |
| VTO39-12HO7 | module | full-controlled | 1.2k | 16 | 180 | 1.6 | 25/50 | ECO-PAC 1 | THT | wire Ø 0.75mm | - | - | - | - |
| DMA150YA1600NA | module | three-phase half bridge | 1.6k | 150 | 800 | 1.16 | - | SOT227B | screw | - | - | - | common anode | - |
| DMA150YC1600NA | module | three-phase half bridge | 1.6k | 150 | 700 | 1.16 | - | SOT227B | screw | - | - | - | common cathode | - |
| DMA200YA1600NA | module | three-phase half bridge | 1.6k | 200 | 1k | 0.86 | - | SOT227B | screw | - | - | - | common anode | - |
| DMA200YC1600NA | module | three-phase half bridge | 1.6k | 200 | 1k | 0.86 | - | SOT227B | screw | - | - | - | common cathode | - |
| DMA240YA1600NA | module | three-phase half bridge | 1.6k | 240 | 1.3k | 0.86 | - | SOT227B | screw | - | - | - | common anode | - |
| DMA240YC1600NA | module | three-phase half bridge | 1.6k | 240 | 1.3k | 0.86 | - | SOT227B | screw | - | - | - | common cathode | - |
| DNA90YA2200NA | module | three-phase half bridge | 2.2k | 90 | 370 | 0.86 | - | SOT227B | screw | - | - | - | common anode | - |
| DNA90YC2200NA | module | three-phase half bridge | 2.2k | 90 | 370 | 0.86 | - | SOT227B | screw | - | - | - | common cathode | - |
| MCMA120UJ1800ED | module | half-controlled | 1.8k | 120 | 500 | 1.36 | 70/150 | E2-Pack | Press-in PCB | - | freewheelling diode | - | - | - |
| MCMA450UH1600TEH | module | half-controlled | 1.6k | 450 | 2.4k | - | - | E3-Pack | Press-in PCB | - | - | - | - | - |
| VVZ110-12IO7 | module | half-controlled | 1.2k | 110 | 1.35k | 1.75 | 100/200 | PWS-E | FASTON connectors, screw | M6 screws | - | - | - | - |
| VVZ175-12IO7 | module | half-controlled | 1.2k | 167 | 1.35k | 1.57 | 100/200 | PWS-E | FASTON connectors, screw | M6 screws | - | - | - | - |
| VVZ175-16IO7 | module | half-controlled | 1.6k | 167 | 1.35k | 1.57 | 100/200 | PWS-E | FASTON connectors, screw | M6 screws | - | - | - | - |
| VVZ39-08HO7 | module | half-controlled | 800 | 39 | 180 | 1.6 | 25/50 | ECO-PAC 1 | THT | wire Ø 0.75mm | - | - | - | - |
| VVZ39-12HO7 | module | half-controlled | 1.2k | 39 | 180 | 1.6 | 25/50 | ECO-PAC 1 | THT | wire Ø 0.75mm | - | - | - | - |
| VVZ40-12IO1 | module | half-controlled | 1.2k | 45 | 320 | 1.52 | 65/80 | V1-B-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VVZ40-16IO1 | module | half-controlled | 1.6k | 45 | 320 | 1.52 | 65/80 | V1-B-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| MDMA120U1600VA | module | three-phase | 1.6k | 120 | 850 | - | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| MDMA660U1600PTEH | module | three-phase | 1.6k | 660 | 5k | - | - | E3-Pack | Press-Fit | - | - | - | - | - |
| MDMA900U1600PTEH | module | three-phase | 1.6k | 900 | 8k | - | - | E3-Pack | Press-Fit | - | - | - | - | - |
| MDNA240U2200ED | module | three-phase | 2.2k | 240 | 1.5k | - | - | E2-Pack | Press-in PCB | - | - | - | - | - |
| MDNA660U2200PTEH | module | three-phase | 2.2k | 660 | 5k | 1.28 | - | E3-Pack | Press-Fit | - | - | - | - | - |
| VUE130-06NO7 | module | three-phase | 600 | 130 | 600 | 2.04 | - | ECO-PAC 2 | THT | wire Ø 1.5mm | FRED | - | - | |
| VUE130-12NO7 | module | three-phase | 1.2k | 130 | 500 | 2.07 | - | ECO-PAC 2 | THT | wire Ø 1.5mm | - | FRED | - | - |
| VUE22-06NO7 | module | three-phase | 600 | 34 | 50 | 2.09 | - | ECO-PAC 1 | THT | - | - | FRED | - | - |
| VUE22-12NO7 | module | three-phase | 1.2k | 24 | 40 | 2.92 | - | ECO-PAC 1 | THT | - | - | FRED | - | - |
| VUE30-20NO1 | module | three-phase | 2k | 30 | 75 | 5.41 | - | V1-A-Pack | FASTON connectors | connectors | - | FRED | - | 2x0.5 |
| VUE35-06NO7 | module | three-phase | 600 | 56 | 110 | 2.01 | - | ECO-PAC 1 | THT | - | - | FRED | - | - |
| VUE35-12NO7 | module | three-phase | 1.2k | 40 | 90 | 2.73 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | FRED | - | - |
| VUE50-12NO1 | module | three-phase | 1.2k | 50 | 200 | 2.55 | - | V1-A-Pack | FASTON connectors | connectors | - | FRED | - | 2x0.5 |
| VUE75-06NO7 | module | three-phase | 600 | 86 | 215 | 1.57 | - | ECO-PAC 1 | THT | - | - | FRED | - | - |
| VUE75-12NO7 | module | three-phase | 1.2k | 74 | 200 | 2.71 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | FRED | - | - |
| VUO105-14NO7 | module | three-phase | 1.4k | 120 | 1.5k | 1.09 | - | PWS-C | screw | M5 screws | - | - | - | - |
| VUO105-18NO7 | module | three-phase | 1.8k | 120 | 1.5k | 1.09 | - | PWS-C | screw | M5 screws | - | - | - | - |
| VUO110-08NO7 | module | three-phase | 800 | 125 | 1.2k | 1.13 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO110-12NO7 | module | three-phase | 1.2k | 125 | 1.2k | 1.13 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO110-14NO7 | module | three-phase | 1.4k | 125 | 1.2k | 1.13 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO110-16NO7 | module | three-phase | 1.6k | 125 | 1.2k | 1.13 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO110-18NO7 | module | three-phase | 1.8k | 125 | 1.2k | 1.13 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO120-12NO2T | module | three-phase | 1.2k | 180 | 1.1k | 1.16 | - | V2-Pack | Press-in PCB | - | - | - | - | - |
| VUO120-16NO2T | module | three-phase | 1.6k | 180 | 1.1k | 1.16 | - | V2-Pack | Press-in PCB | - | - | - | - | - |
| VUO121-16NO1 | module | three-phase | 1.6k | 120 | 700 | 1.64 | - | E2-Pack | Press-in PCB | - | - | - | - | - |
| VUO122-08NO7 | module | three-phase | 800 | 125 | 1k | 1.13 | - | ECO-PAC 2 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO122-12NO7 | module | three-phase | 1.2k | 125 | 1k | 1.13 | - | ECO-PAC 2 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO122-14NO7 | module | three-phase | 1.4k | 125 | 1k | 1.13 | - | ECO-PAC 2 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO122-16NO7 | module | three-phase | 1.6k | 125 | 1k | 1.13 | - | ECO-PAC 2 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO125-12NO7 | module | three-phase | 1.2k | 150 | 1.8k | 1.07 | - | PWS-C | screw | M5 screws | - | - | - | - |
| VUO125-14NO7 | module | three-phase | 1.4k | 150 | 1.8k | 1.07 | - | PWS-C | screw | M5 screws | - | - | - | - |
| VUO125-18NO7 | module | three-phase | 1.8k | 150 | 1.8k | 1.07 | - | PWS-C | screw | M5 screws | - | - | - | - |
| VUO160-08NO7 | module | three-phase | 800 | 175 | 1.8k | 1.1 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO160-12NO7 | module | three-phase | 1.2k | 175 | 1.8k | 1.39 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO160-14NO7 | module | three-phase | 1.4k | 175 | 1.8k | 1.1 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO160-16NO7 | module | three-phase | 1.6k | 175 | 1.8k | 1.39 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO160-18NO7 | module | three-phase | 1.8k | 175 | 1.8k | 1.1 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO162-16NO7 | module - slim | three-phase | 1.6k | 175 | 1.8k | 1.1 | - | PWS-E flat | screw | M6 screws | - | - | - | - |
| VUO190-08NO7 | module | three-phase | 800 | 240 | 2.8k | 1.07 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO190-12NO7 | module | three-phase | 1.2k | 240 | 2.8k | 1.07 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO190-14NO7 | module | three-phase | 1.4k | 240 | 2.8k | 1.07 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO190-16NO7 | module | three-phase | 1.6k | 240 | 2.8k | 1.33 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO190-18NO7 | module | three-phase | 1.8k | 240 | 2.8k | 1.36 | - | PWS-E | screw | M6 screws | - | - | - | - |
| VUO192-16NO7 | module - slim | three-phase | 1.6k | 240 | 2.8k | 1.36 | - | PWS-E flat | screw | M6 screws | - | - | - | - |
| VUO22-12NO1 | module | three-phase | 1.2k | 22 | 100 | 1.12 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO22-14NO1 | module | three-phase | 1.4k | 22 | 100 | 1.12 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO22-18NO1 | module | three-phase | 1.8k | 22 | 100 | 1.12 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO28-08NO7 | module | three-phase | 800 | 30 | 120 | 1.2 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO28-12NO7 | module | three-phase | 1.2k | 30 | 120 | 1.2 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO30-18NO3 | module | three-phase | 1.8k | 45 | 300 | 1.1 | - | FO-F-B | FASTON connectors | connectors | - | - | - | 6.3x0.8 |
| VUO34-08NO1 | module | three-phase | 800 | 45 | 300 | 1.13 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO34-12NO1 | module | three-phase | 1.2k | 45 | 300 | 1.13 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO34-16NO1 | module | three-phase | 1.6k | 45 | 300 | 1.13 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO34-18NO1 | module | three-phase | 1.8k | 45 | 300 | 1.13 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO52-08NO1 | module | three-phase | 800 | 60 | 350 | 1.13 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO52-12NO1 | module | three-phase | 1.2k | 60 | 350 | 1.13 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO52-14NO1 | module | three-phase | 1.4k | 60 | 350 | 1.13 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO52-16NO1 | module | three-phase | 1.6k | 60 | 350 | 0.83 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO52-18NO1 | module | three-phase | 1.8k | 60 | 350 | 1.13 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO52-20NO1 | module | three-phase | 2k | 60 | 350 | 1.5 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO52-22NO1 | module | three-phase | 2.2k | 60 | 350 | 1.13 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO55-14NO7 | module | three-phase | 1.4k | 60 | 750 | 1.03 | - | PWS-B | screw | M5 screws | - | - | - | - |
| VUO60-12NO3 | module | three-phase | 1.2k | 75 | 700 | 1.06 | - | FO-F-B | FASTON connectors | connectors | - | - | - | 6.3x0.8 |
| VUO60-14NO3 | module | three-phase | 1.4k | 75 | 700 | 1.06 | - | FO-F-B | FASTON connectors | connectors | - | - | - | 6.3x0.8 |
| VUO60-16NO3 | module | three-phase | 1.6k | 75 | 700 | 1.06 | - | FO-F-B | FASTON connectors | connectors | - | - | - | 6.3x0.8 |
| VUO62-08NO7 | module | three-phase | 800 | 60 | 550 | 1.07 | - | PWS-D | screw | M5 screws | - | - | - | - |
| VUO62-12NO7 | module | three-phase | 1.2k | 60 | 550 | 1.07 | - | PWS-D | screw | M5 screws | - | - | - | - |
| VUO62-14NO7 | module | three-phase | 1.4k | 60 | 550 | 1.07 | - | PWS-D | screw | M5 screws | - | - | - | - |
| VUO62-16NO7 | module | three-phase | 1.6k | 60 | 550 | 1.07 | - | PWS-D | screw | M5 screws | - | - | - | - |
| VUO62-18NO7 | module | three-phase | 1.8k | 60 | 550 | 1.07 | - | PWS-D | screw | M5 screws | - | - | - | - |
| VUO64-16NO7 | module - slim | three-phase | 1.6k | 60 | 550 | 1.07 | - | PWS-D flat | screw | M5 screws | - | - | - | - |
| VUO68-08NO7 | module | three-phase | 800 | 70 | 300 | 1.15 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO68-12NO7 | module | three-phase | 1.2k | 70 | 300 | 1.15 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO68-16NO7 | module | three-phase | 1.6k | 68 | 300 | 1.5 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO80-08NO1 | module | three-phase | 800 | 80 | 600 | 1.14 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO80-12NO1 | module | three-phase | 1.2k | 80 | 600 | 1.14 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO80-16NO1 | module | three-phase | 1.6k | 80 | 600 | 1.14 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO80-18NO1 | module | three-phase | 1.8k | 80 | 600 | 1.14 | - | V1-A-Pack | FASTON connectors | connectors | - | - | - | 2x0.5 |
| VUO82-08NO7 | module | three-phase | 800 | 90 | 750 | 1.08 | - | PWS-D | screw | M5 screws | - | - | - | - |
| VUO82-12NO7 | module | three-phase | 1.2k | 90 | 750 | 1.08 | - | PWS-D | screw | M5 screws | - | - | - | - |
| VUO82-14NO7 | module | three-phase | 1.4k | 90 | 750 | 1.08 | - | PWS-D | screw | M5 screws | - | - | - | - |
| VUO82-16NO7 | module | three-phase | 1.6k | 90 | 750 | 0.78 | - | PWS-D | screw | M5 screws | - | - | - | - |
| VUO82-18NO7 | module | three-phase | 1.8k | 90 | 750 | 1.08 | - | PWS-D | screw | M5 screws | - | - | - | - |
| VUO84-16NO7 | module - slim | three-phase | 1.6k | 90 | 750 | 1.08 | - | PWS-D flat | screw | M5 screws | - | - | - | - |
| VUO86-08NO7 | module | three-phase | 800 | 90 | 550 | 1.14 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO86-12NO7 | module | three-phase | 1.2k | 90 | 550 | 1.14 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO86-14NO7 | module | three-phase | 1.4k | 90 | 550 | 1.14 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO86-16NO7 | module | three-phase | 1.6k | 86 | 550 | 1.51 | - | ECO-PAC 1 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO98-08NO7 | module | three-phase | 800 | 105 | 750 | 1.14 | - | ECO-PAC 2 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO98-12NO7 | module | three-phase | 1.2k | 105 | 750 | 1.14 | - | ECO-PAC 2 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO98-14NO7 | module | three-phase | 1.4k | 105 | 750 | 1.14 | - | ECO-PAC 2 | THT | wire Ø 1.5mm | - | - | - | - |
| VUO98-16NO7 | module | three-phase | 1.6k | 105 | 750 | 1.14 | - | ECO-PAC 2 | THT | wire Ø 1.5mm | - | - | - | - |
