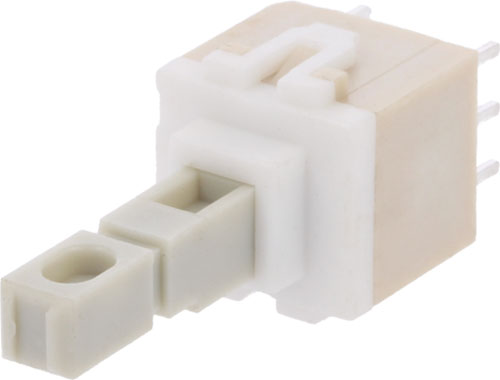

Key switches, PVA series
| Manufacturer | C&K |
| Type of switch | keypad |
| Min. insulation resistance | 10GΩ |
| Operating temperature | -40...85°C |
| DC contacts rating @R* | 0.1A / 32V DC |
| Max. contact resistance: | 100mΩ |
| Illumination | none |
| Mounting | THT |
| Pitch | 6mm |
| Button shape | square |
| Actuator colour | white |
| Positions | 2 |
| Body dimensions | 9.2x9.8x11mm |
| Manufacturer series | PVA |
* at resistive load
| Symbol | Leads | Operating Force | Switch. method* | Contacts layout | Button height** | Related items |
|---|---|---|---|---|---|---|
| [N] | [mm] | |||||
| PVA1OAH41.2NV2 | for soldering | 1.2 | ON-(ON) | DPST | 15 | - |
| PVA1OAH11.2NV2 | for soldering | 1.2 | OFF-(ON) | DPST | 17.5 | PVBK, PVGY |
| PVA2EEH11.7NV2 | for soldering | 1.7 | ON-ON | DPDT | 17.5 | PVBK, PVGY |
| PVA2EEH21.7NV2 | for soldering | 1.7 | ON-ON | DPDT | 23 | - |
| PVA2OAH11.7NV2 | for soldering | 1.7 | ON-(ON) | DPDT | 17.5 | PVBK, PVGY |
| PVA1EEH11.2NV2 | for soldering | 1.2 | ON-ON | DPST | 17.5 | - |
| PVA1EEH13.5NV2 | for soldering | 3.5 | ON-ON | DPST | 17.5 | - |
| PVA1OAH13.5NV2 | for soldering | 3.5 | ON-(ON) | DPST | 17.5 | - |
| PVA2OAH11.7NSNAV2 | for PCB | 1.7 | ON-(ON) | DPDT | 17.5 | - |
* the position in bracket indicates momentary position.
** measured from PCB
