Laboratory connector; ELECTRO-PJP

ManufacturerELECTRO-PJP
Connectorsocket
Symbol Contact plating Manufacturer's part number Current rating Colour Mounting Type Dimensions Rated voltage Rated voltage Rated voltage Conform to the norm Contact material Overall len. Type of lab connector
[A] [kV] [V AC] [V DC] [mm]
PJP224-M5-C-BL nickel plated 224-M5-C-BL 10 blue soldered, on panel, screw - - - 33 70 - brass - 2mm banana
PJP224-M5-C-J nickel plated 224-M5-C-J 10 yellow soldered, on panel, screw - - - 33 70 - brass - 2mm banana
PJP224-M5-C-N nickel plated 224-M5-C-N 10 black soldered, on panel, screw - - - 33 70 - brass - 2mm banana
PJP224-M5-C-R nickel plated 224-M5-C-R 10 red soldered, on panel, screw - - - 33 70 - brass - 2mm banana
PJP224-M5-C-V nickel plated 224-M5-C-V 10 green soldered, on panel, screw - - - 33 70 - brass - 2mm banana

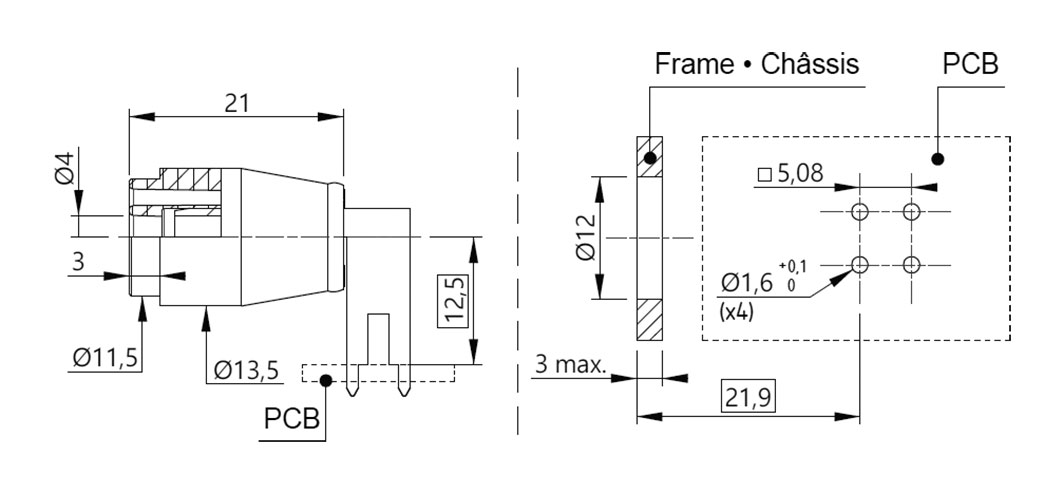

PJP3263/PCB-N nickel plated 3263/PCB-N 25 black soldered, PCB insulated Fig. 1. 1 - - CAT III 1000V - - 4mm banana
PJP3263/PCB-R nickel plated 3263/PCB-R 25 red soldered, PCB insulated Fig. 1. 1 - - CAT III 1000V - - 4mm banana
PJP3264-I-N nickel plated 3264-I-N 25 black soldered, on panel, screw insulated - 1 - - - - - 4mm banana
PJP3264-I-R nickel plated 3264-I-R 25 red soldered, on panel, screw insulated - 1 - - - - - 4mm banana
PJP3265-C-BC nickel plated 3265-C-BC 36 white on panel, screw, screw terminal insulated Fig. 2. 1 - - CAT III 1000V - - 4mm banana
PJP3265-C-BL nickel plated 3265-C-BL 36 blue on panel, screw, screw terminal insulated Fig. 2. 1 - - CAT III 1000V - - 4mm banana
PJP3265-C-J nickel plated 3265-C-J 36 yellow on panel, screw, screw terminal insulated Fig. 2. 1 - - CAT III 1000V - - 4mm banana
PJP3265-C-N nickel plated 3265-C-N 36 black on panel, screw, screw terminal insulated Fig. 2. 1 - - CAT III 1000V - - 4mm banana
PJP3265-C-R nickel plated 3265-C-R 36 red on panel, screw, screw terminal insulated Fig. 2. 1 - - CAT III 1000V - - 4mm banana
PJP3265-C-V nickel plated 3265-C-V 36 green on panel, screw, screw terminal insulated Fig. 2. 1 - - CAT III 1000V - - 4mm banana
PJP3266-C-BC nickel plated 3266-C-BC 36 white soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana
PJP3266-C-BL nickel plated 3266-C-BL 36 blue soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana
PJP3266-C-J nickel plated 3266-C-J 36 yellow soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana
PJP3266-C-N nickel plated 3266-C-N 36 black soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana
PJP3266-C-R nickel plated 3266-C-R 36 red soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana
PJP3266-C-V nickel plated 3266-C-V 36 green soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana
PJP3266-I-BL nickel plated 3266-I-BL 36 blue soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana
PJP3266-I-J nickel plated 3266-I-J 36 yellow soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana
PJP3266-I-N nickel plated 3266-I-N 36 black soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana
PJP3266-I-R nickel plated 3266-I-R 36 red soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana
PJP3266-I-V nickel plated 3266-I-V 36 green soldered, on panel, screw insulated Fig. 3. 1 - - CAT III 1000V - 34 4mm banana

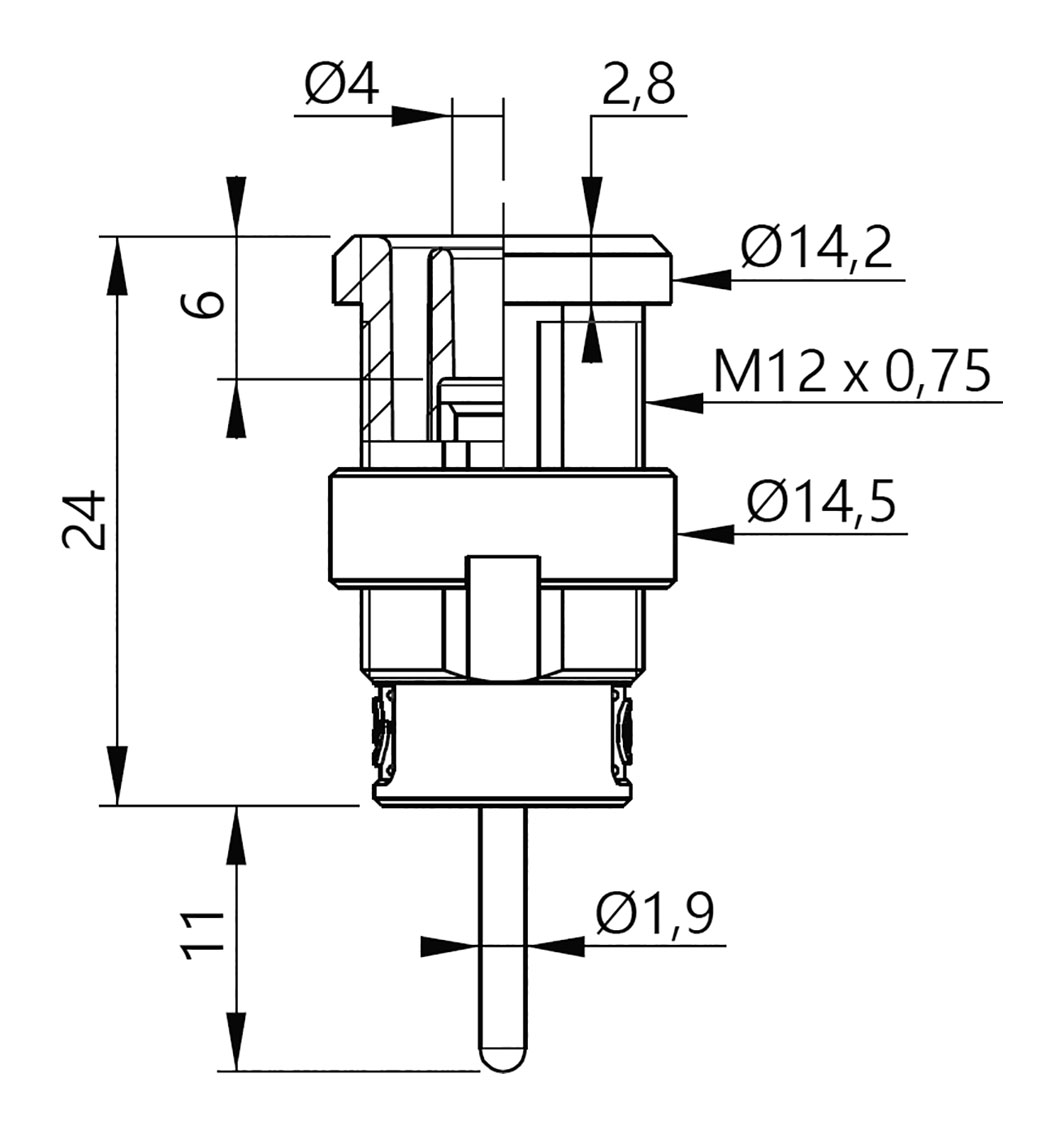

PJP3267-C-BC nickel plated 3267-C-BC 36 white on panel, screw, plug pin 1,9mm insulated Fig. 4. 1 - - CAT III 1000V - - 4mm banana
PJP3267-C-BL nickel plated 3267-C-BL 36 blue on panel, screw, plug pin 1,9mm insulated Fig. 4. 1 - - CAT III 1000V - - 4mm banana
PJP3267-C-J nickel plated 3267-C-J 36 yellow on panel, screw, plug pin 1,9mm insulated Fig. 4. 1 - - CAT III 1000V - - 4mm banana
PJP3267-C-N nickel plated 3267-C-N 36 black on panel, screw, plug pin 1,9mm insulated Fig. 4. 1 - - CAT III 1000V - - 4mm banana
PJP3267-C-R nickel plated 3267-C-R 36 red on panel, screw, plug pin 1,9mm insulated Fig. 4. 1 - - CAT III 1000V - - 4mm banana
PJP3267-C-V nickel plated 3267-C-V 36 green on panel, screw, plug pin 1,9mm insulated Fig. 4. 1 - - CAT III 1000V - - 4mm banana
PJP3270-I-BL nickel plated 3270-I-BL 25 blue soldered, on panel, screw insulated Fig. 5. 1 - - CAT III 1000V - - 4mm banana
PJP3270-I-J nickel plated 3270-I-J 25 yellow soldered, on panel, screw insulated Fig. 5. 1 - - CAT III 1000V - - 4mm banana
PJP3270-I-N nickel plated 3270-I-N 25 black soldered, on panel, screw insulated Fig. 5. 1 - - CAT III 1000V - - 4mm banana
PJP3270-I-R nickel plated 3270-I-R 25 red soldered, on panel, screw insulated Fig. 5. 1 - - CAT III 1000V - - 4mm banana
PJP3270-I-V nickel plated 3270-I-V 25 green soldered, on panel, screw insulated Fig. 5. 1 - - CAT III 1000V - - 4mm banana
PJP3274-C-BL nickel plated 3274-C-BL 36 blue soldered, on panel, screw insulated Fig. 6. 1 - - CAT III 1000V - 32 4mm banana
PJP3274-C-J nickel plated 3274-C-J 36 yellow soldered, on panel, screw insulated Fig. 6. 1 - - CAT III 1000V - 32 4mm banana
PJP3274-C-N nickel plated 3274-C-N 36 black soldered, on panel, screw insulated Fig. 6. 1 - - CAT III 1000V - 32 4mm banana
PJP3274-C-R nickel plated 3274-C-R 36 red soldered, on panel, screw insulated Fig. 6. 1 - - CAT III 1000V - 32 4mm banana
PJP3274-I-N nickel plated 3274-I-N 36 black soldered, on panel, screw insulated Fig. 6. 1 - - CAT III 1000V - 32 4mm banana
PJP3274-I-R nickel plated 3274-I-R 36 red soldered, on panel, screw insulated Fig. 6. 1 - - CAT III 1000V - 32 4mm banana
PJP3274-I-V nickel plated 3274-I-V 36 green soldered, on panel, screw insulated Fig. 6. 1 - - CAT III 1000V - 32 4mm banana
PJP3275-C-BC nickel plated 3275-C-BC 25 white soldered, on panel, screw insulated Fig. 7. 1 - - CAT III 1000V - - 4mm banana
PJP3275-C-BL nickel plated 3275-C-BL 25 blue soldered, on panel, screw insulated Fig. 7. 1 - - CAT III 1000V - - 4mm banana
PJP3275-C-J nickel plated 3275-C-J 25 yellow soldered, on panel, screw insulated Fig. 7. 1 - - CAT III 1000V - - 4mm banana
PJP3275-C-N nickel plated 3275-C-N 25 black soldered, on panel, screw insulated Fig. 7. 1 - - CAT III 1000V - - 4mm banana
PJP3275-C-R nickel plated 3275-C-R 25 red soldered, on panel, screw insulated Fig. 7. 1 - - CAT III 1000V - - 4mm banana
PJP3275-C-V nickel plated 3275-C-V 25 green soldered, on panel, screw insulated Fig. 7. 1 - - CAT III 1000V - - 4mm banana
PJP3285-BL nickel plated 3285-BL 36 blue on panel, push-in, screw terminal insulated Fig. 8. 1 - - CAT III 1000V - - 4mm banana
PJP3285-J nickel plated 3285-J 36 yellow on panel, push-in, screw terminal insulated Fig. 8. 1 - - CAT III 1000V - - 4mm banana
PJP3285-N nickel plated 3285-N 36 black on panel, push-in, screw terminal insulated Fig. 8. 1 - - CAT III 1000V - - 4mm banana
PJP3285-R nickel plated 3285-R 36 red on panel, push-in, screw terminal insulated Fig. 8. 1 - - CAT III 1000V - - 4mm banana
PJP3285-V nickel plated 3285-V 36 green on panel, push-in, screw terminal insulated Fig. 8. 1 - - CAT III 1000V - - 4mm banana
PJP3286-BL nickel plated 3286-BL 36 blue soldered, on panel, push-in insulated Fig. 9. 1 - - CAT III 1000V - - 4mm banana
PJP3286-BN nickel plated 3286-BN 36 brown soldered, on panel, push-in insulated Fig. 9. 1 - - CAT III 1000V - - 4mm banana
PJP3286-J nickel plated 3286-J 36 yellow soldered, on panel, push-in insulated Fig. 10. 1 - - CAT III 1000V - - 4mm banana
PJP3286-N nickel plated 3286-N 36 black soldered, on panel, push-in insulated Fig. 9. 1 - - CAT III 1000V - - 4mm banana
PJP3286-R nickel plated 3286-R 36 red soldered, on panel, push-in insulated Fig. 9. 1 - - CAT III 1000V - - 4mm banana
PJP3286-V nickel plated 3286-V 36 green soldered, on panel, push-in insulated Fig. 9. 1 - - CAT III 1000V - - 4mm banana
PJP5266-HT-C-N - 5266-HT-C-N 10 black on panel, screw - - 5 - - - - - 4mm banana
PJP5266-HT-C-R - 5266-HT-C-R 10 red on panel, screw - - 5 - - - - - 4mm banana
