Laboratory generator: arbitrary, function; UNI-T

Laboratory generator: arbitrary, function; UNI-T, UTG1022X, UTG1022X-PA, UTG1042X, UTG2025A |EN|
Symbol: (UTG10xxx)
ManufacturerUNI-T
Type of laboratory generatorarbitrary, function
DisplayLCD TFT 4,3"
Resolution480x272
Number of channels2
Supply voltage100...240V AC
ModulationAM, ASK, FM, FSK, PM, PSK, PWM
Vertical resolution16bit
InterfaceUSB
Sampling200Msps
Output parametersimpedance: 50Ω
Waveformsarbitrary, DC, impulse, square, ramp, sinus, noise
Dimensions215x103x316mm
Symbol: (UTG2025A)
ManufacturerUNI-T
Type of laboratory generatorarbitrary, function
DisplayLCD TFT 4,3"
Resolution480x272
Number of channels2
Supply voltage100...240V AC
ModulationAM, ASK, FM, FSK, PM, PSK, PWM
Vertical resolution14bit
InterfaceUSB
Sampling125Msps
Waveformsarbitrary, DC, impulse, square, ramp, sinus, noise
Dimensions265x110x320mm
Symbol: (UTG2062B, UTG2082B)
ManufacturerUNI-T
Type of laboratory generatorarbitrary, function
DisplayLCD TFT 4,3"
Resolution800x480
Number of channels2
Supply voltage100...240V AC
ModulationAM, ASK, BPSK, FM, FSK, OSK, PM, PSK, PWM, QAM, QPSK, SUM
Vertical resolution16bit
InterfaceUSB
Sampling320Msps
Waveformsarbitrary, DC, impulse, square, ramp, sinus, noise
Dimensions305x230x93mm
Symbol: (UTG4xx2A)
ManufacturerUNI-T
Type of laboratory generatorarbitrary, function
DisplayLCD TFT 8"
Resolution800x480
Number of channels2
Supply voltage100...240V AC
ModulationAM, ASK, BPSK, FM, FSK, OSK, PM, PSK, PWM, QAM, QPSK, SUM
Vertical resolution16bit
InterfaceUSB
Sampling500Msps
Waveformsarbitrary, DC, harmonic, impulse, square, ramp, sinus, noise
Dimensions336x164x108mm

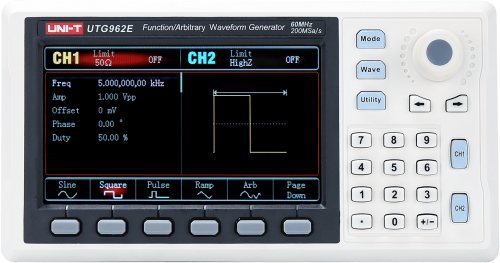

Symbol: (UTG932E, UTG962E)
ManufacturerUNI-T
Type of laboratory generatorarbitrary, function
DisplayLCD TFT 4,3"
Resolution480x272
Number of channels2
Supply voltage100...240V AC
ModulationAM, FM, FSK, PM
Vertical resolution14bit
InterfaceUSB
Sampling200Msps
Output parametersimpedance: 50Ω
Waveformsarbitrary, DC, impulse, square, ramp, sinus, noise
Dimensions172x90x68mm
Symbol: (UTG9354T, UTG9504T)
ManufacturerUNI-T
Type of laboratory generatorarbitrary, function
Displaytouch screen, LCD TFT 10,1"
Resolution1280x800
Number of channels4
Supply voltage100...240V AC
ModulationAM, ASK, BPSK, FM, FSK, OSK, PM, PSK, PWM, QAM, QPSK, SUM
Vertical resolution14bit
InterfaceLAN;
USB
Sampling2,5Gsps
Waveformsarbitrary, DC, harmonic, impulse, square, ramp, sinus, noise
Dimensions370x115x185mm
Symbol: (UTG9604T)
ManufacturerUNI-T
Type of laboratory generatorarbitrary, function
Displaytouch screen, LCD TFT 10,1"
Resolution1280x800
Number of channels4
Supply voltage100...240V AC
ModulationAM, ASK, BPSK, FM, FSK, OSK, PM, PSK, PWM, QAM, QPSK, SUM
Vertical resolution16bit
InterfaceLAN;
USB
Sampling2,5Gsps
Waveformsarbitrary, DC, harmonic, impulse, square, ramp, sinus, noise
Dimensions370x115x185mm
Symbol: (UTG2xx2X)
ManufacturerUNI-T
Type of laboratory generatorarbitrary, function
Displaytouch screen, LCD TFT 4,3"
Resolution480x272
Number of channels2
Supply voltage100...240V AC
Modulation3FSK, 4FSK, AM, ASK, BPSK, FM, FSK, OSK, PM, PSK, PWM, QAM, QPSK, SUM
Vertical resolution16bit
InterfaceLAN;
USB device;
USB Host
Sampling625Msps
Output parametersimpedance: 50Ω
Waveformsarbitrary, DC, harmonic, impulse, square, ramp, sinus, noise
Dimensions215x103x316mm
Symbol UTG1022X UTG1022X-PA UTG1042X UTG2025A UTG2062B UTG2082B UTG4082A UTG4122A UTG4162A UTG932E UTG962E UTG9354T UTG9504T UTG9604T UTG2062X UTG2082X UTG2122X
Maximum waveform frequency [MHz] 20 20 40 25 60 80 80 120 160 30 60 350 500 600 60 80 120
Waveform frequency range
- 1µHz...100MHz (arbitrary waveform)                         x x
- 1µHz...10MHz (arbitrary waveform)                   x x
- 1µHz...10MHz (pulse waveform) x x
- 1µHz...10MHz (rectangular waveform) x x
- 1µHz...120MHz (pulse waveform)                       x
- 1µHz...120MHz (rectangular waveform)                       x
- 1µHz...120MHz (sinus waveform)               x                 x
- 1µHz...15MHz (arbitrary waveform)         x
- 1µHz...15MHz (pulse waveform)                   x
- 1µHz...15MHz (rectangular waveform)                   x
- 1µHz...160MHz (pulse waveform)                         x
- 1µHz...160MHz (square waveform)                         x
- 1µHz...160MHz (sinus waveform)                 x
- 1µHz...1MHz (ramp waveform)     x
- 1µHz...200MHz (pulse waveform)                           x
- 1µHz...200MHz (square waveform)                           x
- 1µHz...20MHz (arbitrary waveform)           x x
- 1µHz...20MHz (pulse waveform)     x   x           x
- 1µHz...20MHz (square waveform)     x
- 1µHz...20MHz (rectangular waveform)                     x
- 1µHz...20MHz (ramp waveform)                       x
- 1µHz...20MHz (sinus waveform) x x
- 1µHz...25MHz (pulse waveform)           x
- 1µHz...25MHz (square waveform)         x x
- 1µHz...25MHz (sinus waveform)       x
- 1µHz...2MHz (ramp waveform)             x
- 1µHz...30MHz (arbitrary waveform)                             x
- 1µHz...30MHz (harmonic waveform)                             x
- 1µHz...30MHz (pulse waveform)             x               x
- 1µHz...30MHz (square waveform)             x               x
- 1µHz...30MHz (ramp waveform)                         x x
- 1µHz...30MHz (sinus waveform)                   x
- 1µHz...350MHz (sinus waveform)                       x
- 1µHz...3MHz (ramp waveform)         x     x             x
- 1µHz...3MHz (triangle waveform)               x
- 1µHz...400kHz (ramp waveform) x x   x           x x
- 1µHz...40MHz (arbitrary waveform)                               x
- 1µHz...40MHz (harmonic waveform)                               x
- 1µHz...40MHz (pulse waveform)               x               x
- 1µHz...40MHz (square waveform)                               x
- 1µHz...40MHz (rectangular waveform)               x
- 1µHz...40MHz (sinus waveform)     x
- 1µHz...4MHz (ramp waveform)           x                   x
- 1µHz...500MHz (sinus waveform)                         x
- 1µHz...50MHz (arbitrary waveform)                 x               x
- 1µHz...50MHz (harmonic waveform)                                 x
- 1µHz...50MHz (pulse waveform)                 x               x
- 1µHz...50MHz (square waveform)                 x               x
- 1µHz...5MHz (arbitrary waveform) x x   x
- 1µHz...5MHz (pulse waveform)       x
- 1µHz...5MHz (rectangular waveform)       x
- 1µHz...5MHz (ramp waveform)                 x               x
- 1µHz...600MHz (sinus waveform)                           x
- 1µHz...60MHz (sinus waveform)         x           x       x
- 1µHz...80MHz (arbitrary waveform)                       x
- 1µHz...80MHz (sinus waveform)           x x                 x
Communictions protocol
- I2C                       x x x
- SPI                       x x x
- UART                       x x x
Features:
  • 200 runs memory (UTG10xxx)
  • 4 Watt power output, <100kHz (UTG1022X-PA)
Equipment:
Symbol Product description
UTG1022X Laboratory generator:arbitrary, function;20MHz;LCD TFT 4,3"
UTG1022X-PA Laboratory generator:arbitrary, function;20MHz;LCD TFT 4,3"
UTG1042X Laboratory generator:arbitrary, function;40MHz;LCD TFT 4,3"
UTG2025A Laboratory generator:arbitrary, function;25MHz;LCD TFT 4,3"
UTG2062B Laboratory generator:arbitrary, function;60MHz;LCD TFT 4,3"
UTG2082B Laboratory generator:arbitrary, function;80MHz;LCD TFT 4,3"
UTG4082A Laboratory generator:arbitrary, function;80MHz;LCD TFT 8"
UTG4122A Laboratory generator:arbitrary, function;120MHz;LCD TFT 8"
UTG4162A Laboratory generator:arbitrary, function;160MHz;LCD TFT 8"
UTG932E Laboratory generator:arbitrary, function;30MHz;LCD TFT 4,3"
UTG962E Laboratory generator:arbitrary, function;60MHz;LCD TFT 4,3"
UTG9354T Laboratory generator:arbitrary, function;350MHz;1280x800
UTG9504T Laboratory generator:arbitrary, function;500MHz;1280x800
UTG9604T Laboratory generator:arbitrary, function;600MHz;1280x800
UTG2062X Laboratory generator:arbitrary, function;60MHz;480x272;Ch:2
UTG2082X Laboratory generator:arbitrary, function;80MHz;480x272;Ch:2
UTG2122X Laboratory generator:arbitrary, function;120MHz;480x272;Ch:2
