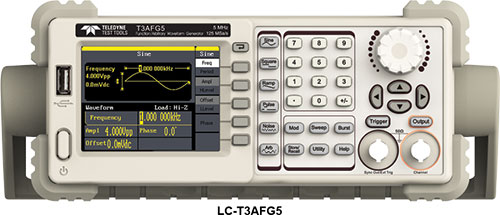

Laboratory generator: arbitrary, function

Manufacturer	TELEDYNE LECROY
Output parameters	impedance: 50Ω
U_sup	100...240V AC
Type of laboratory generator	arbitrary, function

Sweep mode:

period: 1m...500s (LC-T3AFGxx0)
period: 400n...2000s (LC-T3AWGxxx)

Waveforms:

arbitrary
DC (LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)
impulse (LC-T3AFG40, LC-T3AFG120, LC-T3AFG30, LC-T3AFG60, LC-T3AWGxxx)
rectangular
ramp (LC-T3AWGxxx, LC-T3AFG200, LC-T3AFG350, LC-T3AFG30, LC-T3AFG500, LC-T3AFG60)
sinus
noise
triangle (LC-T3AFG40, LC-T3AFG120, LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)

Display:

colour (LC-T3AFG40, LC-T3AFG120, LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)
LCD 4,3" (LC-T3AFG40, LC-T3AFG120, LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)
LCD 7" (LC-T3AWGxxx)
LCD TFT 4,3" (LC-T3AFG30, LC-T3AFG60)

Touchpad:

yes (LC-T3AFG40, LC-T3AFG120, LC-T3AFG200, LC-T3AFG350, LC-T3AFG500, LC-T3AWG3252)

Resolution:

1024x600 (LC-T3AWGxxx)

Number of channels:

Vertical resolution:

14bit (LC-T3AFG30, LC-T3AFG60)
16bit (LC-T3AFG40, LC-T3AFG120, LC-T3AFG200, LC-T3AFG350, LC-T3AFG500, LC-T3AWGxxx)

Sampling:

1,2Gsps (LC-T3AFG40, LC-T3AFG120, LC-T3AWG2152, LC-T3AWG2152-D)
150Msps (LC-T3AFG30, LC-T3AFG60)
1Gsps (LC-T3AWG3252)
2,4Gsps (LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)

Interface:

LAN (LC-T3AFGxx0, LC-T3AWG2152, LC-T3AWG2152-D)
USB (LC-T3AFGxx0, LC-T3AWG2152, LC-T3AWG2152-D)

Modulation:

AM
ASK (LC-T3AFGxx0)
DSB-AM (LC-T3AFGxx0)
FM
FSK
PM
PSK
PWM

Equipment:

LVDS-LVTTL adapter (LC-T3AWG2152-D)
manufacturer's calibration certificate (LC-T3AFGxx0, LC-T3AWG2152, LC-T3AWG2152-D)
BNC cable (LC-T3AFG40, LC-T3AFG120, LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)
USB cable (LC-T3AFGxx0)
mains cable (LC-T3AFGxx0, LC-T3AWG2152, LC-T3AWG2152-D)

Waveform frequency range:

1µHz...10MHz (ramp waveform) (LC-T3AWG3252)
1µHz...12,5MHz (pulse waveform) (LC-T3AFG30, LC-T3AFG60)
1µHz...120MHz (rectangular waveform) (LC-T3AWG3252, LC-T3AFG350, LC-T3AFG500)
1µHz...120MHz (sinus waveform) (LC-T3AFG120)
1µHz...150MHz (pulse waveform) (LC-T3AFG350, LC-T3AFG500)
1µHz...150MHz (sinus waveform) (LC-T3AWG2152, LC-T3AWG2152-D)
1µHz...1MHz (ramp waveform) (LC-T3AFG40, LC-T3AFG120)
1µHz...1MHz (triangle waveform) (LC-T3AFG40, LC-T3AFG120)
1µHz...200MHz (sinus waveform) (LC-T3AFG200)
1µHz...20MHz (arbitrary waveform) (LC-T3AFG40, LC-T3AFG120)
1µHz...250MHz (sinus waveform) (LC-T3AWG3252)
1µHz...25MHz (pulse waveform) (LC-T3AFG40, LC-T3AFG120)
1µHz...25MHz (rectangular waveform) (LC-T3AFG40, LC-T3AFG120)
1µHz...30MHz (rectangular waveform) (LC-T3AFG30)
1µHz...30MHz (sinus waveform) (LC-T3AFG30)
1µHz...350MHz (sinus waveform) (LC-T3AFG350)
1µHz...40MHz (sinus waveform) (LC-T3AFG40)
1µHz...500kHz (ramp waveform) (LC-T3AFG30, LC-T3AFG60)
1µHz...500kHz (triangle waveform) (LC-T3AFG30, LC-T3AFG60)
1µHz...500MHz (sinus waveform) (LC-T3AFG500)
1µHz...50MHz (arbitrary waveform) (LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)
1µHz...5MHz (ramp waveform) (LC-T3AWG2152, LC-T3AWG2152-D, LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)
1µHz...5MHz (triangle waveform) (LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)
1µHz...60MHz (rectangular waveform) (LC-T3AFG60)
1µHz...60MHz (sinus waveform) (LC-T3AFG60)
1µHz...80MHz (arbitrary waveform) (LC-T3AWG2152, LC-T3AWG2152-D)
1µHz...80MHz (pulse waveform) (LC-T3AWG2152, LC-T3AWG2152-D, LC-T3AFG200)
1µHz...80MHz (rectangular waveform) (LC-T3AWG2152, LC-T3AWG2152-D, LC-T3AFG200)

U 400Hz:

100...120V AC (LC-T3AFGxx0)

Dimensions:

260.3x107.2x295.7mm (LC-T3AFGxx0)
445x135x320mm (LC-T3AWG2152, LC-T3AWG2152-D)
362x143x258mm (LC-T3AWG3252)

Maximum waveform frequency:

40MHz (LC-T3AFG40)
120MHz (LC-T3AFG120)
150MHz (LC-T3AWG2152, LC-T3AWG2152-D)
250MHz (LC-T3AWG3252)
200MHz (LC-T3AFG200)
350MHz (LC-T3AFG350)
500MHz (LC-T3AFG500)
30MHz (LC-T3AFG30)
60MHz (LC-T3AFG60)

Related items:

LC-T3AFG-IQ (LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)

Features:

8 digital and 2 analogue channels (LC-T3AWG2152-D)
Direct Digital Synthesized (DDS) technology (LC-T3AWG2152, LC-T3AWG2152-D, LC-T3AFG200)

Additional functions:

frequency meter (LC-T3AFG40, LC-T3AFG120, LC-T3AFG200)

Memory record length:

16kpts/ch (LC-T3AFG30, LC-T3AFG60)
8Mpts/ch (LC-T3AFG40, LC-T3AFG120)
20Mpts/ch (LC-T3AFG200, LC-T3AFG350, LC-T3AFG500)
128Mpts/ch (LC-T3AWGxxx)

Symbol	Product description
LC-T3AFG40	Laboratory generator:arbitrary, function;40MHz;Ch:2;8Mpts/ch
LC-T3AFG120	Laboratory generator:arbitrary, function;120MHz;Ch:2
LC-T3AWG2152	Laboratory generator:arbitrary, function;150MHz;LCD 7";Ch:2
LC-T3AWG2152-D	Laboratory generator:arbitrary, function;150MHz;LCD 7";Ch:2
LC-T3AWG3252	Laboratory generator:arbitrary, function;250MHz;LCD 7";Ch:2
LC-T3AFG200	Laboratory generator:arbitrary, function;200MHz;Ch:2
LC-T3AFG350	Laboratory generator:arbitrary, function;350MHz;Ch:2
LC-T3AFG500	Laboratory generator:arbitrary, function;500MHz;Ch:2
LC-T3AFG30	Laboratory generator:arbitrary, function;30MHz;LCD TFT 4,3"
LC-T3AFG60	Laboratory generator:arbitrary, function;60MHz;LCD TFT 4,3"
