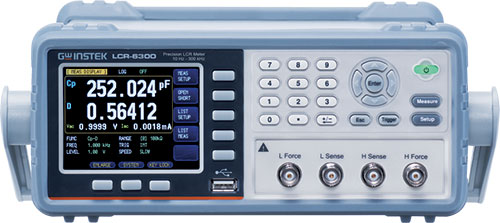

LCR meter; GW INSTEK
| Symbol: (LCR-6xxx) | |
|---|---|
| Manufacturer | GW INSTEK |
| Type of meter | LCR meter |
| Kind of display used | LCD 3,5" |
| Resistance measuring range | 1E-05...99.999MΩ |
| Induct. measur. range | 1E-05µH...9999.99H |
| Capacitance measuring range | 1E-05pF...9999.99mF |
| Dimensions | 265x107x312mm |
| Measurement | inductance, capacitance, resistance |
| Manufacturer series | LCR-6000 |
| Supply voltage | 100...240V AC |
| Symbol: (LCR-8205, LCR-8201, LCR-8210, LCR-8220, LCR-8230) | |
| Manufacturer | GW INSTEK |
| Type of meter | LCR meter |
| Kind of display used | LCD 7" |
| Dimensions | 346x145x335mm |
| Measurement | admittance, impedance, inductance, phase angle θ, capacitance, conductance, reactance, resistance, quality factor, dissipation factor |
| Manufacturer series | LCR-8200 |
| Interface | GPIB; LAN; RS232; USB |
| Supply voltage | 100...240V AC |
| Symbol: (LCR-82xxA) | |
| Manufacturer | GW INSTEK |
| Type of meter | LCR meter |
| Kind of display used | colour, LCD 7" |
| Dimensions | 346x145x335mm |
| Measurement | admittance, impedance, inductance, phase angle θ, capacitance, conductance, reactance, resistance, quality factor, dissipation factor |
| Manufacturer series | LCR-8200A |
| Interface | GPIB; HANDLER; LAN; RS232; USB |
| Supply voltage | 100...240V AC |
| Symbol | Measurement frequency | Display resolution |
|---|---|---|
| [Hz] | ||
| LCR-6002 | 10...2k | - |
| LCR-6020 | 10...20k | - |
| LCR-6100 | 10...100k | - |
| LCR-6200 | 10...200k | - |
| LCR-6300 | 10...300k | - |
| LCR-8205 | 10...5M | - |
| LCR-8201 | 10...1M | - |
| LCR-8210 | 10...10M | - |
| LCR-8220 | 10...20M | - |
| LCR-8230 | 10...30M | - |
| LCR-8205A | 10...5M | 800x480 |
| LCR-8210A | 10...10M | 800x480 |
| LCR-8220A | 10...20M | 800x480 |
| LCR-8230A | 10...30M | 800x480 |
| LCR-8250A | 10...50M | 800x480 |
