LCR meter; MICROTEST

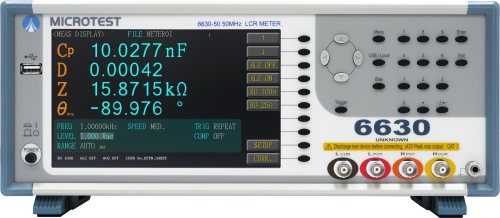

| Symbol: (MCT-6630-xx) | |
|---|---|
| Manufacturer | MICROTEST |
| Type of meter | LCR meter |
| Display | LCD TFT 7" |
| Display parameters | 6 digits |
| Display resolution | 800x480 |
| Measurement time | < 0.003s |
| Measurement accuracy | ±0.05% |
| Supply volt. freq. | 50/60Hz |
| Output impedance | 25Ω, 100Ω |
| Interface | GPIB; HANDLER I/O; LAN; RS232; USB device; USB Host |
| Dimensions | 336x147x340mm |
| Sup. volt. | 100...240V |
| Related items | MCT-AX-PM0004, MCT-F420001, MCT-F420003, MCT-F420005, MCT-F423906A, MCT-FX-0000C7, MCT-FX-0000C9, MCT-FX-000C10, MCT-FX-000C11, MCT-FX-000C12, MCT-FX-000C20, MCT-FX-LR0002, MCT-FX-LR0003 |
| Symbol: (MCT-6621-xx) | |
| Manufacturer | MICROTEST |
| Type of meter | LCR meter |
| Display | LCD TFT 4,3" |
| Display resolution | 800x480 |
| Measurement time | < 0.003s |
| Measurement accuracy | ±0.05% |
| Supply volt. freq. | 47...63Hz |
| Output impedance | 25Ω, 100Ω |
| Interface | HANDLER; LAN; RS232; USB device; USB Host |
| Dimensions | 300x89.1x362.8mm |
| Sup. volt. | 90...264V |
| Related items | MCT-AX-PM0004, MCT-F420001, MCT-F420003, MCT-F420005, MCT-F423906A, MCT-FX-0000C7, MCT-FX-0000C9, MCT-FX-000C10, MCT-FX-000C11, MCT-FX-000C12, MCT-FX-000C20, MCT-FX-LR0002, MCT-FX-LR0003 |
| Symbol | MCT-6630-01 | MCT-6630-03 | MCT-6630-05 | MCT-6630-10 | MCT-6630-20 | MCT-6630-30 | MCT-6630-50 | MCT-6621-1 | MCT-6621-3 | MCT-6621-5 | MCT-6621-10 | MCT-6621-20 | MCT-6621-30 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Meas. freq. [Hz] | |||||||||||||
| - 10...1M | x | x | |||||||||||
| - 10...3M | x | x | |||||||||||
| - 10...5M | x | x | |||||||||||
| - 10...10M | x | x | |||||||||||
| - 10...20M | x | x | |||||||||||
| - 10...30M | x | x | |||||||||||
| - 10...50M | x | ||||||||||||
| Measurement | |||||||||||||
| - admittance | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - DCR | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - quality factor Q | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - impedance | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - inductance | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - conductance | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - phase angle θ | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - capacitance | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - relative permeability | x | x | x | x | x | x | x | ||||||
| - reactance | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - resistance | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - equivalent series resistance (ESR) | x | x | x | x | x | x | x | ||||||
| - susceptance | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - dissipation factor D | x | x | x | x | x | x | x | x | x | x | x | x | x |
| - relative permittivity | x | x | x | x | x | x | x |
Features:
- ALC function- Automatic Level Control
- auto component classification (MCT-6630-xx)
- ultra-high measuring speed < 3ms (MCT-6630-0x, MCT-6630-30, MCT-6630-50, MCT-6621-xx)
- BIN comparator function
- open circuit/short circuit/load correction function
- cable compensation 0/ 0,5/ 1/ 2 m
- 50 sets setting memory
- parallel or serial measurement
- Test Signal Voltage Level 10mV-2Vrms (resolution: 1mV)
- Test Signal Current Level 200μA-20mArms (resolution: 10μA)
- displays up to 4 component parameters
Equipment:
- mains cable
- measuring probe FX-000C19 (MCT-6630-xx)
| Symbol | Product description |
|---|---|
| MCT-6630-01 | LCR meter;Meas.accur:±0.05%;LCD TFT 7";6 digits;800x480 |
| MCT-6630-03 | LCR meter;Meas.accur:±0.05%;LCD TFT 7";6 digits;800x480 |
| MCT-6630-05 | LCR meter;Meas.accur:±0.05%;LCD TFT 7";6 digits;800x480 |
| MCT-6630-10 | LCR meter;Meas.accur:±0.05%;LCD TFT 7";6 digits;800x480 |
| MCT-6630-20 | LCR meter;Meas.accur:±0.05%;LCD TFT 7";6 digits;800x480 |
| MCT-6630-30 | LCR meter;Meas.accur:±0.05%;LCD TFT 7";6 digits;800x480 |
| MCT-6630-50 | LCR meter;Meas.accur:±0.05%;LCD TFT 7";6 digits;800x480 |
| MCT-6621-1 | LCR meter;Meas.accur:±0.05%;LCD TFT 4,3";800x480;<0.003s |
| MCT-6621-3 | LCR meter;Meas.accur:±0.05%;LCD TFT 4,3";800x480;<0.003s |
| MCT-6621-5 | LCR meter;Meas.accur:±0.05%;LCD TFT 4,3";800x480;<0.003s |
| MCT-6621-10 | LCR meter;Meas.accur:±0.05%;LCD TFT 4,3";800x480;<0.003s |
| MCT-6621-20 | LCR meter;Meas.accur:±0.05%;LCD TFT 4,3";800x480;<0.003s |
| MCT-6621-30 | LCR meter;Meas.accur:±0.05%;LCD TFT 4,3";800x480;<0.003s |
