LCR meter; PEAKTECH

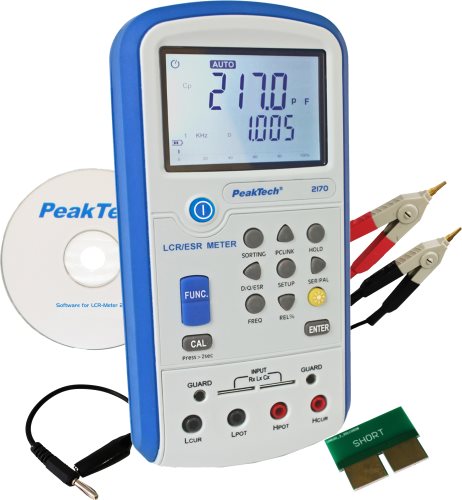

| Symbol: (PKT-P2170) | |
|---|---|
| Manufacturer | PEAKTECH |
| Type of meter | LCR meter |
| Measurement | frequency, inductance, phase angle θ, capacitance, resistance, equivalent series resistance (ESR), quality factor Q, dissipation factor D |
| Display | LCD |
| Display parameters | 4,5 digit (20000) |
| Illumination | yes |
| Bargraph | yes |
| Induct. measur. range | 20µH/200µH/2mH/20mH/200mH/2H/20H/2kH/20kH |
| Resistance measuring range | 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ |
| Interface | USB |
| Capacitance measuring range | 200pF...20mF |
| Power supply | battery LR03 AAA 1,5V x6 |
| Dimensions | 100x210x45mm |
| Software | included |
| Symbol: (PKT-P2175) | |
| Manufacturer | PEAKTECH |
| Type of meter | LCR meter |
| Measurement | continuity, frequency, inductance, resistance |
| Display | LCD |
| Display parameters | 4,5 digit (11000) |
| Illumination | yes |
| Continuity test | acoustic indication |
| Induct. measur. range | 11mH/110mH/11H/20H |
| Resistance measuring range | 110Ω/1.1kΩ/11kΩ/110kΩ/1.1MΩ/11MΩ/110MΩ |
| Capacitance measuring range | 11nF/110nF/1.1µF/11µF/110µF/1.1mF/11mF/110mF |
| Power supply | battery 6LR61 9V x1 |
| Dimensions | 82x182x55mm |
| Symbol: (PKT-P2180) | |
| Manufacturer | PEAKTECH |
| Type of meter | LCR meter |
| Measurement | continuity, frequency, inductance, AC voltage, DC voltage, AC current, DC current, resistance, temperature (external probe required) |
| Display | LCD |
| Display parameters | (5999) |
| Bargraph | yes |
| Continuity test | acoustic indication |
| Temp. range by probe | -20...1000°C |
| Bandwidth for AC voltage measurements | 40...400Hz |
| Induct. measur. range | 600µH/6mH/60mH/600mH/6H |
| AC current measuring range* | 600µA/6mA/60mA/600mA |
| Resistance measuring range | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
| Bandwidth for AC current measurements | 40...400Hz |
| DC current measuring range | 600µA/6mA/60mA/600mA |
| DC voltage measuring range | 600mV/6V/60V/600V/1kV |
| AC voltage measuring range | 6V/60V/600V/1kV |
| Frequency measuring range | 10...10MHz |
| Capacitance measuring range | 40nF/400nF/4µF/40µF/400µF/4000µF |
| Power supply | battery 6LR61 9V x1 |
| Dimensions | 82x182x55mm |
* 1) indirect measurement
Equipment:
| Symbol | Product description | Frequency measuring accuracy | Capacitance measuring accuracy | Inductance measuring accuracy | AC current measuring accuracy | DC current measuring accuracy | AC voltage measuring accuracy | Resistance measuring accuracy | DC voltage measuring accuracy | Temperature measuring accuracy (measurement with probe) |
|---|---|---|---|---|---|---|---|---|---|---|
| PKT-P2170 | LCR meter;LCD;4,5 digit (20000);200pF÷20mF;0.3%;Illumin:yes | - | - | - | - | - | - | - | - | - |
| PKT-P2175 | LCR meter;LCD;4,5 digit (11000);L accuracy:±(2%+0.2mH) | - | ±(3%+ 10 digit) | - | - | - | - | ±(1.2%+8 digit) | - | - |
| PKT-P2180 | LCR meter;LCD;(5999);R range:600Ω,6kΩ,60kΩ,600kΩ,6MΩ,60MΩ | ±(1.2%+3 digit) | ±(3%+ 5 digit) | ±(3% + 5 digit) | ±(1% + 3 digit) | ±(0.8% + 3 digit) | ±(0.8% + 4 digit) | ±(0.5%+2 digit) | ±(0.1% + 2 digit) | ±(3% + 5°C) |
